SQUARE D

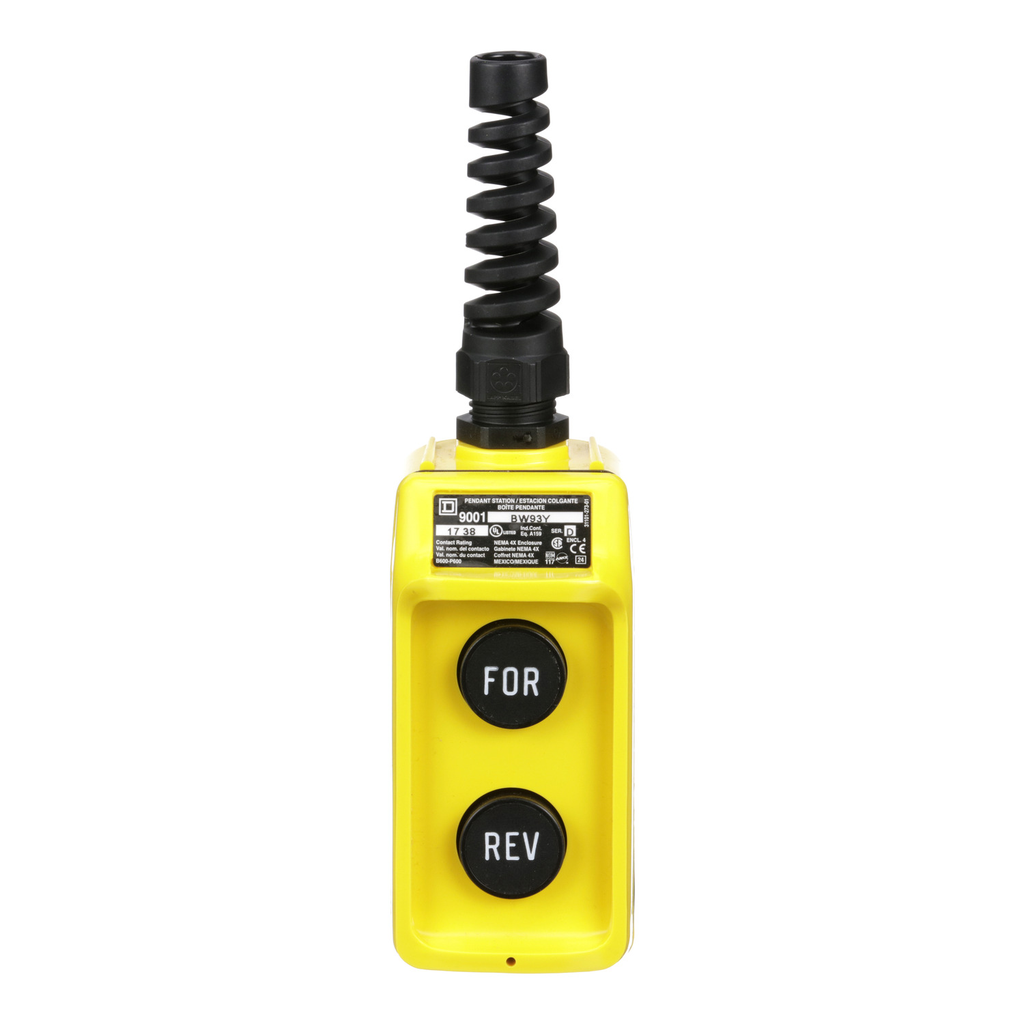

Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A

PENDANT STATION 600VAC 5A T-BW

SQD9001BW93Y 9001BW93Y 785901852902
178.67 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A-1
  • Cable Entry: 0.5 in
  • Country of Origin: Mexico
  • Enclosure Material: Flame-retardant PC Yellow
  • Warranty Length: 18 mth
9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistent and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.
QTY
  • Product Description
  • Features
  • Specifications
9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistent and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Contact Code Designation : P600 DC-13, Ue = 600 V, Ie = 5 A, B600 AC-13, Ue = 600 V, Ie = 5 A
    • Certificate Agency : CE, UL, CSA
    • Carbon Footprint Of The Distribution Phase [A4] : 0.1717551221455112, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.7 kg CO2 eq., 0.6975453509531829
    • Carbon Footprint Of The Installation Phase [A5] : 0.0023432290219667176, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 2 kg CO2 eq., 1.7327907045608053
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Cable Entry : 0.5 inch NPT conduit entrance
    • Contacts Type And Composition : 2 NO
    • Control Station Composition : 2 push-buttons 1 NO + 1 NO, white FORWARD-REVERSE
    • Device Short Name : 9001BW
    • Enclosure Material : Flame-retardant PC Yellow
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : pendant control station
    • Range Of Product : Harmony 9001BW
    • Returnability : Yes
    • Software Version : v6.2.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Pep Code : ENVPEP2503027EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-03-26
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 10
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Mexico, MX
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 49
    • Connections - Terminals : screw clamp terminals
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 317.515 g
    • Take-back : No
    • Warranty (In Months) : 18
    • Customs Code : 8537109170
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-60 °C, -25-60 °C
    • Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2.604434406681466
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R/4X
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2025-03-26
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : pendant control station
    • Range Of Product : Harmony 9001BW
  • ETIM
    • ETIM 8 : EC000234
    • ETIM 9 : EC000234
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
