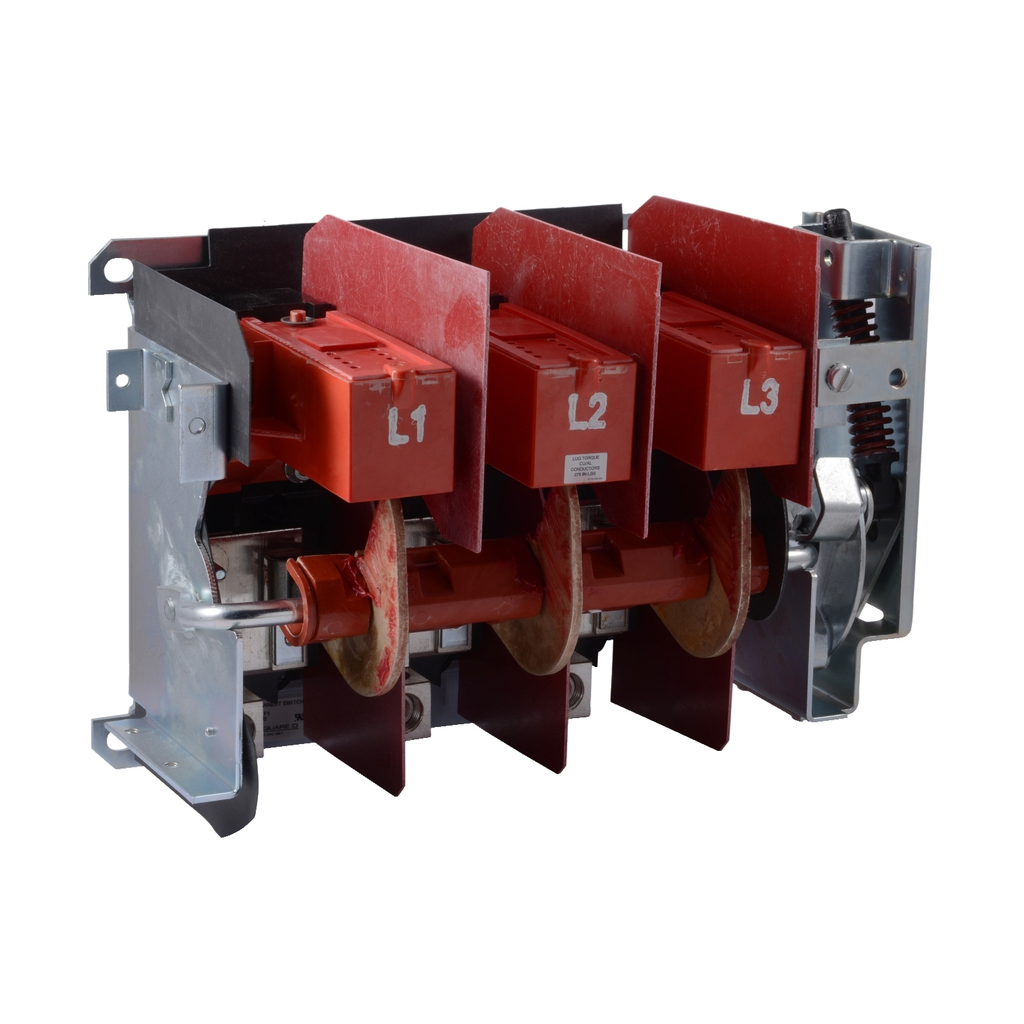

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 200 A disconnect switch is designed for flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for 6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Horse Power Rating : 40 hp 200 V AC, 60 hp 230 V AC, 125 hp 460 V AC, 150 hp 575 V AC, 40 hp 250 V DC
• Line Rated Current : 200 A
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Certificate Agency : UL Recognized, CSA
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2541
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Disconnector Device Type : non-fusible disconnect switch
• Energy Efficiency Optimized : False
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Mounting : flange rod variable depth
• Product Or Component Type : Disconnect Switch
• Provided Equipment : ordered separately
• Range Of Product : 9422T
• Returnability : No
• Sustainable Packaging : No
• Warranty In Months : 18
• Offer Owner Code : 190788
• Pn : 1
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : Disconnect Switch
• Provided Equipment : ordered separately
• Range Of Product : 9422T
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States
