SQUARE D

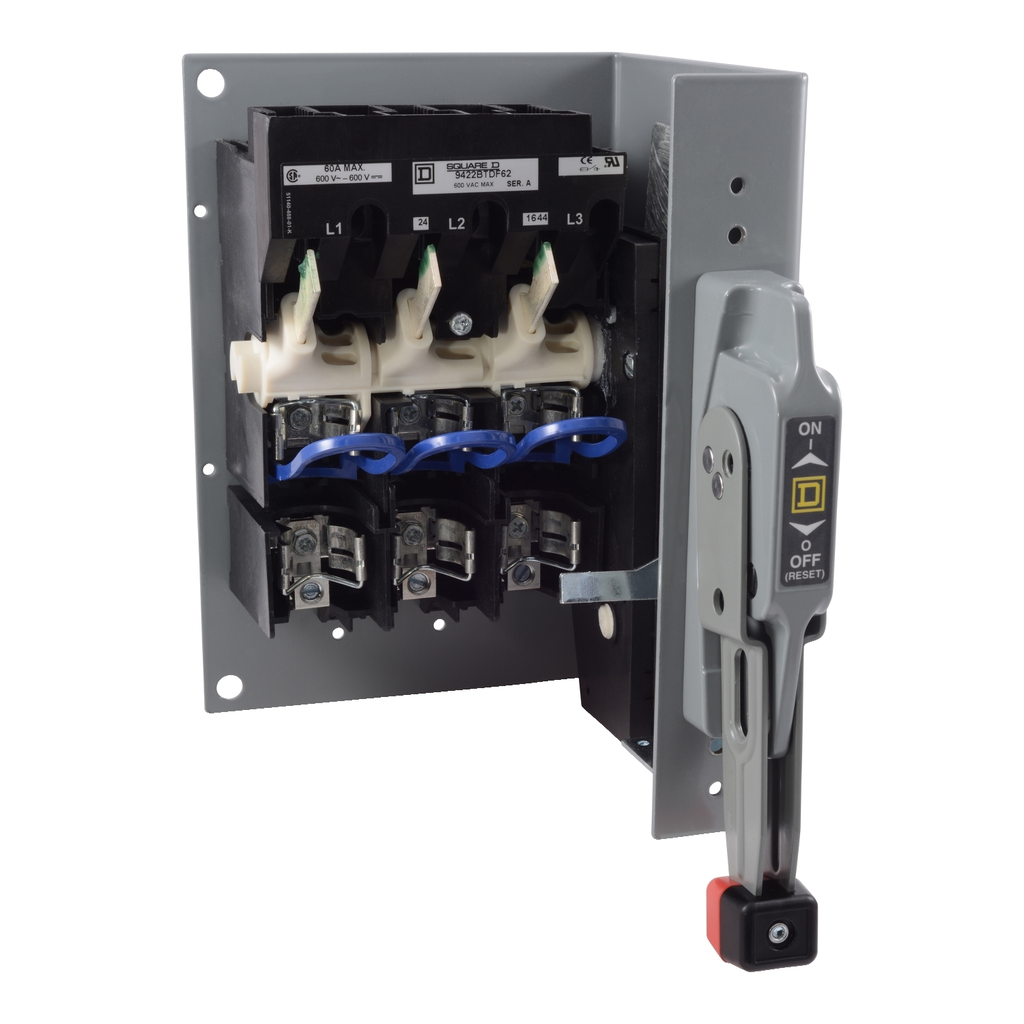

Operating mechanism, flange mounted, fixed depth assembly, 60A, 600 V, fuseholder, switch mechanism, 6 inch handle

DISCONNECT SWITCH 600VAC 60A N

SQD9422BTDF62 9422BTDF62 785901162629
741.61 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Operating mechanism, flange mounted, fixed depth assembly, 60A, 600 V, fuseholder, switch mechanism, 6 inch handle-1
  • Country of Origin: Mexico
  • Fuse Type: J
  • Warranty Length: 18 mth
Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class J fuses only. It has a rating of 60 Amps up to 600 V. This bracket mount mount disconnect switch is rated at 60 A. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 600 VDC. Disconnect switch lugs are rated for #14 AWG to #2 AWG copper or aluminum wire. Switch is UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class J fuses only. It has a rating of 60 Amps up to 600 V. This bracket mount mount disconnect switch is rated at 60 A. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 600 VDC. Disconnect switch lugs are rated for #14 AWG to #2 AWG copper or aluminum wire. Switch is UL component recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Recognized || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Provided Equipment : 6 in handle included
    • Product Mounting : bracket fixed depth
    • Associated Fuse Rating : 60 A 600 V
    • Fuse Type : J
    • Line Rated Current : 60 A
    • Maximum Horse Power Rating : 15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC
  • Specifications
    • Country of Origin : Mexico
    • Disconnector Device Type : fusible disconnect switch
    • Range Of Product : 9422T
    • Product Or Component Type : Disconnect Switch
