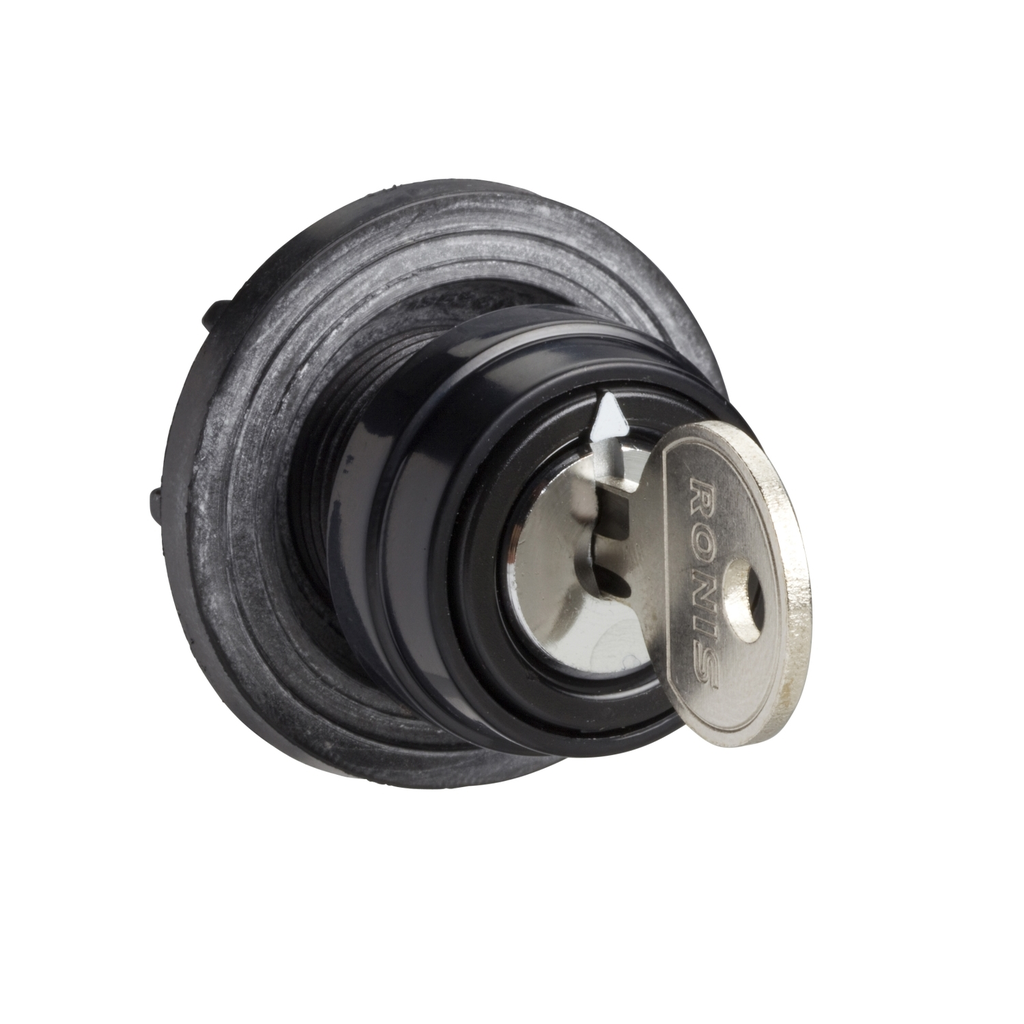

This Harmony K operating head has a 45 x 45 mm size. It has a screw clamp mounting mode. It is designed to fit in 16-22mm cutout, ensuring compatibility when installing in pre-existing machinery. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

• Environment
• Ambient Air Temperature For Operation : -25-55 °C
• Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6
• Shock Resistance : 30 gn IEC 68-2-27
• Ip Degree Of Protection : IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TC
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Net Weight : 0.063 kg
• Cad Overall Height : 45 mm
• Mechanical Durability : 1000000 cycles
• Compatibility Code : KBC
• Cad Overall Width : 45 mm
• Cad Overall Depth : 69 mm
• Specifications
• Range Of Product : Harmony Series K
• Presentation Of Legend : with metallic
• Product Or Component Type : cam switch operating head
• Component Name : KBC
• Type Of Operator : key 601A
• Switching Angle : 45 ° || 90 °
• Product Compatibility : front mounting bodies 12 and 20 A Ø 22 mm hole
• Cam Switch Head Type : with front plate 45 x 45 mm
• Rotary Handle Padlocking : without
