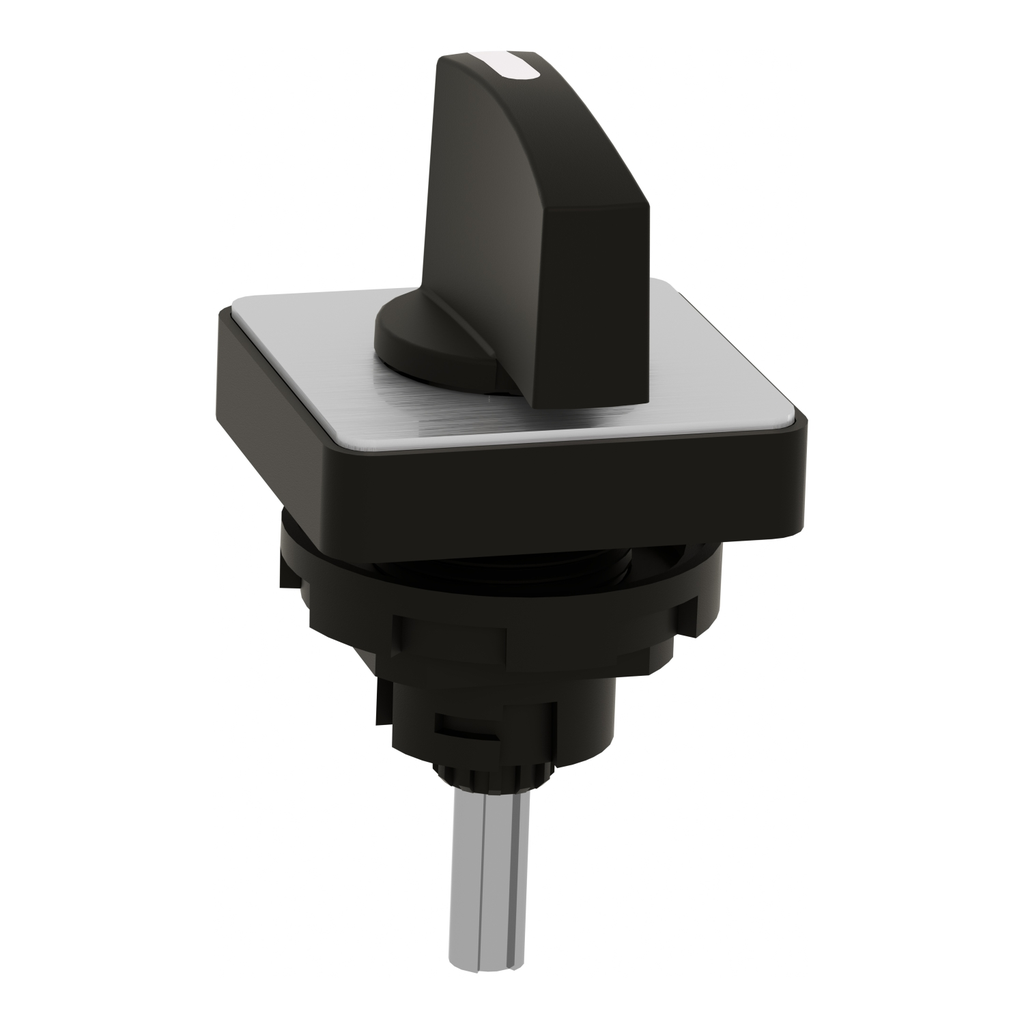

This Schneider Electric Harmony K operating head has a 45 x 45 mm size. It has a metallic color with black handle. This metal head operating head is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16 millimeter and 22 millimeter diameter units and has several selection functions. Simple and modular design to allow for easy installation. Designed to fit in 16-22mm cutout, ensuring compatibility when installing in pre-existing machinery. Sturdy plastic body resistant (strength) to shocks and corrosion. IP65 on its front part allow for installation in harsh (heavy) environment or outdoor.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 69 mm
• Cad Overall Height : 45 mm
• Cad Overall Width : 45 mm
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.04166706219443047, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.07258613084938326
• Carbon Footprint Of The Installation Phase A5 : 0.010231119222221965, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.0863552823638856
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Cam Switch Head Type : with front plate 45 x 45 mm
• Compatibility Code : KBC
• Component Name : KBC
• Mechanical Durability : 1000000 cycles
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : cam switch operating head
• Protective Treatment : TC
• Range Of Product : Harmony Series K
• Returnability : Yes
• Rotary Handle Padlocking : without
• Shock Resistance : 30 gn IEC 68-2-27
• Software Version : v6.3.0.1-4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Type Of Operator : Black handle 35 mm
• Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6
• Warranty In Months : 18
• Pep Code : ENVPEP2312055EN
• Database Version : 2024-01
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : The main purpose of the Harmony K1/K2 series of cam switches is to directly control simple machines and to provide process control in industry and buildings. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments including outdoors.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; Czech Republic, CZ
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Global, GLO
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 39
• Offer Owner Code : 190786
• Pn : 1
• Length Total : 35 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-55 °C, -25-55 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.2108395946299213
• Environmental Disclosure : ENVPEP2312055EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Product Compatibility : front mounting bodies 12 and 20 A Ø 22 mm hole
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2312055EN
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : cam switch operating head
• Range Of Product : Harmony Series K
• ETIM
• ETIM 8 : EC000222
• ETIM 9 : EC000222
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Czechia, Germany, France, Mexico, Sweden
• Overview Attributes
• Presentation Of Legend : with metallic
