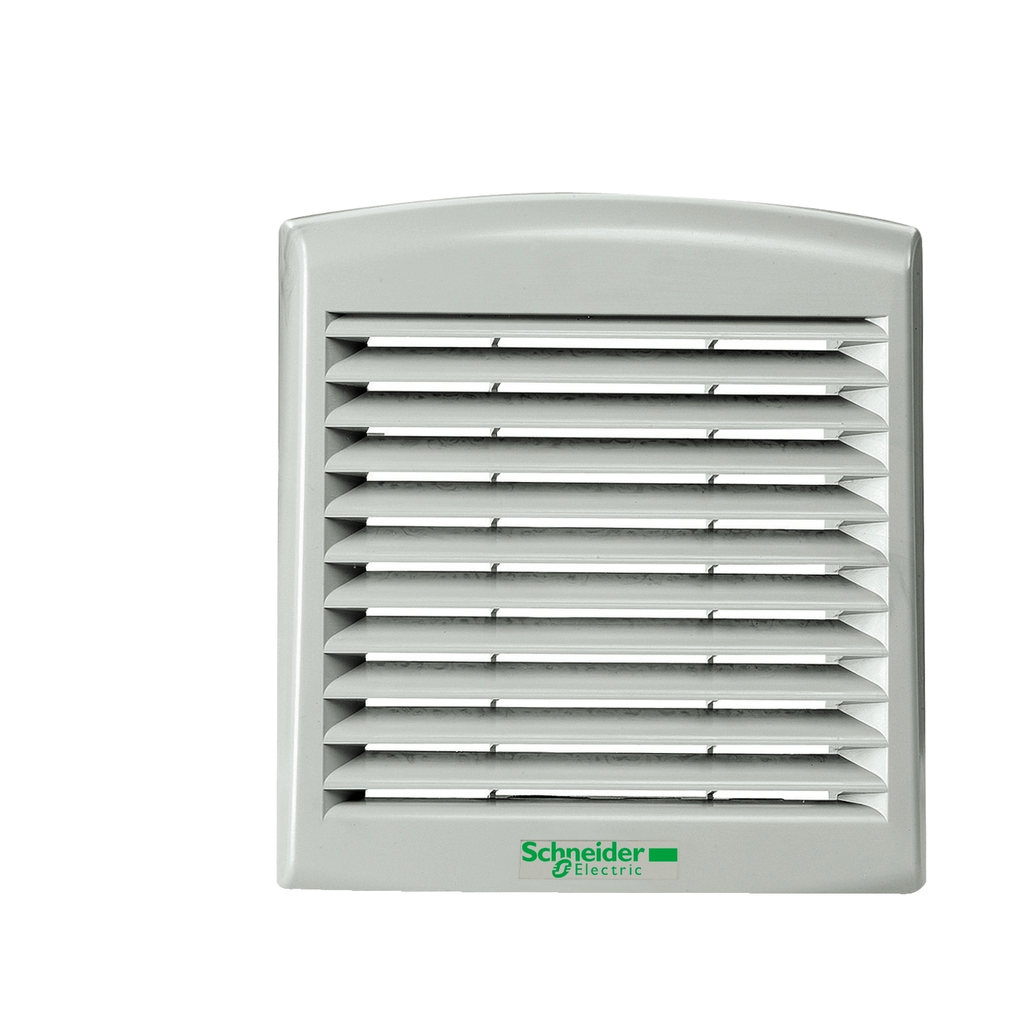

Outlet grille - plastic - cut out 291x291mm - ext. dim 336x316mm - IP54

OUTLET GRILL VHITH FILTER FS56

SQDNSYCAG291LPF NSYCAG291LPF 3606480151552
143.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Outlet grille - plastic - cut out 291x291mm - ext. dim 336x316mm - IP54-1
  • Material: Injected Thermoplastic
  • Warranty Length: 18 mth
Prisma iPM outlet grille plastic. 291 x 291 mm cut-out. External is 336 x 316 mm. Thermal management accessory. Compatible with Prisma iPM M side panel. Fixing mode by clips. Air flow is 350 m3/h. Injected thermoplastic (ASA PC). Grey RAL 7035 external part. IP30, IP54 and IP31 Protection.
QTY
  • Product Description
  • Specifications
Prisma iPM outlet grille plastic. 291 x 291 mm cut-out. External is 336 x 316 mm. Thermal management accessory. Compatible with Prisma iPM M side panel. Fixing mode by clips. Air flow is 350 m3/h. Injected thermoplastic (ASA PC). Grey RAL 7035 external part. IP30, IP54 and IP31 Protection.
  • Physical Attributes
    • Color : external part Gray RAL 7035)
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : 1 support frame, 1 external part, 1 G2 M1 synthetic standard filter
    • Fixing Mode : by screws, clipped
    • Carbon Footprint Of The Distribution Phase A4 : 1.6389597914821934, 2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.515691867879682
    • Carbon Footprint Of The Installation Phase A5 : 0.2438824838566755, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 4.664024277819225
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-04-13
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1916
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Cut Out Dimensions : 291 x 291 mm
    • Energy Efficiency Optimized : False
    • Material : injected thermoplastic (ASA PC)
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Name : ClimaSys CA
    • Product Or Component Type : outlet grille
    • Range : ClimaSys
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
    • Accessory Separate Part Category : thermal management accessory
    • Accessory Separate Part Destination : ClimaSys ventilation system
    • Silicone Free : Yes
    • Warranty In Months : 18
    • Pep Code : ENVPEP2012014_V2
    • Database Version : 2024-01
    • Pep Verification Date : 2024-06-09
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 17
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; France, FR
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; High voltage; 2020; Europe, EU-27
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 8
    • Offer Owner Code : 190789
    • Pn : 1
    • Height Nominal : external: 336 mm
    • Width Nominal : external: 316 mm
    • Certificate Agency : CSA
    • Other Technical Guide : CPTG001_EN
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Carbon Footprint : 8.062558421037776
    • Environmental Disclosure : ENVPEP2012014_V2
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2012014_V2
    • Pep Verification Date : 2024-06-09
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : outlet grille
  • ETIM
    • ETIM 8 : EC000331
    • ETIM 9 : EC000331
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, Costa Rica, Spain, France, United States
