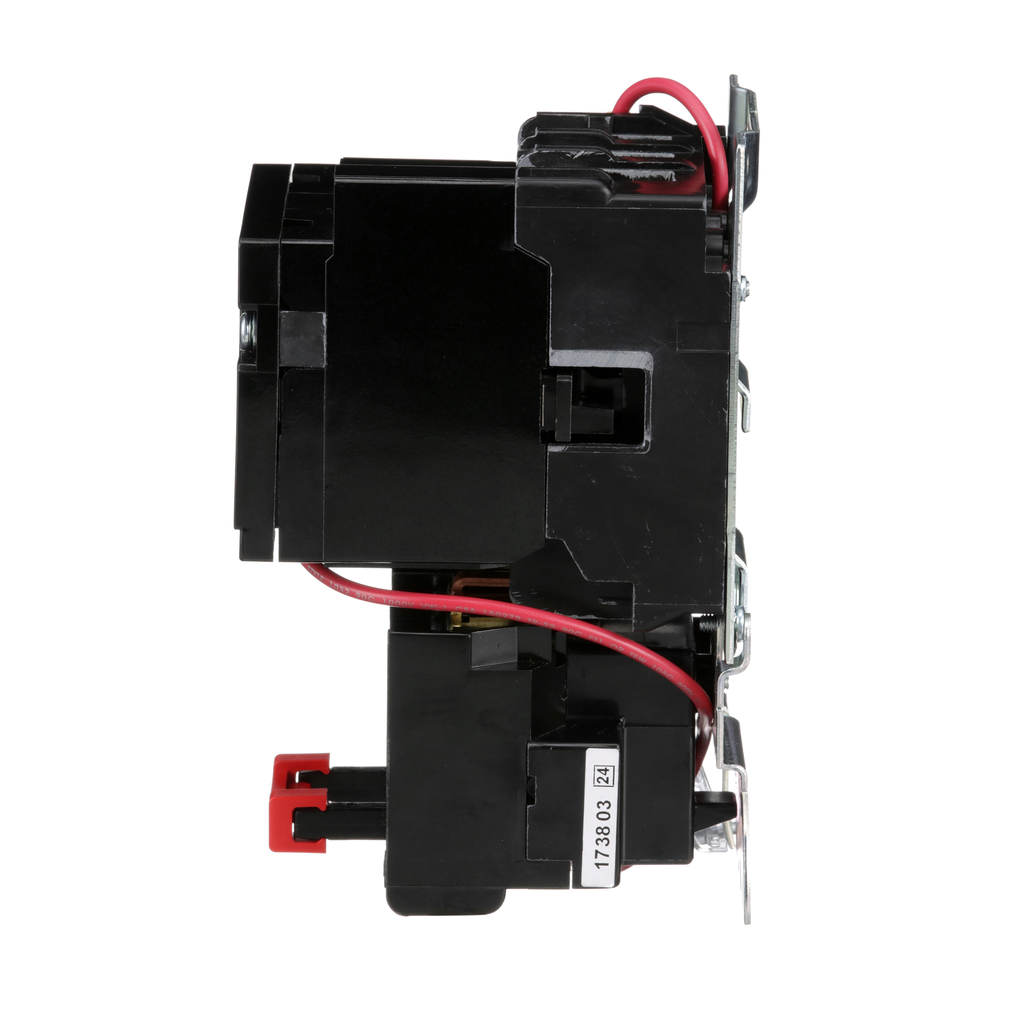

NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 208 VAC coil, open

NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 208 VAC coil, open

SQD8536SCO3V08S 8536SCO3V08S 785901492900
560.41 / EA
  • Certifications: CSA, NEMA, UL Listed
  • Contact Configuration: Without
  • Depth: 107 mm
  • Height: 172 mm
  • Line Rated Current: 27 A
  • NEMA: 1
  • Number of Phases: 3
  • Warranty Length: 18 mth
  • Width: 89 mm
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
  • Product Description
  • Specifications
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
  • Electrical Connection : screw clamp terminals
  • Motor Starter Type : non reversing
  • Maximum Width : 89 mm
  • Poles Description : 3P
  • Nema Size : 1
  • Maximum Depth : 107 mm
  • [Ue] Rated Operational Voltage : 600 V AC
  • Line Rated Current : 27 A
  • Thermal Overload Type : melting alloy 3
  • Control Circuit : separate control circuit
  • Control Type : no control units
  • Range Of Product : S
  • Auxiliary Contact Composition : without
  • Warranty : 18 months
  • [Uc] Control Circuit Voltage : 208 V AC 60 Hz
  • Phase : 3 phase
  • Product Certifications : UL Listed || CSA || NEMA
  • Nema Degree Of Protection : not rated (open device)
  • Product Or Component Type : motor starter
  • Rated Power In Hp : 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
  • Local Signalling : without pilot light
  • Maximum Height : 172 mm
