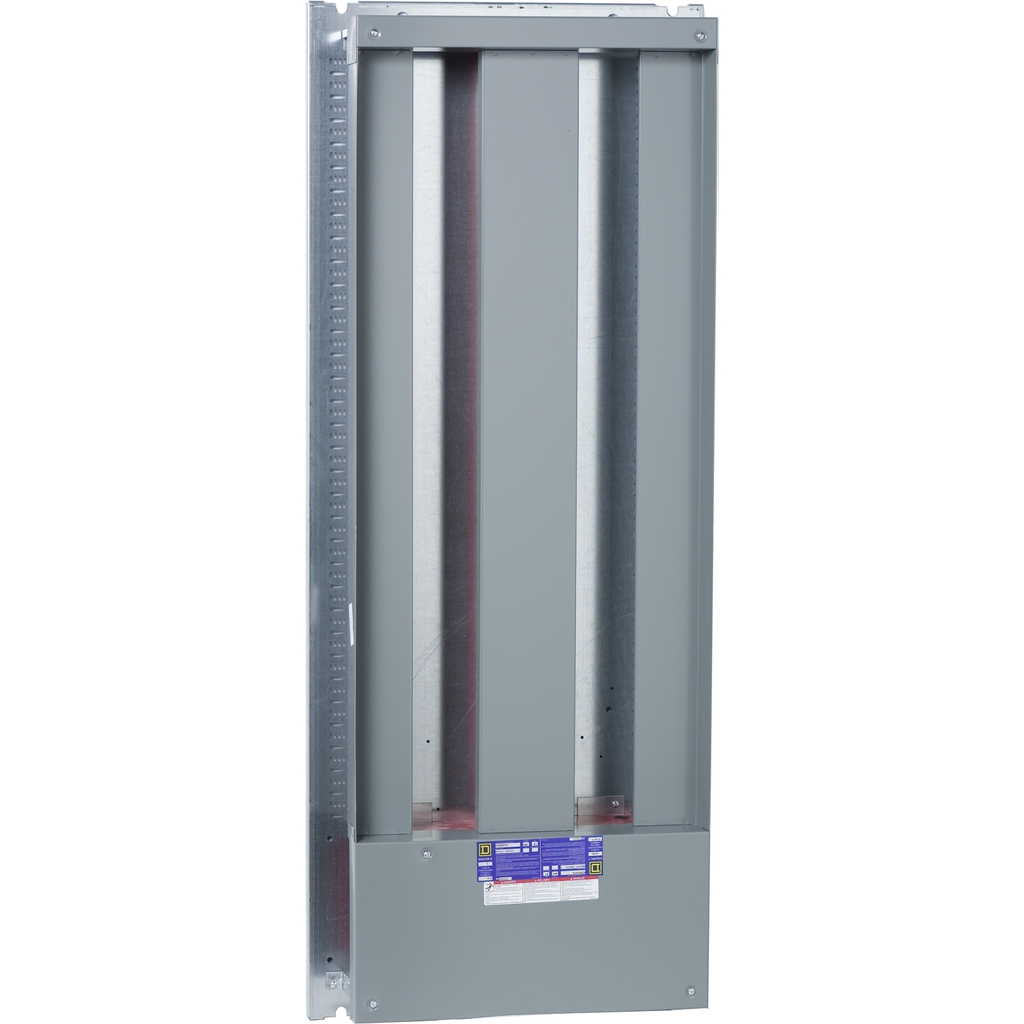

Interior, I-Line Panelboard, HCJ, 400A, main lugs, 99in CB space, for 32in W x 91in H x 9.5in D box, Al bus

PNLBD INTERIOR I-LINE 400A MLO

SQDHCJ50914 HCJ50914 785901237570
3274.72 / EA
http://schema.org/OutOfStock
Mayer-DDS-Interior, I-Line Panelboard, HCJ, 400A, main lugs, 99in CB space, for 32in W x 91in H x 9.5in D box, Al bus-1
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCJ I-Line panelboard interior is a 400A and has main lugs. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCJ I-Line panelboard interior is a 400A and has main lugs. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Carbon Footprint Of The Distribution Phase A4 : 0, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 68 kg CO2 eq., 68.49088483082049
    • Carbon Footprint Of The Installation Phase A5 : 0.11071154387626632, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 279 kg CO2 eq., 278.6060454007028
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 293 kg CO2 eq., 293.2702034455146
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Load Center Type : main lugs
    • Localisation On Device : interior
    • Package Weight Lbs : 47.174 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : enclosure HCJ 32 in 91 in 9.5 in
    • Product Or Component Type : interiors
    • Range Of Product : I-Line
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 28.47-28.47 N.m 13.3-151 mm² (AWG 6...300 kcmil)
    • Total Lifecycle Carbon Footprint : 640 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509033EN
    • Pep Verification Date : 2025-11-10
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Accommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use)
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 640.4778452209141
    • Environmental Disclosure : ENVPEP2509033EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509033EN
    • Pep Verification Date : 2025-11-10
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • Physical Attributes
    • Bar Length : 99 in
  • General Attributes
    • Product Or Component Type : interiors
    • Range Of Product : I-Line
