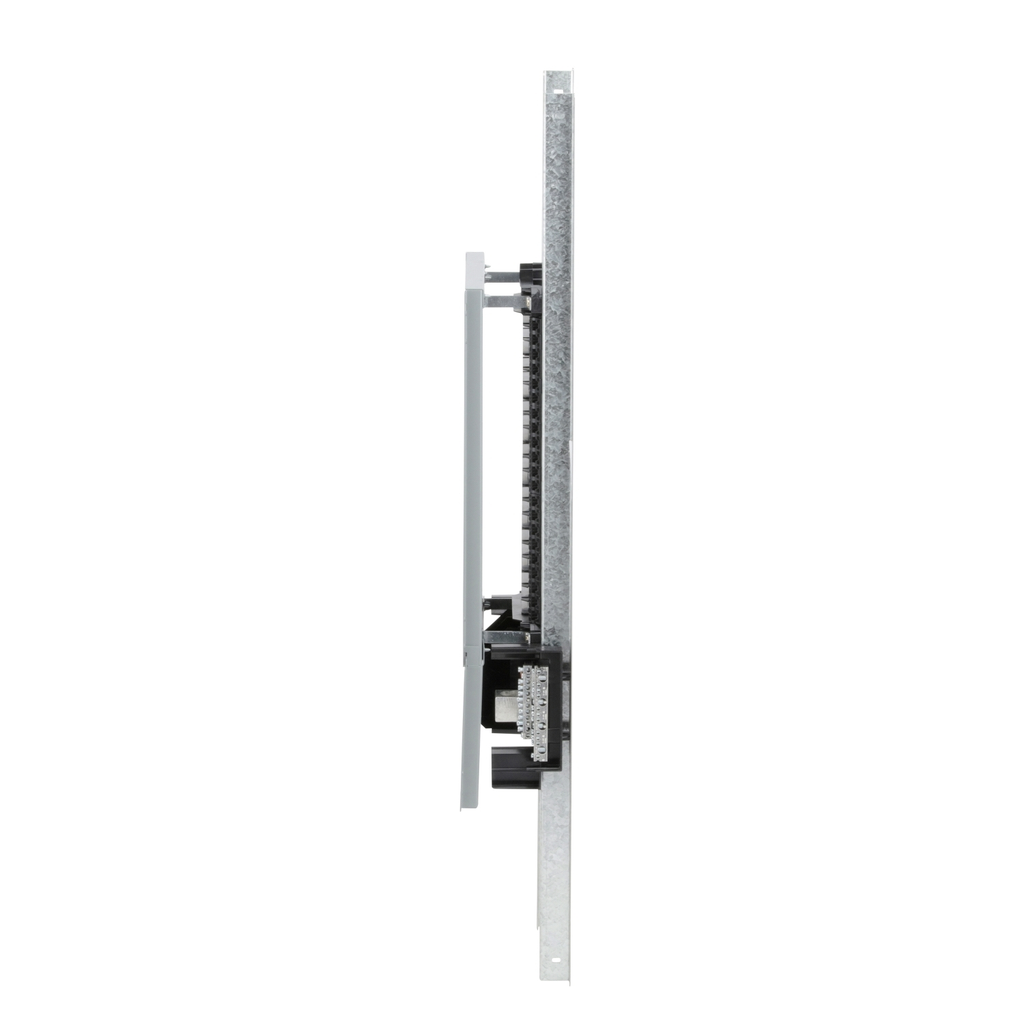

NQ Pnlbrd Interior 600A, 1 PH, 3 Wire, 42 CCT, Mn Lug, Cu

NQ Pnlbrd Interior 600A, 1 PH, 3 Wire, 42 CCT, Mn Lug, Cu

SQDNQ42L6C NQ42L6C 785901498315
2136.65 / EACH
  • Circuit Breaker Type: QHB, QOB, QOB-VH
  • Country of Origin: Mexico
  • Material: Copper
  • Number of Phases: 1
  • Package Weight: 25.900 lb
  • Voltage: 240 V, 48 V
  • Warranty Length: 18 mth
With 100-600A bus capacities, and optional fingersafe IP2X construction, NQ panelboards offer compact, flexible protection for 10-150 A, 240 Vac maximum circuits.
  • Product Description
  • Features
  • Specifications
With 100-600A bus capacities, and optional fingersafe IP2X construction, NQ panelboards offer compact, flexible protection for 10-150 A, 240 Vac maximum circuits.
  • Stadiums
  • Large Houses and Apartments
  • Commercial Buildings
  • Offices
  • Industrial Buildings
  • Dormitories and Hotels
  • Fingersafe IP2X per IEC 60529 construction
  • Power meters
  • QO and QOB accessories, including:  shunt trip; auxiliary contact; alarm switch; and handle padlock
  • Field installable main breaker accessories – shunt trip, alarm switch, and auxiliary contacts
  • Split bus
  • Increased side gutters 3", 6" and 12"
  • Wide variety of QO and QOB breaker types, including:  AFI; CAFI; GFI; EPD; HID; and HM
  • Keyed interlocks
  • “Semi-assembled” RTI kits, with easy to understand installation instructions, simplify adaptation to last minute, on site design changes
  • Broad range of solutions available from distributor stock to address electrical contractor’s need
  • Column Width Enclosures
  • Rail and dead front extension kits provide space for future addition of ready-to-install kits (extensions of 6", 12" and 18" available)
  • Equipment space
  • Blank spaces come prepared to accept 1, 2, or 3 pole QO or QOB breakers (no straps to assemble)
  • SurgeLoc Surge Protective Devices
  • Copper and aluminum, mechanical and crimp lugs
  • Contactors
  • Locks (most common brands)
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Product Environmental Profile : Available
    • Product End Of Life Instructions : Need no specific recycling operations
    • RoHS (Date Code: YYWW) : Compliant  - since  1419  -  Schneider Electric declaration of conformity
  • Main
    • Material : Copper
    • Load Center Type : Main lugs
    • Circuit Breaker Type : QOB-VH || QOB || QHB
  • Environment
    • Standards : UL || CSA
  • Contractual Warranty
    • Warranty Period : 18 months
  • Complementary
    • System Voltage : 240 V AC || 48 V DC
    • Enclosure Nominal Width : 20 in
    • Enclosure Nominal Height : 62 in
    • Number Of Spaces : 42
    • Wiring Configuration : 3-wire
    • Line Rated Current : 600 A
    • Enclosure Nominal Depth : 5.75 inFor NEMA 1 enclosure || 6.5 inFor NEMA 3R/5/12 enclosure
    • Phase : 1 phase
  • Ordering and Shipping Details
    • Country Of Origin : MX
    • Package Weight(Lbs) : 25.900000000000002
    • Category : 09151 - NQ RTA PANELBOARDS
    • Number Of Units In Package : 1
    • GTIN : 00785901498315
    • Returnability : Y
    • Discount Schedule : PE1A
