Panelboard interior, NF, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277 VAC, bolt on

PNLBD INT NF CW 250A MLO 42CKT

SQDNF8442L2C NF8442L2C 785901726142
4946.46 / EACH
http://schema.org/OutOfStock

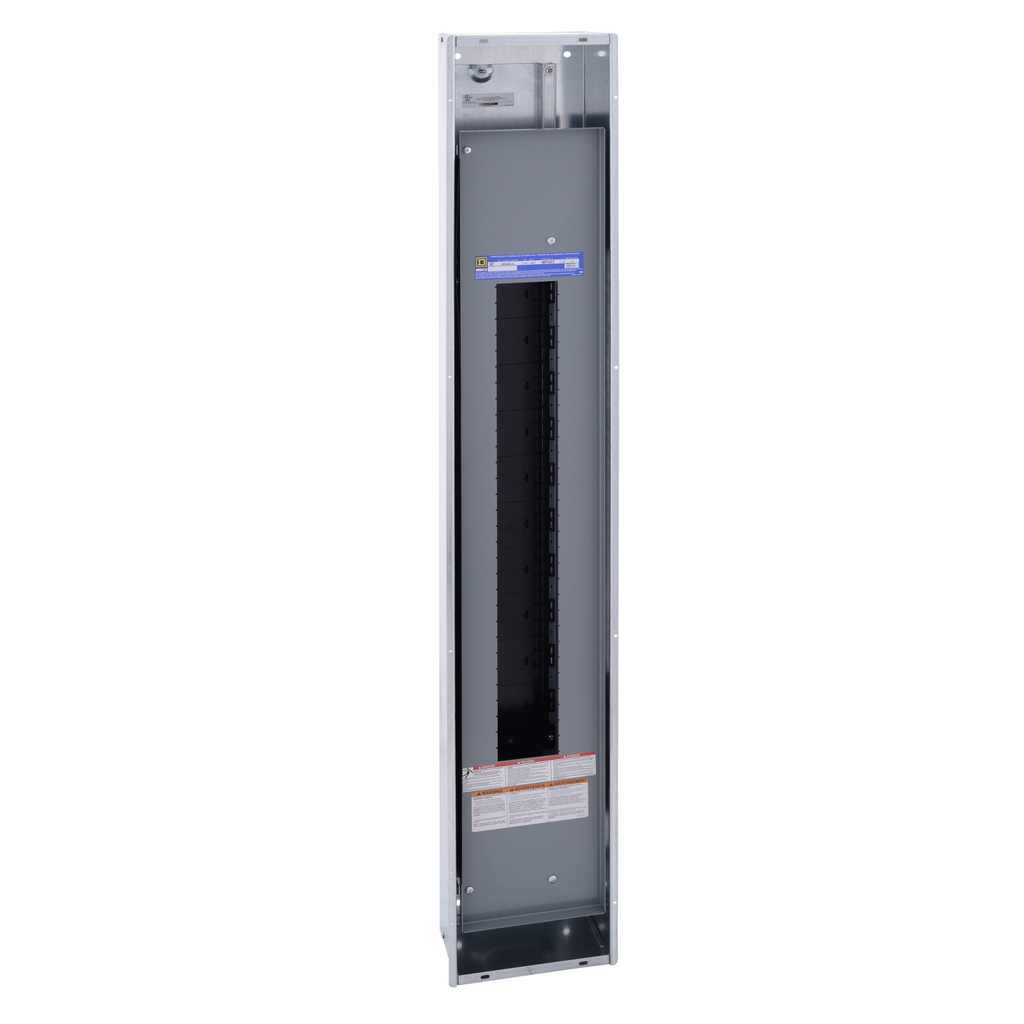

Mayer-DDS-Panelboard interior, NF, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277 VAC, bolt on-1
  • Country of Origin: Mexico
  • Enclosure Height: 71 in
  • Enclosure Width: 8.625 in
  • Number of Spaces: 42
  • Warranty Length: 18 mth
Single row NF panelboard designed primarily for lighting and appliance branch circuit protection in commercial and industrial buildings. Designed with a column-width layout, the single row NF panelboard offers a space-efficient solution ideal for installations where footprint is a critical consideration. Its single-row configuration offers a space-saving design, making it ideal for installations with limited wall space while maintaining ease of access for maintenance and upgrades. Engineered for streamlined performance, it provides reliable circuit protection and load management by distributing electrical power from a main source to multiple branch circuits. The panelboard supports a wide range of circuit breakers and accessories, ensuring flexibility and scalability for future expansion. This Single row NF panelboard is rated for three phase, 4 wire and 225A. This main lug interior has 42 number of poles and copper bus as standard. This NF panelboard interior is UL listed for applications in the USA and Canada.
QTY
  • Product Description
  • Features
  • Specifications
Single row NF panelboard designed primarily for lighting and appliance branch circuit protection in commercial and industrial buildings. Designed with a column-width layout, the single row NF panelboard offers a space-efficient solution ideal for installations where footprint is a critical consideration. Its single-row configuration offers a space-saving design, making it ideal for installations with limited wall space while maintaining ease of access for maintenance and upgrades. Engineered for streamlined performance, it provides reliable circuit protection and load management by distributing electrical power from a main source to multiple branch circuits. The panelboard supports a wide range of circuit breakers and accessories, ensuring flexibility and scalability for future expansion. This Single row NF panelboard is rated for three phase, 4 wire and 225A. This main lug interior has 42 number of poles and copper bus as standard. This NF panelboard interior is UL listed for applications in the USA and Canada.
  • Connections Terminals
    • lug line AWG 6...300 kcmil aluminium/copper
    • lug neutral AWG 6...300 kcmil aluminium/copper
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Phase
    • 3 phase 4 wires
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
  • Persona Type Ids
    • EU
    • LC
    • OM
  • Tightening Torque
    • 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0)
    • 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0)
    • 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil)
    • 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil)
    • 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
  • UE Rated Operational Voltage
    • 600Y/347 V AC
  • Physical Attributes
    • Enclosure Nominal Height : 71 in
    • Enclosure Nominal Width : 8.625 in
  • Complementary Attributes
    • IU Rated Interrupted Current : 65 kA
  • Important Information Attributes
    • B2B Bullet Point 1 : Interiors are field convertible to top or bottom feed
    • B2B Bullet Point 2 : UL Listed and CSA rated to 600 A at 240, 208Y/120, and 120/240 Vac
    • B2B Bullet Point 3 : NEMA Type 1, 2, 3R, 4, 4X, 5, and 12 enclosures
    • B2B Bullet Point 4 : Suitable for use as service equipment
    • B2B Bullet Point 5 : Copper and aluminum, mechanical and crimp lugs
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2532
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Panel components
    • H And D Enrichment Class 4 : Panelboard interior
    • Energy Efficiency Optimized : False
    • Load Center Type : main lugs
    • Number Of Spaces : 42
    • Package Weight Lbs : 38.6 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Returnability : No
    • Sustainable Packaging : No
    • IU Rated Interrupted Current : 65 kA
    • Pep Code : ENVPEP2303003
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=447835&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2303003
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303003
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
