Panelboard interior, NF, main breaker, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277VAC bolt on, J Frame

Panelboard interior, NF, main breaker, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277VAC bolt on, J Frame

SQDNF8442M2JDC NF8442M2JDC 785901915881
6275.43 / EACH
http://schema.org/OutOfStock

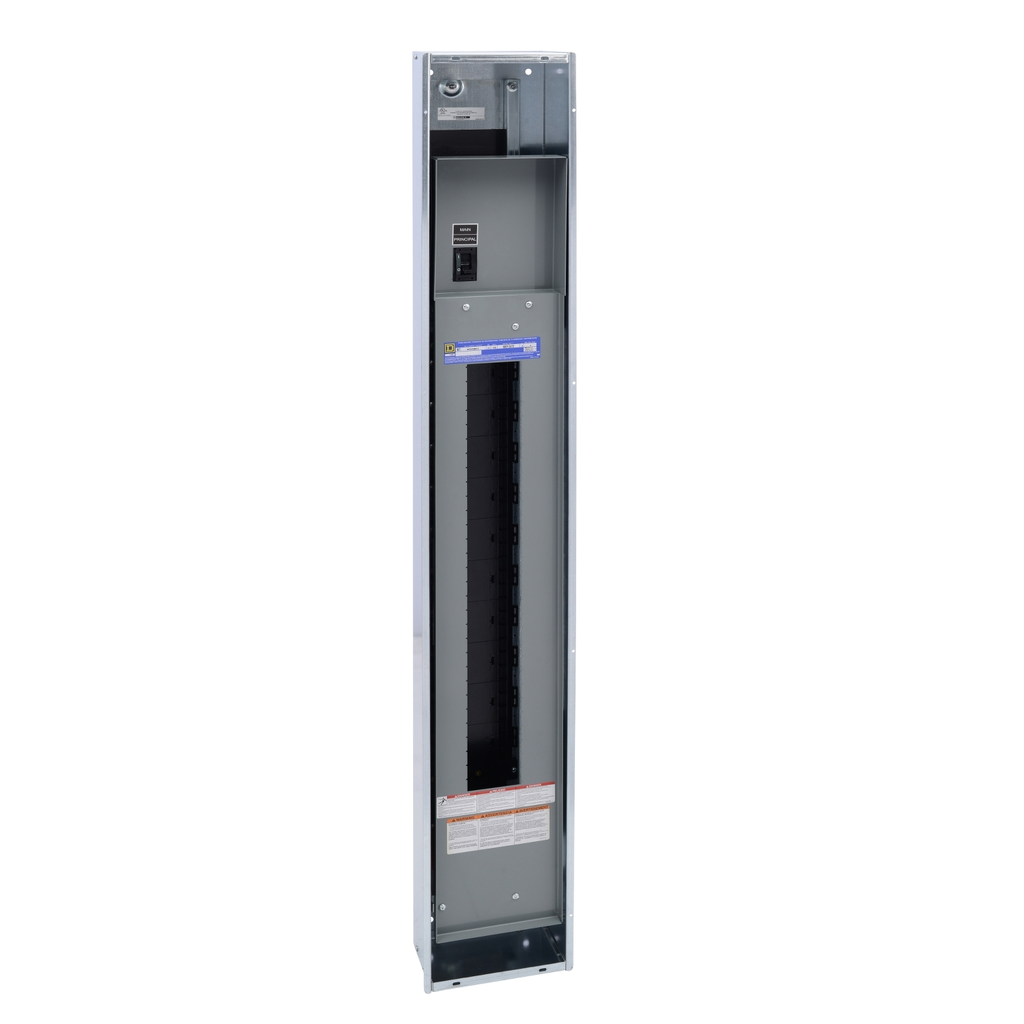

Mayer-DDS-Panelboard interior, NF, main breaker, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277VAC bolt on, J Frame-1
  • Country of Origin: Mexico
  • Enclosure Height: 85 in
  • Enclosure Width: 8.625 in
  • Material: Copper
  • Number of Spaces: 42
  • Warranty Length: 18 mth
Single row NF panelboard designed primarily for lighting and appliance branch circuit protection in commercial and industrial buildings. Designed with a column-width layout, the single row NF panelboard offers a space-efficient solution ideal for installations where footprint is a critical consideration. Its single-row configuration offers a space-saving design, making it ideal for installations with limited wall space while maintaining ease of access for maintenance and upgrades. Engineered for streamlined performance, it provides reliable circuit protection and load management by distributing electrical power from a main source to multiple branch circuits. The panelboard supports a wide range of circuit breakers and accessories, ensuring flexibility and scalability for future expansion. This Single row NF panelboard is rated for three phase, 4 wire and 225A. This main breaker interior has 42 number of poles and copper bus as standard. Used up to 225A Powerpact J-Frame circuit breaker. This NF panelboard interior is UL listed for applications in the USA and Canada.
QTY
  • Product Description
  • Features
  • Specifications
Single row NF panelboard designed primarily for lighting and appliance branch circuit protection in commercial and industrial buildings. Designed with a column-width layout, the single row NF panelboard offers a space-efficient solution ideal for installations where footprint is a critical consideration. Its single-row configuration offers a space-saving design, making it ideal for installations with limited wall space while maintaining ease of access for maintenance and upgrades. Engineered for streamlined performance, it provides reliable circuit protection and load management by distributing electrical power from a main source to multiple branch circuits. The panelboard supports a wide range of circuit breakers and accessories, ensuring flexibility and scalability for future expansion. This Single row NF panelboard is rated for three phase, 4 wire and 225A. This main breaker interior has 42 number of poles and copper bus as standard. Used up to 225A Powerpact J-Frame circuit breaker. This NF panelboard interior is UL listed for applications in the USA and Canada.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Enclosure Nominal Height : 85 in
    • Enclosure Nominal Width : 8.625 in
  • Complementary Attributes
    • Line Rated Current : 225 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Tightening Torque : 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil), 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
    • Certificate Agency : CSA, UL
    • Carbon Footprint Of The Distribution Phase [A4] : 11.1135637895, 11 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 94 kg CO2 eq., 94.0229029174
    • Carbon Footprint Of The Installation Phase [A5] : 3.3436211838, 3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 565 kg CO2 eq., 565.3435658072
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 45 kg CO2 eq., 44.7034603503
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : N
    • Stocking Flag : Y
    • Weee Scope : Out
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Circuit Breaker Type : EDB/EDG/EDJ
    • Energy Efficiency Optimized : False
    • Load Center Type : main breaker
    • Material : copper
    • Number Of Spaces : 42
    • Phase : 3 phase 4 wires
    • Product Availability : Stock - Normally stocked in distribution facility
    • Returnability : No
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 719 kg CO2 eq.
    • Pep Code : ENVPEP2303003EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-07-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67 UL 50E and CSA22.2
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Consumption On Product Lifetime, In Kwh : 100.21
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
    • Recyclability Potential, In % : 94
    • Height Nominal : 71 in
    • Width Nominal : 10.44 in
    • [Ue] Rated Operational Voltage : 600Y/347 V AC
    • [Iu] Rated Interrupted Current : 65 kA
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 38.555 kg
    • Take-back : No
    • Warranty (In Months) : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 718.5271140483
    • Environmental Disclosure : ENVPEP2303003EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303003EN
    • Pep Verification Date : 2023-07-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 3 phase 4 wires
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
