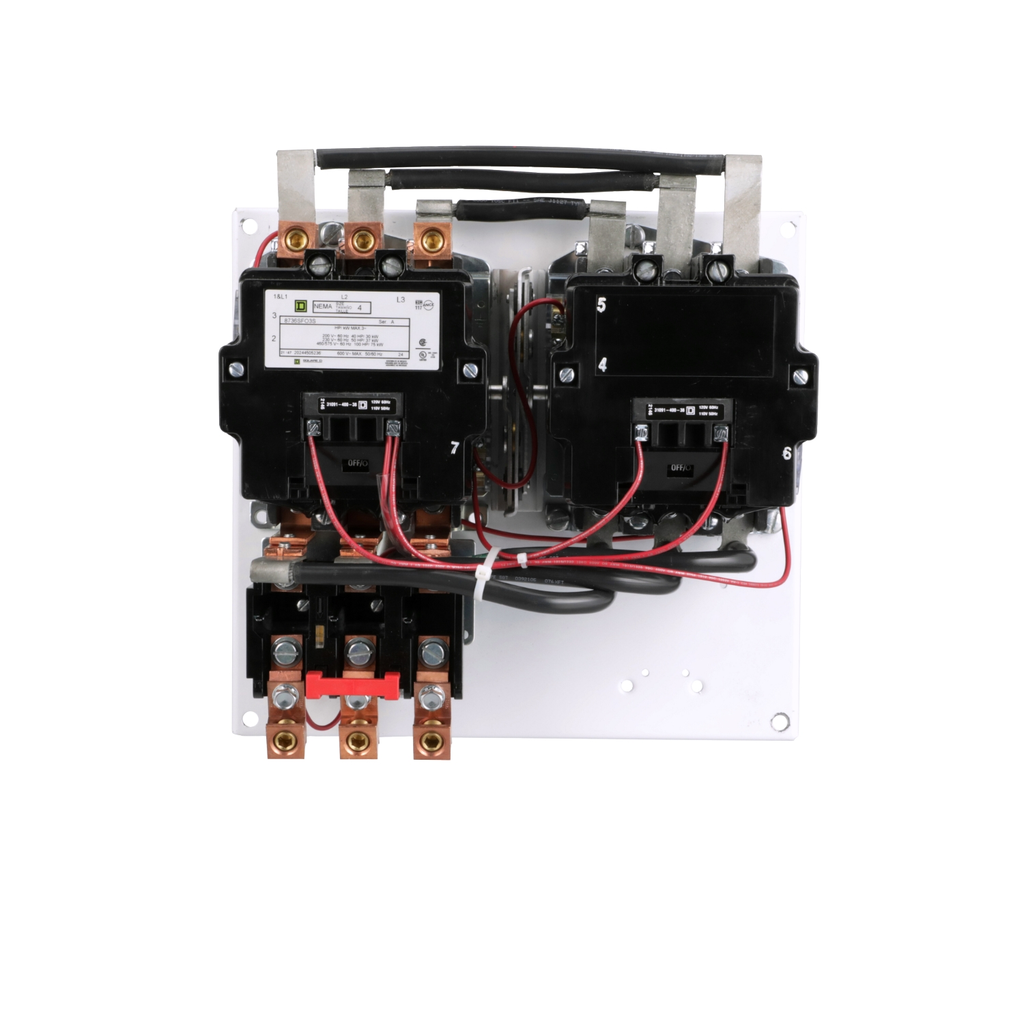

NEMA starter, Type S, reversing, horizontal, Size 4, 135A, 100HP @ 575VAC, 10kA SCCR, 3 phase, 3 pole, melting alloy overload, 120VAC coil, open [TAA]

REVERSING STARTER 600VAC 135A

SQD8736SFO3V02S 8736SFO3V02S 785901842026
10016.03 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA starter, Type S, reversing, horizontal, Size 4, 135A, 100HP @ 575VAC, 10kA SCCR, 3 phase, 3 pole, melting alloy overload, 120VAC coil, open [TAA]-2
  • Warranty Length: 18 mth
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay. Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements. This reversing starter is arranged horizontally. This 3 pole NEMA Size 4 reversing starter has an 135 ampere rating. This three phase NEMA Size 4 reversing starter has 40 HP at 200 VAC, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA reversing starter is an open device without an enclosure. This starter is 14.59 inches tall, 14.25 inches wide and 7.00 inches deep. A wide variety of accessories are available for Type S starters. Type S reversing NEMA motor starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay. Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements. This reversing starter is arranged horizontally. This 3 pole NEMA Size 4 reversing starter has an 135 ampere rating. This three phase NEMA Size 4 reversing starter has 40 HP at 200 VAC, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA reversing starter is an open device without an enclosure. This starter is 14.59 inches tall, 14.25 inches wide and 7.00 inches deep. A wide variety of accessories are available for Type S starters. Type S reversing NEMA motor starters are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In HP : 40 HP 200 V AC, 40 HP 200 V AC, 40 HP 200 V AC, 50 HP 230 V AC, 50 HP 230 V AC, 50 HP 230 V AC, 100 HP 460 V AC, 100 HP 460 V AC, 100 HP 460 V AC, 100 HP 575 V AC, 100 HP 575 V AC, 100 HP 575 V AC
    • UC Control Circuit Voltage : 110 V AC 50 Hz, 110 V AC 50 Hz, 110 V AC 50 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz
    • UE Rated Operational Voltage : 600 V AC, 600 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Thermal Overload Type : melting alloy 3, melting alloy 3
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-19
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Will not be Compliant
    • ROHS EUR Full Compliance Status : Not compliant
    • ROHS EUR Full Compliance Status Id : NOT_COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Control Units : no control units
    • Energy Efficiency Optimized : False
    • Local Signalling : without pilot light
    • Motor Starter Type : reversing
    • Package Weight Lbs : 24.154 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : starter
    • Range Of Product : S
    • Returnability : No
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Not compliant
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 4
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • General Attributes
    • Product Or Component Type : starter
    • Range Of Product : S
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Compliance : TAA
