SQUARE D

NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting

COIL 240V NEMA SIZE 3

SQD3107440047 3107440047 785901110880
364.77 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting-1
  • Country of Origin: Mexico
  • Depth: 2.093 mm
  • Warranty Length: 18 mth

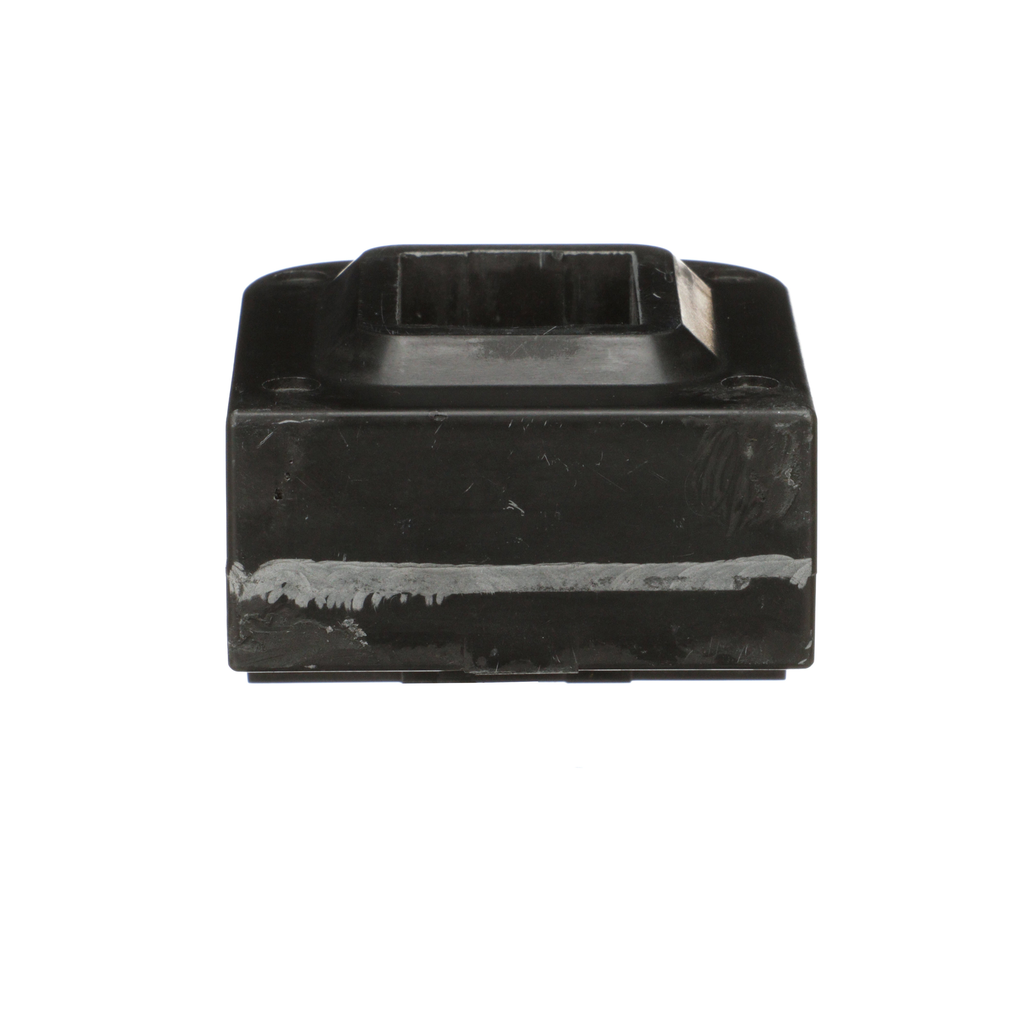

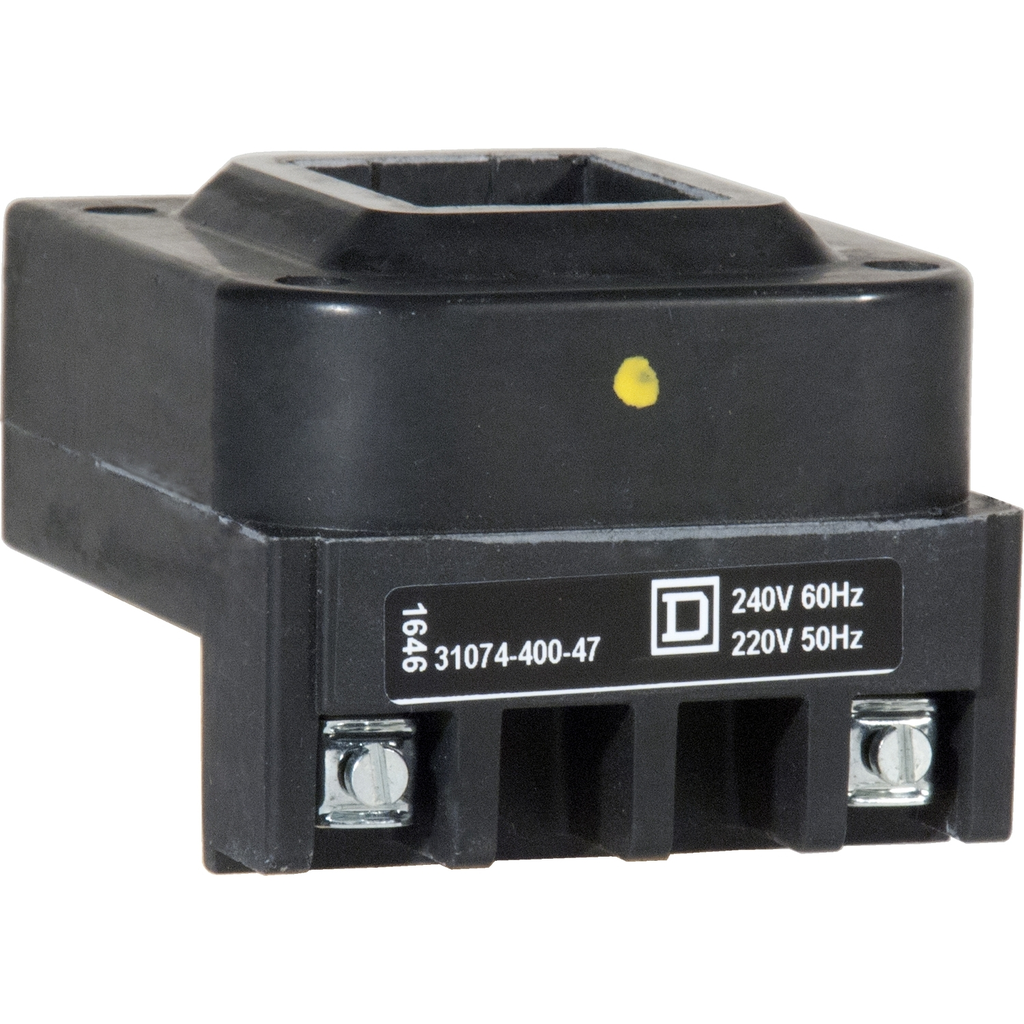

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
QTY
  • Product Description
  • Specifications
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
  • Complementary Attributes
    • Ue Rated Operational Voltage : 240 V AC 60 Hz, 220 V AC 50 Hz
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SC
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Average Consumption : 47 VA, 46 VA
    • Inrush Power In Va : 700 VA, 678 VA
    • Accessory Separate Part Destination : class 8502 type SE contactor, class 8903 type SQ lighting contactor, class 8910 type DPA12/SYD138 contactor
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy Weee Scope : Out
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Not Applicable/Out of Scope
    • Rohs Eur Full Compliance Status : Not Applicable/Out of Scope
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : coil
    • Returnability : Yes
    • Sustainable Packaging : No
    • Warranty In Months : 18
    • Offer Owner Code : 190788
    • Height Nominal : 73 mm
    • Width Nominal : 65 mm
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Eu Rohs Directive : Not Applicable/Out of Scope
    • Nema Size : 3
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • General Attributes
    • Product Or Component Type : coil
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 2.093 mm
