SQUARE D

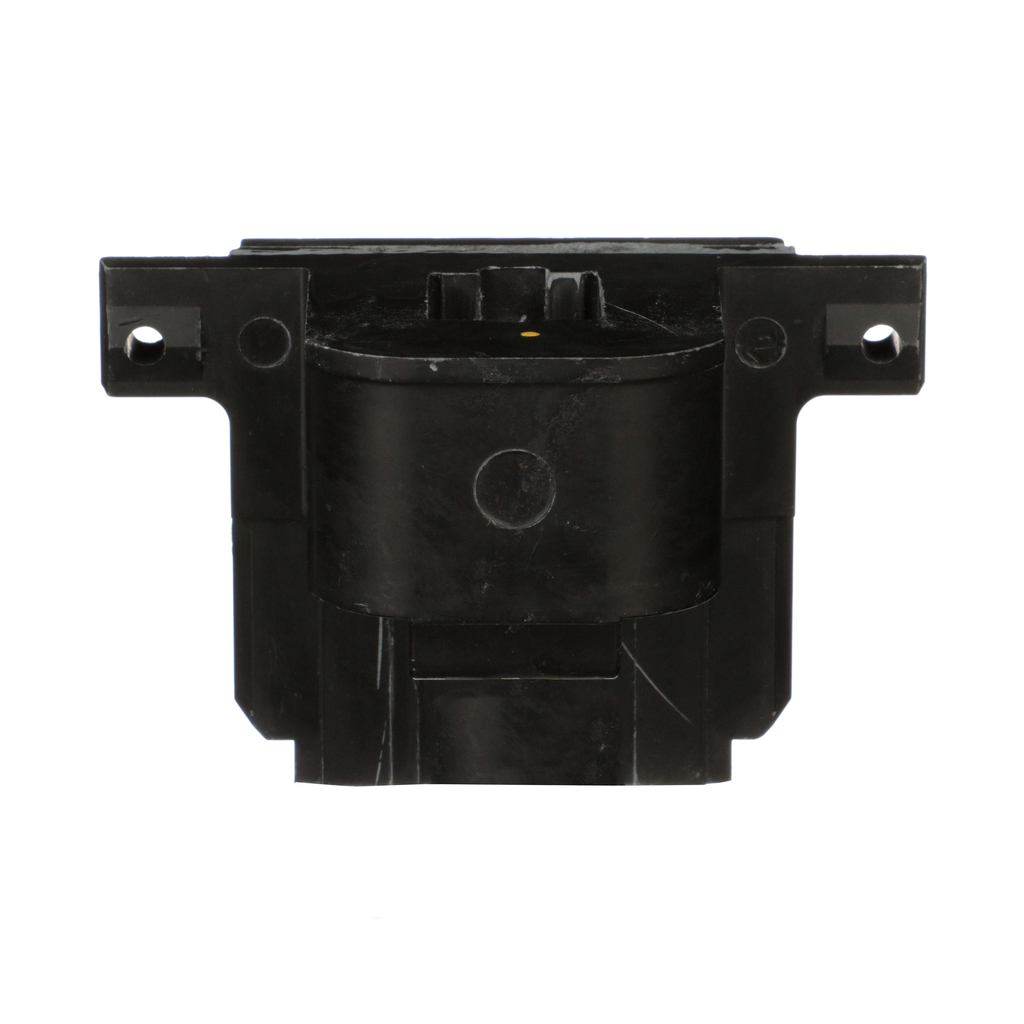

NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starters, 8903SP lighting

COIL 240VAC NEMA SIZE 2

SQD3106340947 3106340947 785901504979
141.48 / EA
http://schema.org/OutOfStock
NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starters, 8903SP lighting
  • Depth: 61.7 mm
  • Warranty Length: 18 mth
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 311 VA. It has an average sealed consumption of 37 VA. This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
QTY
  • Product Description
  • Features
  • Specifications
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 311 VA. It has an average sealed consumption of 37 VA. This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
  • Features
    • Customizable with hundreds of combinations
    • Robust design and reliable build
    • Easy to Service with replaceable parts
    • Available in NEMA Sizes 00 to 7
    • 600 Volts maximum
  • Complementary Attributes
    • Ue Rated Operational Voltage : 240 V AC 60 Hz220 V AC 50 Hz
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Average Consumption : 36 VA, 37 VA
    • Inrush Power In Va : 296 VA, 311 VA
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-09-04
    • Return Indicator : Y
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Weee Scope : Out
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Not Applicable/Out of Scope
    • Rohs Eur Full Compliance Status : Not Applicable/Out of Scope
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : coil
    • Returnability : Yes
    • Sustainable Packaging : No
    • Height Nominal : 66.2 mm
    • Width Nominal : 101.1 mm
    • Accessory / Separate Part Destination : class 8502 type SD contactorclass 8903 type SP lighting contactor
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8504508000
    • Warranty In Months : 18
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Eu Rohs Directive : Not Applicable/Out of Scope
    • Nema Size : 2
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • General Attributes
    • Product Or Component Type : coil
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 61.7 mm
