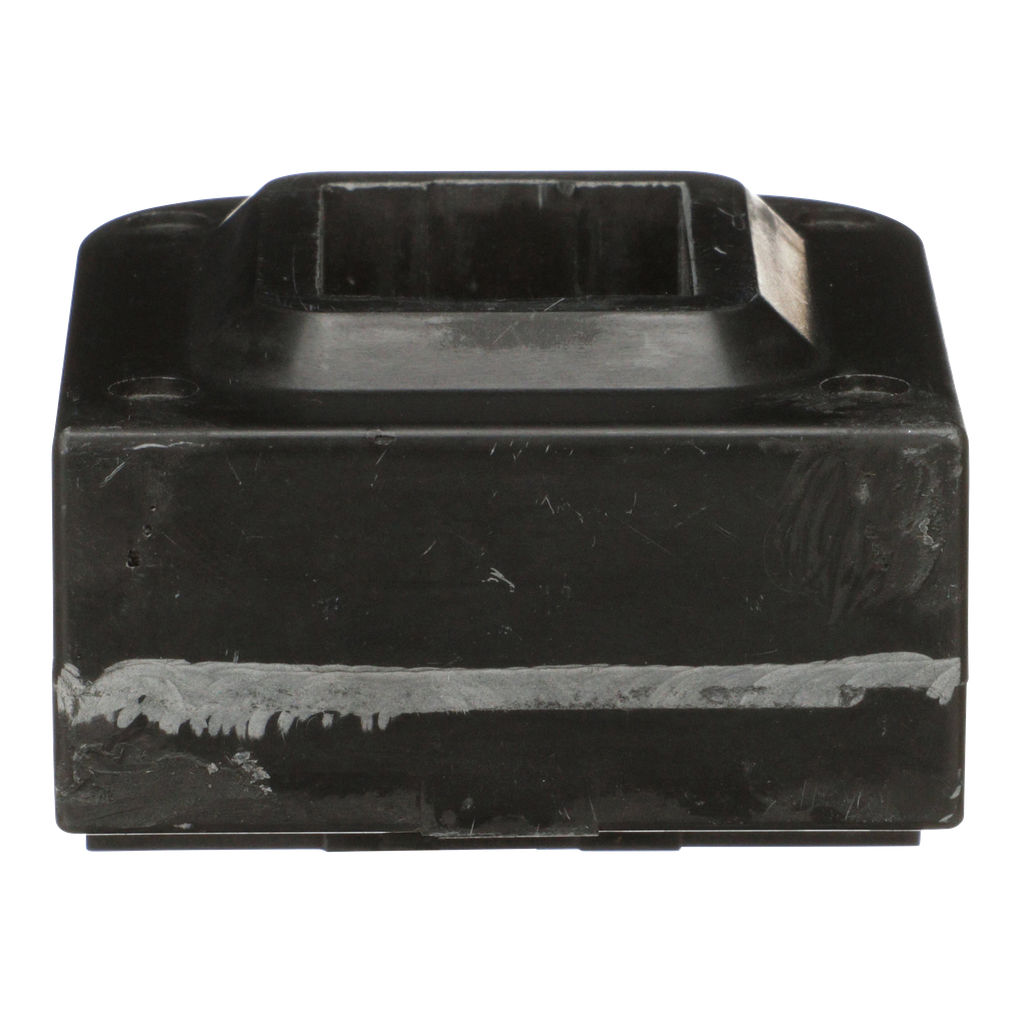

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting

NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting

SQD3107440038 3107440038 785901110903
319.94 / EACH
  • Depth: 2.093 mm
  • Height: 73 mm
  • NEMA: 3
  • Power Consumption: 46 VA, 47 VA
  • Warranty Length: 18 mth
  • Width: 65 mm
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
  • Product Description
  • Specifications
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
  • Accessory / Separate Part Destination : class 8502 type SE contactor || class 8903 type SQ lighting contactor || class 8910 type DPA12/SYD138 contactor
  • Maximum Height : 73 mm
  • Maximum Width : 65 mm
  • Nema Size : 3
  • [Ue] Rated Operational Voltage : 120 V AC 60 Hz || 110 V AC 50 Hz
  • Warranty : 18 months
  • Product Or Component Type : coil
  • Maximum Depth : 2.093 mm
  • Average Consumption : 46 VA || 47 VA
  • Inrush Power In Va : 700 VA || 678 VA
