SQUARE D

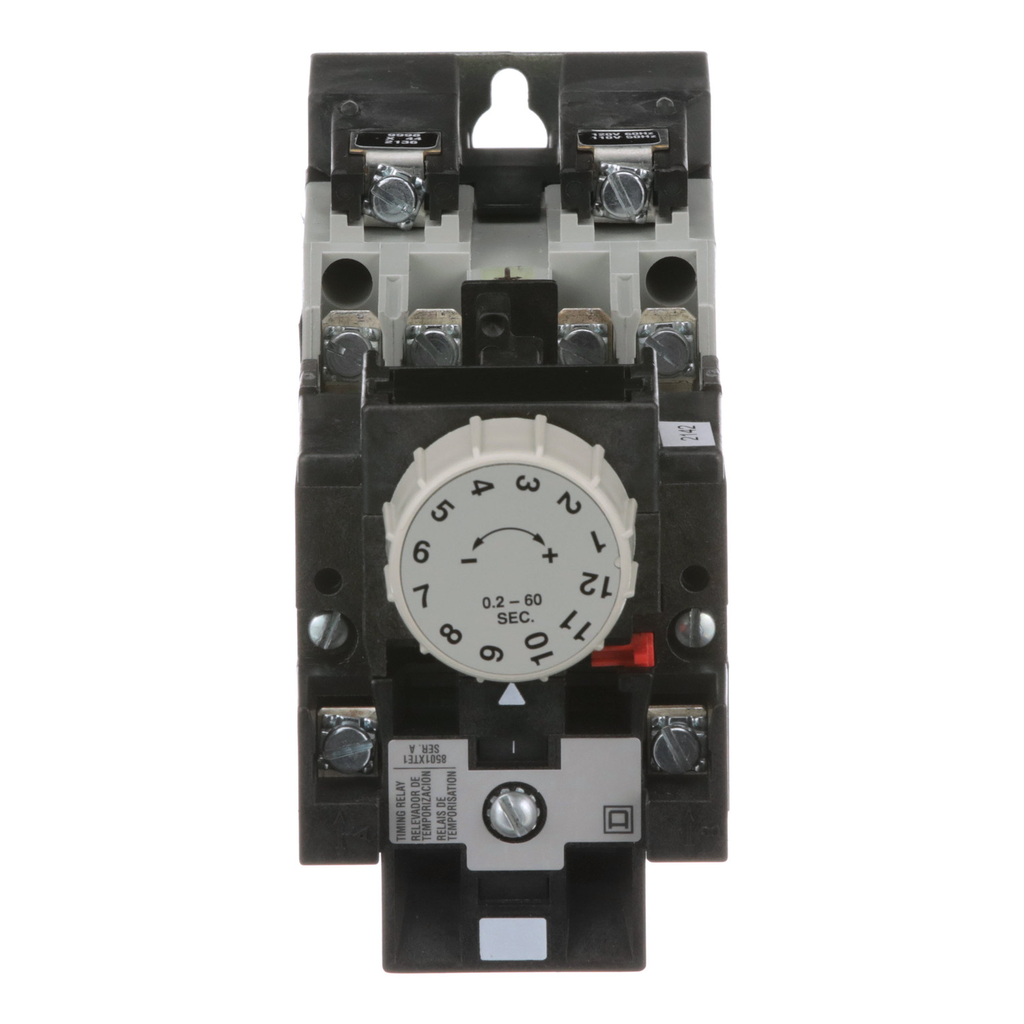

timing relay, 8501X, 1 minute on delay, 10A resistive at 600V AC, 4 normally open, 120V AC 60Hz coil

SQD 8501XO40XTE1V02 RELAY 600V

SQD8501XO40XTE1V02 8501XO40XTE1V02 785901537434
600.88 / EACH
http://schema.org/OutOfStock
Mayer-DDS-timing relay, 8501X, 1 minute on delay, 10A resistive at 600V AC, 4 normally open, 120V AC 60Hz coil-2
  • Country of Origin: Mexico
  • Depth: 6.55 in
  • Height: 3.5 in
  • Warranty Length: 18 mth
  • Width: 2.23 in
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10
QTY
  • Product Description
  • Features
  • Specifications
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10
  • Uc Control Circuit Voltage
    • 110 V AC 50 Hz
    • 120 V AC 60 Hz
  • Contacts Type And Composition
    • 4 NO 4 standard contact cartridges
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0096918818
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 1.8896989926
  • Operating Time
    • 15 ms - pick-up
    • 16 ms - drop-out
  • Icm Rated Short Circuit Making Capacity
    • 60 A 120 V AC inductive control circuit UL 508
    • 60 A 120 V AC induc
  • Maximum Switching Voltage
    • 600 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 8 kg CO2 eq.
    • 8.000767092
  • Accessories
    • 8501XC1
    • 8501XB20
    • 8501XS1
    • 8501XB40
    • 8501XTE1
    • 9998X44
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 237 kg CO2 eq.
    • 236.7631372549
  • Line Rated Current
    • 10 A AC
    • 5 A DC
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Carbon Footprint Of The Distribution Phase A4
    • 0.1571802686
    • 0.2 kg CO2 eq.
  • Tightening Torque
    • control circuit 1.02-1.36 N.m screw terminal
  • AWG Gauge
    • AWG 18...AWG 12 copper
  • Control Circuit Voltage Limits
    • operational 0.85...1.1 Uc AC 50/60 Hz
  • Hold In Power Consumption In Va
    • 23-23 VA 60 Hz
    • 25-25 VA 50 Hz
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Inrush Power In Va
    • 148-148 VA 60 Hz
    • 143-143 VA 50 Hz
  • Rated Breaking Capacity
    • 6 A 120 V AC inductive control circuit UL 508
    • 6 A 120 V AC inductive c
  • Product Certifications
    • CSA LR60905 class 3211 03
    • UL listed file E78403 CCN NKCR
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 9/16/2025
    • Html Descr : RELAY 600VAC 10AMP NEMA +OPTIONS
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 8.000767092
    • Distribution Carbon Footprint : 0.157180269
    • Installation Carbon Footprint : 0.009691882
    • Use Carbon Footprint : 236.7631373
    • End Of Life Carbon Footprint : 1.889698993
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409020EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 2 - SELECTED (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Connection : screw clamp terminals
    • Mounting Support : panel
    • Package Weight Lbs : 1.202 kg
    • Poles Description : 4P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : relay
    • Range Of Product : 8501X
    • Relay Type : timing
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Time Delay Range : 0.2...60 s
    • Time Delay Type : on-delay
    • Total Lifecycle Carbon Footprint : 247 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 246.8204755
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : relay
    • Range Of Product : 8501X
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=369049&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 246.8204755
    • Ambient Air Temperature For Operation : -40-160 °F
    • Circularity Profile : ENVEOLI1409020EN
    • Environmental Disclosure : ENVPEP1310013EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 3.5 in
    • Width : 2.23 in
    • Depth : 6.55 in
