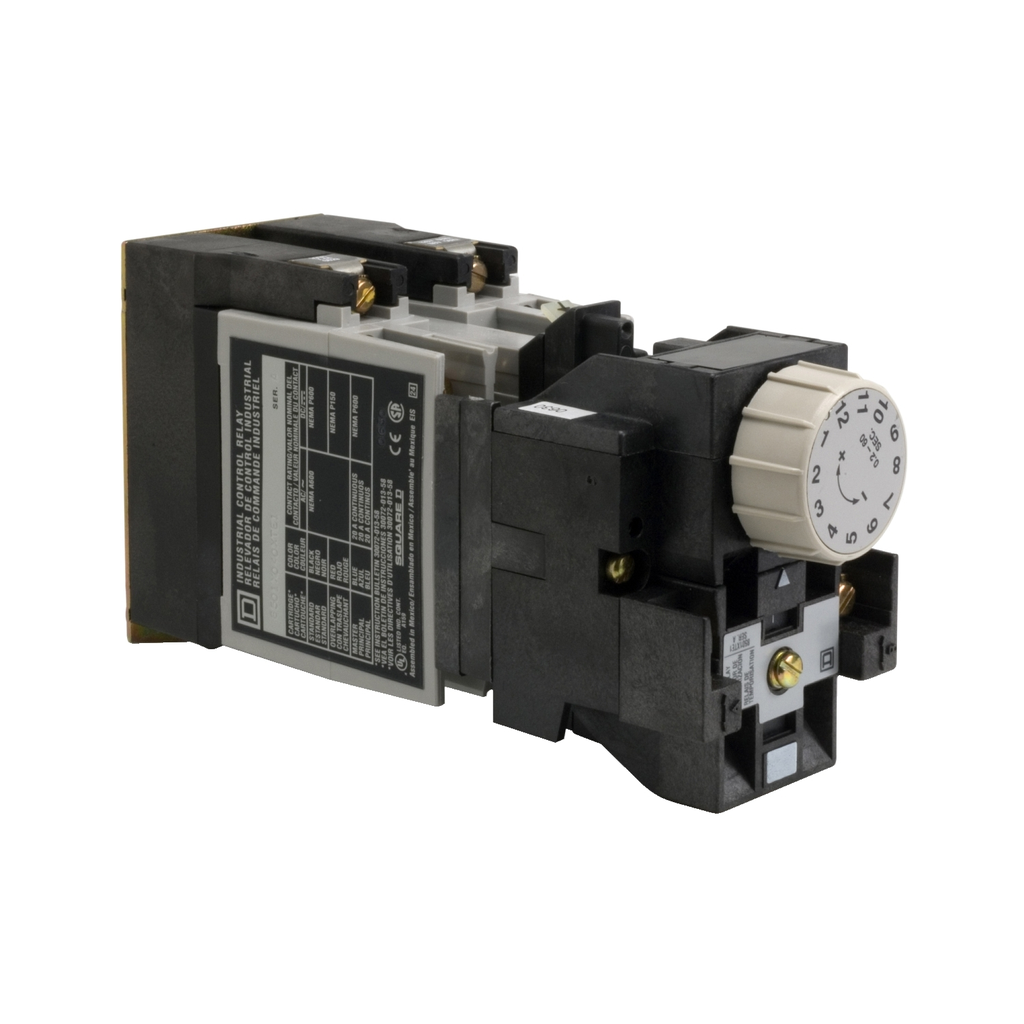

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

• Inrush Power In VA
• 148-148 VA 60 Hz
• 143-143 VA 50 Hz
• Contacts Type And Composition
• 4 NO 4 standard contact cartridges
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=E0700801-01&p_File_name=E0700801-01.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=E0700801-01&p_File_name=E0700801-01.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Operating Time
• 15 ms - pick-up
• 16 ms - drop-out
• Maximum Switching Voltage
• 600 V AC
• UC Control Circuit Voltage
• 110 V AC 50 Hz
• 120 V AC 60 Hz
• ICM Rated Short Circuit Making Capacity
• 60 A 120 V AC inductive control circuit UL 508
• 0.8 A 250 V DC resistive control circuit UL 508
• 30 A 240 V AC inductive control circuit UL 508
• 15 A 480 V AC inductive control circuit UL 508
• 12 A 600 V AC inductive control circuit UL 508
• 10 A <= 600 V AC resistive control circuit UL 508
• 1.1 A 125 V DC inductive control circuit UL 508
• 0.55 A 250 V DC inductive control circuit UL 508
• 0.2 A 301...600 V DC inductive control circuit UL 508
• 4 A 125 V DC inductive control circuit UL 508
• Accessories
• 8501XC1
• 8501XB20
• 8501XS1
• 8501XB40
• 8501XTD1
• 9998X44
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Line Rated Current
• 10 A AC
• 5 A DC
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Tightening Torque
• control circuit 1.02-1.36 N.m screw terminal
• AWG Gauge
• AWG 18...AWG 12 copper
• Control Circuit Voltage Limits
• operational 0.85...1.1 Uc AC 50/60 Hz
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Hold In Power Consumption In VA
• 23-23 VA 60 Hz
• 25-25 VA 50 Hz
• Rated Breaking Capacity
• 6 A 120 V AC inductive control circuit UL 508
• 0.8 A 250 V DC resistive control circuit UL 508
• 3 A 240 V AC inductive control circuit UL 508
• 1.5 A 480 V AC inductive control circuit UL 508
• 1.2 A 600 V AC inductive control circuit UL 508
• 10 A <= 600 V AC resistive control circuit UL 508
• 1.1 A 125 V DC inductive control circuit UL 508
• 0.55 A 250 V DC inductive control circuit UL 508
• 0.2 A 301...600 V DC inductive control circuit UL 508
• 4 A 125 V DC resistive control circuit UL 508

• Important Information Attributes
• B2B Bullet Point 1 : 8501 Type X relays combine a rugged, heavy-duty design with modular construction for great flexibility.
• B2B Bullet Point 2 : Replaceable, convertible, color coded contacts.
• B2B Bullet Point 3 : Basic 4 pole relay can be expanded to 6 or 8 poles by installing an adder deck
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1409020EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Package Weight Lbs : 1.216 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : relay
• Range Of Product : 8501X
• Returnability : Yes
• Sustainable Packaging : Yes
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1310013EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : relay
• Range Of Product : 8501X
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=369019&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI1409020EN
• Environmental Disclosure : ENVPEP1310013EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1310013EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
