NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 8 normally open contacts, 110/120 VAC 50/60 Hz coil

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 8 normally open contacts, 110/120 VAC 50/60 Hz coil

SQD8501XO80V02 8501XO80V02 785901536819
291.97 / EACH
  • Certifications: CSA LR60905 Class 3211 03, UL Listed File E78403 CCN NKCR
  • Depth: 5.16 in
  • Height: 3.5 in
  • Line Rated Current: 10 A, 5 A
  • Warranty Length: 18 mth
  • Width: 2.23 in

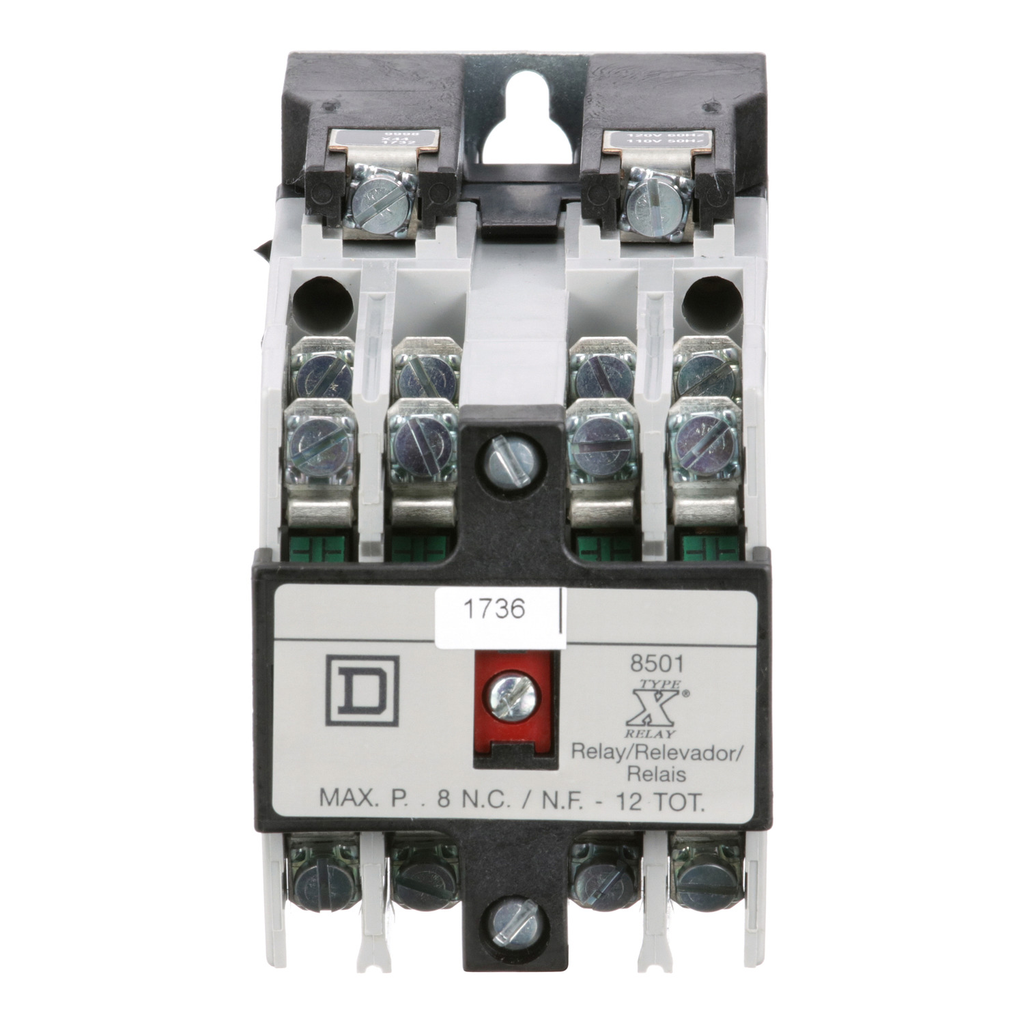

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has eight 8501XC1 contact cartridges. This relay has eight normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
  • Product Description
  • Specifications
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has eight 8501XC1 contact cartridges. This relay has eight normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
  • Mounting Support : panel
  • Inrush Power In Va : 148-148 VA 60 Hz || 143-143 VA 50 Hz
  • Product Certifications : CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
  • Maximum Depth : 5.16 in
  • Range Of Product : 8501X
  • Tightening Torque : control circuit 1.02-1.36 N.m screw terminals
  • Relay Type : control
  • Line Rated Current : 10 A AC || 5 A DC
  • Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
  • Maximum Width : 2.23 in
  • Product Or Component Type : relay
  • [Icm] Rated Short-Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
  • Electrical Connection : screw clamp terminals
  • Maximum Height : 3.5 in
  • Ambient Air Temperature For Operation : -40-160 °F
  • Control Circuit Voltage Limits : operational 0.85...1.1 Uc AC 50/60 Hz
  • Hold-In Power Consumption In Va : 23-23 VA 60 Hz || 25-25 VA 50 Hz
  • Operating Time : 15 ms - pick-up || 16 ms - drop-out
  • Warranty : 18 months
  • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
  • Contacts Type And Composition : 8 NO 8 standard contact cartridges
  • Awg Gauge : AWG 18...AWG 12 copper
