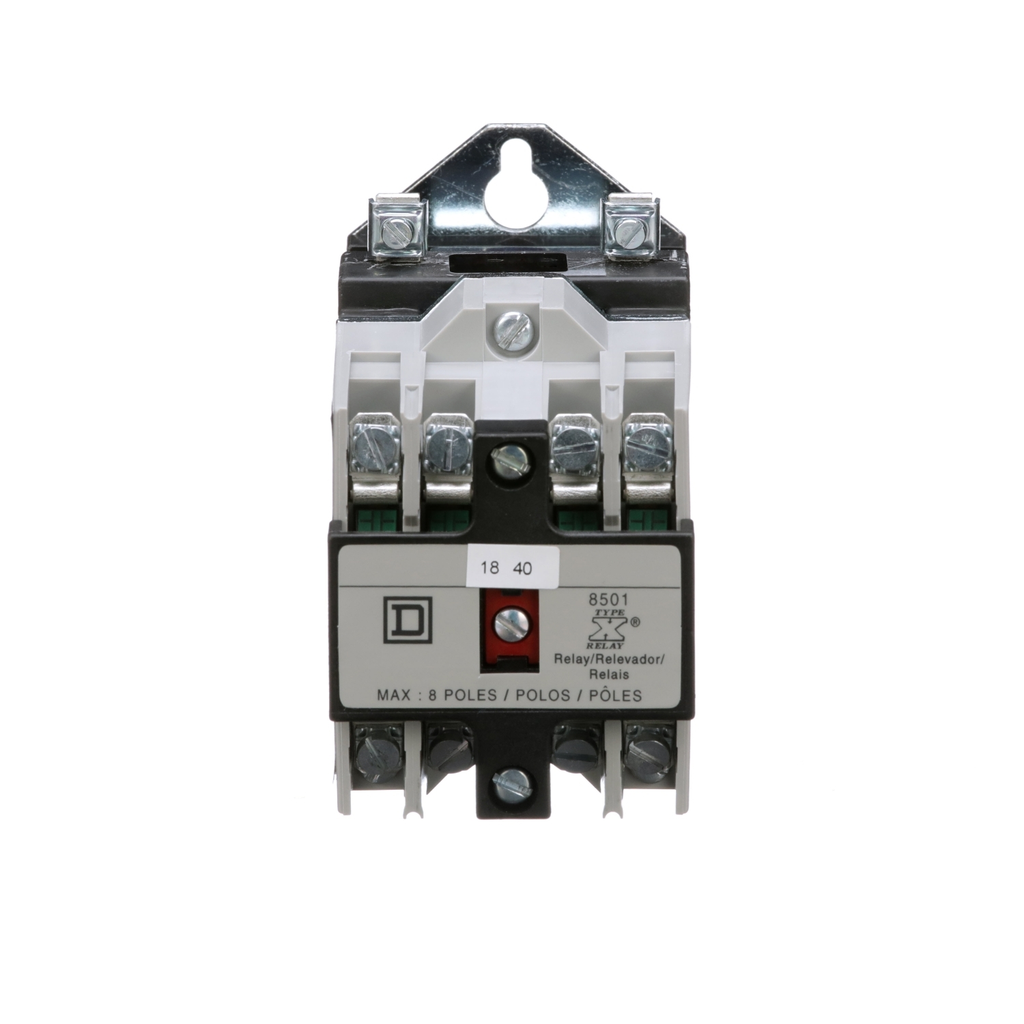

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil

RELAY 600VAC 10AMP NEMA +OPTIO

SQD8501XDO40V56 8501XDO40V56 785901017806
662.94 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 48 VDC coil-2
  • Warranty Length: 18 mth
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Control Circuit Voltage Limits : operational 0.8...1.1 Uc DC, operational 0.8...1.1 Uc DC, operational 0.8...1.1 Uc DC
    • Line Rated Current : 10 A AC, 10 A AC, 5 A DC, 5 A DC
    • Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508, 6 A 120 V AC inductive control circuit UL 508, 6 A 120 V AC inductive control circuit UL 508, 6 A 120 V AC inductive control circuit UL 508, 6 A 120 V AC inductive control circuit UL 508, 6 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
    • ICM Rated Short Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
    • UC Control Circuit Voltage : 48 V DC, 48 V DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 18...AWG 12 copper, AWG 18...AWG 12 copper
    • Contacts Type And Composition : 4 NO 4 standard contact cartridges, 4 NO 4 standard contact cartridges
    • Operating Time : 37 ms - pick-up, 37 ms - pick-up, 21 ms - drop-out, 21 ms - drop-out
    • Tightening Torque : control circuit 1.02-1.36 N.m screw terminals, control circuit 1.02-1.36 N.m screw terminals, control circuit 1.02-1.36 N.m screw terminals
    • ICM Rated Short Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : Out
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409020EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Package Weight Lbs : 1.361 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : relay
    • Range Of Product : 8501X
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1310013EN
