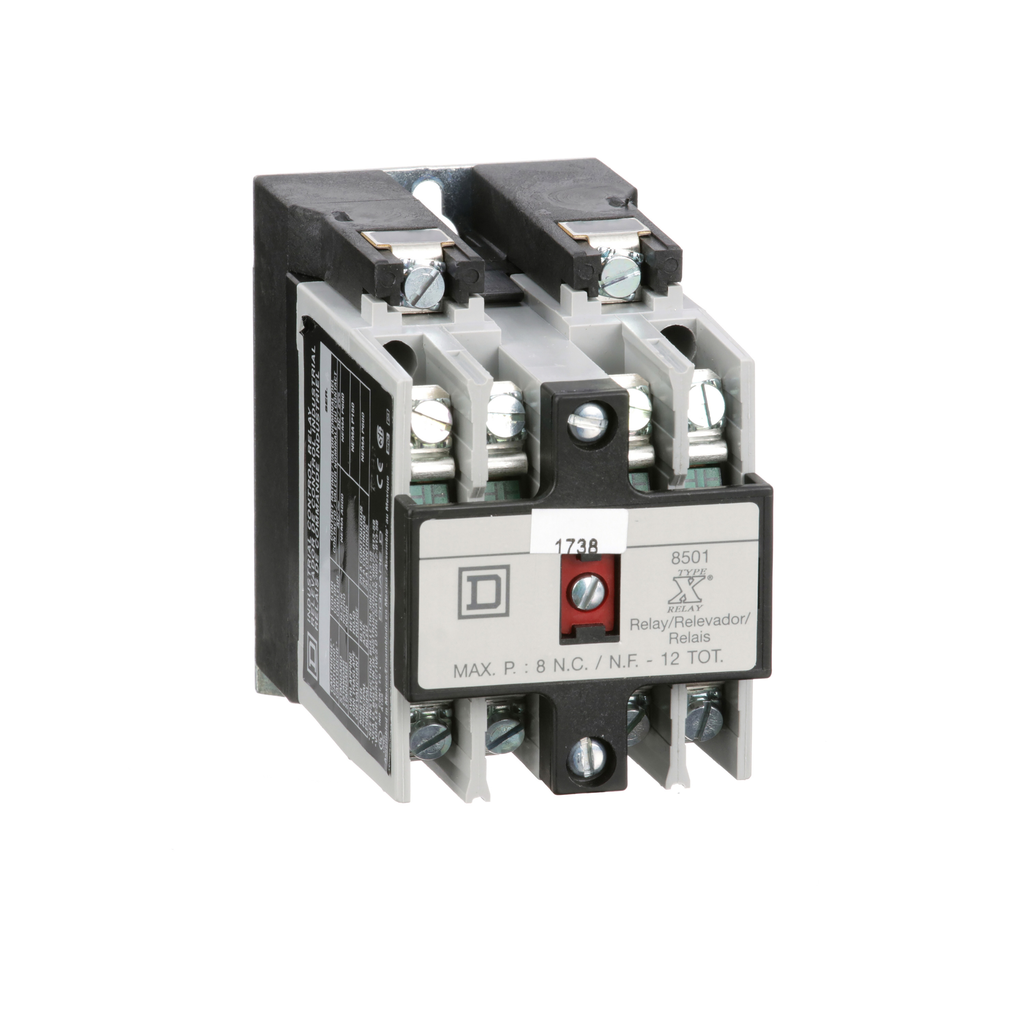

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 277 VAC 60 Hz coil

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 277 VAC 60 Hz coil

SQD8501XO40V04 8501XO40V04 785901018407
194.64 / EACH
  • Certifications: CSA LR60905 Class 3211 03, UL Listed File E78403 CCN NKCR
  • Depth: 3.95 in
  • Height: 3.5 in
  • Line Rated Current: 10 A, 5 A
  • Warranty Length: 18 mth
  • Width: 2.23 in
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
  • Product Description
  • Specifications
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
  • Warranty : 18 months
  • Maximum Depth : 3.95 in
  • Tightening Torque : control circuit 1.02-1.36 N.m screw terminals
  • Mounting Support : panel
  • Range Of Product : 8501X
  • Contacts Type And Composition : 4 NO 4 standard contact cartridges
  • Operating Time : 15 ms - pick-up || 16 ms - drop-out
  • Control Circuit Voltage Limits : operational 0.85...1.1 Uc AC 60 Hz
  • Product Certifications : CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
  • [Uc] Control Circuit Voltage : 277 V AC 60 Hz
  • Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
  • [Icm] Rated Short-Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
  • Relay Type : control
  • Hold-In Power Consumption In Va : 23-23 VA 60 Hz
  • Maximum Width : 2.23 in
  • Maximum Height : 3.5 in
  • Product Or Component Type : relay
  • Awg Gauge : AWG 18...AWG 12 copper
  • Ambient Air Temperature For Operation : -40-160 °F
  • Inrush Power In Va : 148-148 VA 60 Hz
  • Line Rated Current : 10 A AC || 5 A DC
  • Electrical Connection : screw clamp terminals
