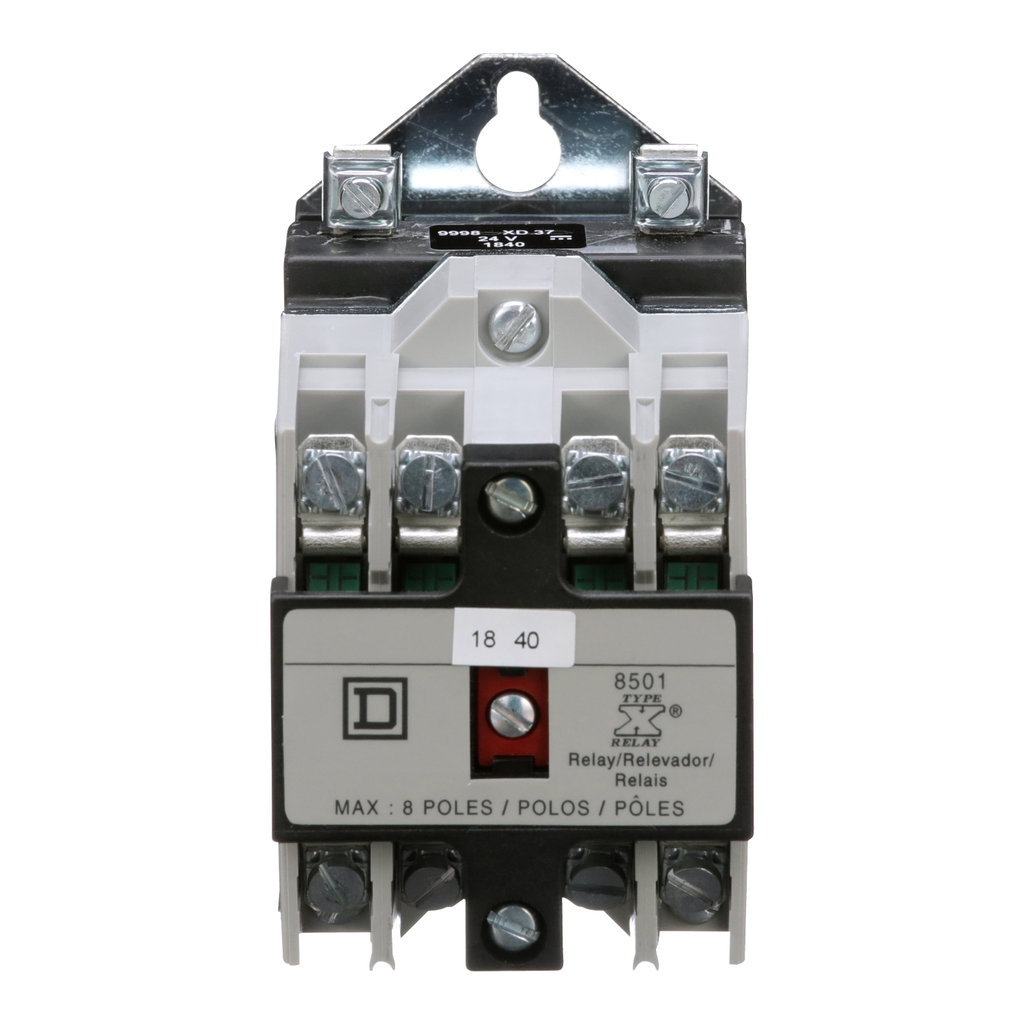

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 24 VDC replaceable coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL listed file E78403 CCN NKCR, CSA LR60905 class 3211 03
• Complementary Attributes
• Line Rated Current : 10 A AC, 5 A DC
• Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
• Icm Rated Short Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
• Control Circuit Voltage Limits : operational 0.8...1.1 Uc DC
• Uc Control Circuit Voltage : 24 V DC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Operating Time : 37 ms - pick-up, 21 ms - drop-out
• Icm Rated Short Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
• Carbon Footprint Of The Distribution Phase A4 : 0.1948407656145064, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 2.616155809267965
• Carbon Footprint Of The Installation Phase A5 : 0.3802752182672935, 0.4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 9.162749496306246
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 170 kg CO2 eq., 170.2444117647059
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Return Indicator : Y
• Stocking Flag : N
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1409020EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Awg Gauge : AWG 18...AWG 12 copper
• Contacts Type And Composition : 4 NO 4 standard contact cartridges
• Electrical Connection : screw clamp terminals
• Hold In Power Consumption In W : 18-18 W
• Inrush Power In W : 18 W
• Mounting Support : panel
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : relay
• Range Of Product : 8501X
• Relay Type : control
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Tightening Torque : control circuit 1.02-1.36 N.m screw terminals
• Total Lifecycle Carbon Footprint : 183 kg CO2 eq.
• Warranty In Months : 18
• Pep Code : ENVPEP1310013EN
• Database Version : 2022-01
• Pep Verification Date : 2024-06-02
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 1490
• Reference Lifetime In Y2 : 10
• Energy Consumption On Product Lifetime In Kwh : 318.5136
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; MX
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US
• Offer Owner Code : 190786
• Height Nominal : 3.56 in
• Width Nominal : 2.23 in
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 182.5984330541619
• Ambient Air Temperature For Operation : -40-160 °F
• Circularity Profile : ENVEOLI1409020EN
• Environmental Disclosure : ENVPEP1310013EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1310013EN
• Pep Verification Date : 2024-06-02
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : relay
• Range Of Product : 8501X
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Depth : 5.17 in
