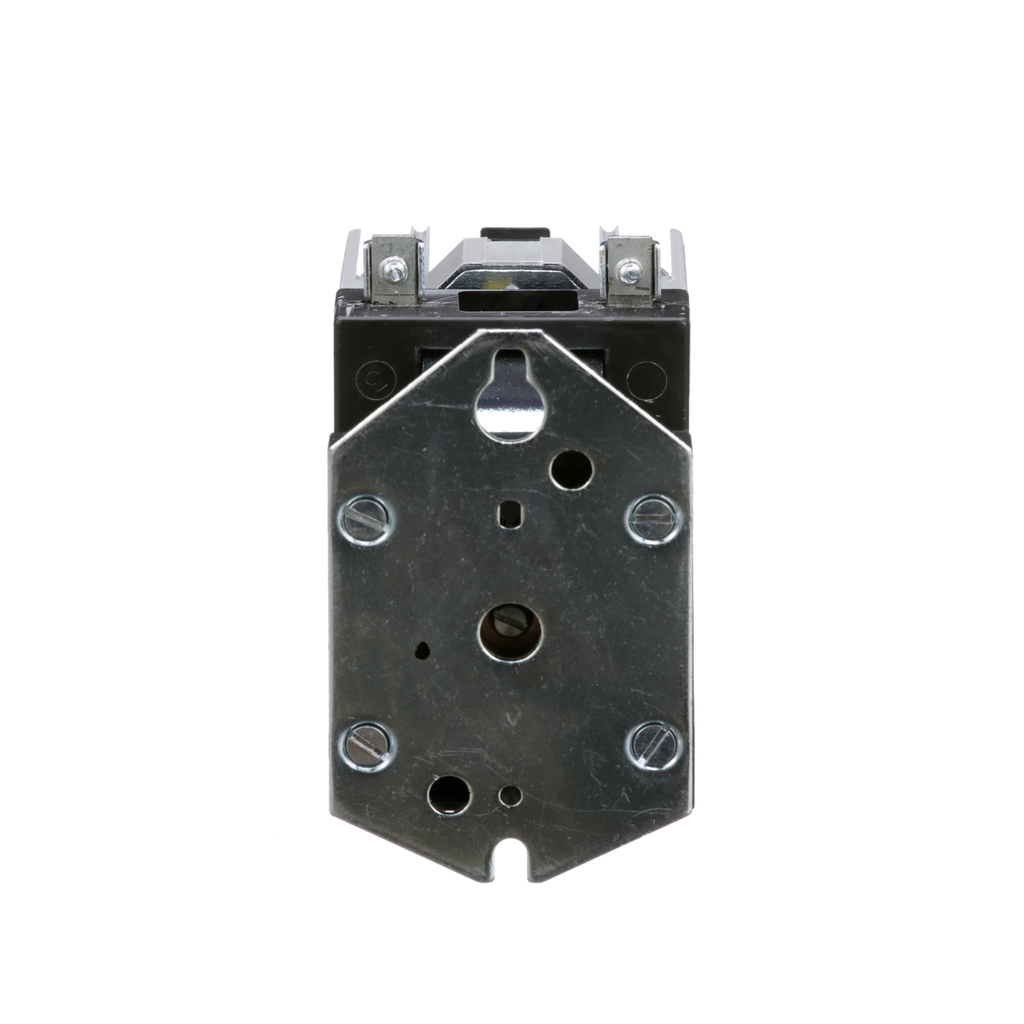

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 230/250 VDC coil

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 230/250 VDC coil

SQD8501XDO40V66 8501XDO40V66 785901548744
329.10 / EACH
  • Certifications: CSA LR60905 Class 3211 03, UL Listed File E78403 CCN NKCR
  • Depth: 5.17 in
  • Height: 3.56 in
  • Line Rated Current: 10 A, 5 A
  • Warranty Length: 18 mth
  • Width: 2.23 in
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. !8 to 12 AWG copper wire can be used with this relay. Relay has a 230/250 VDC replaceable coil. Relay is UL listed and CSA certified.
  • Product Description
  • Specifications
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. !8 to 12 AWG copper wire can be used with this relay. Relay has a 230/250 VDC replaceable coil. Relay is UL listed and CSA certified.
  • Inrush Power In W : 18 W
  • Maximum Height : 3.56 in
  • [Uc] Control Circuit Voltage : 230/250 V DC
  • Range Of Product : 8501X
  • Maximum Width : 2.23 in
  • Awg Gauge : AWG 18...AWG 12 copper
  • Line Rated Current : 10 A AC || 5 A DC
  • Contacts Type And Composition : 4 NO 4 standard contact cartridges
  • Relay Type : control
  • Hold-In Power Consumption In W : 18-18 W
  • Ambient Air Temperature For Operation : -40-160 °F
  • Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
  • Maximum Depth : 5.17 in
  • Mounting Support : panel
  • Operating Time : 37 ms - pick-up || 21 ms - drop-out
  • Control Circuit Voltage Limits : operational 0.8...1.1 Uc DC
  • Product Or Component Type : relay
  • Warranty : 18 months
  • Tightening Torque : control circuit 1.02-1.36 N.m screw terminals
  • Electrical Connection : screw clamp terminals
  • Product Certifications : CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
  • [Icm] Rated Short-Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
