SQUARE D

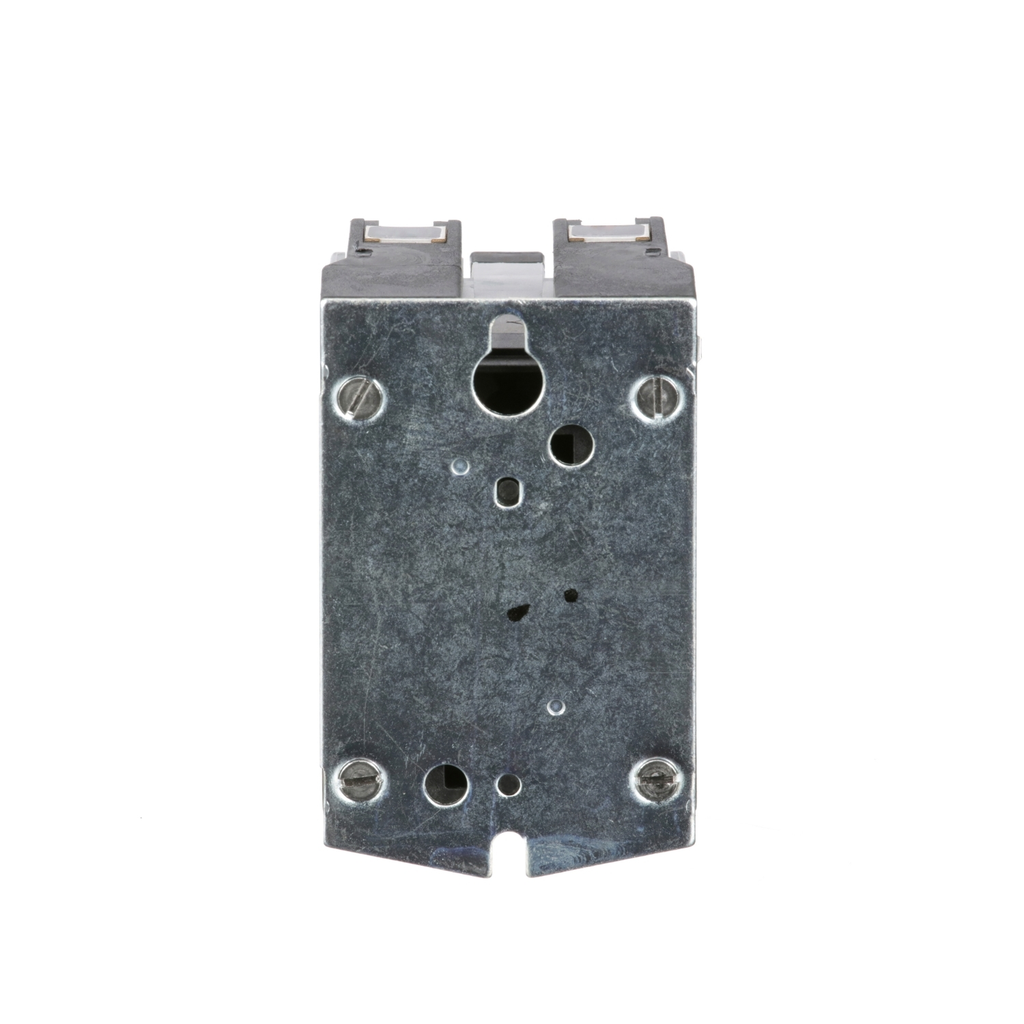

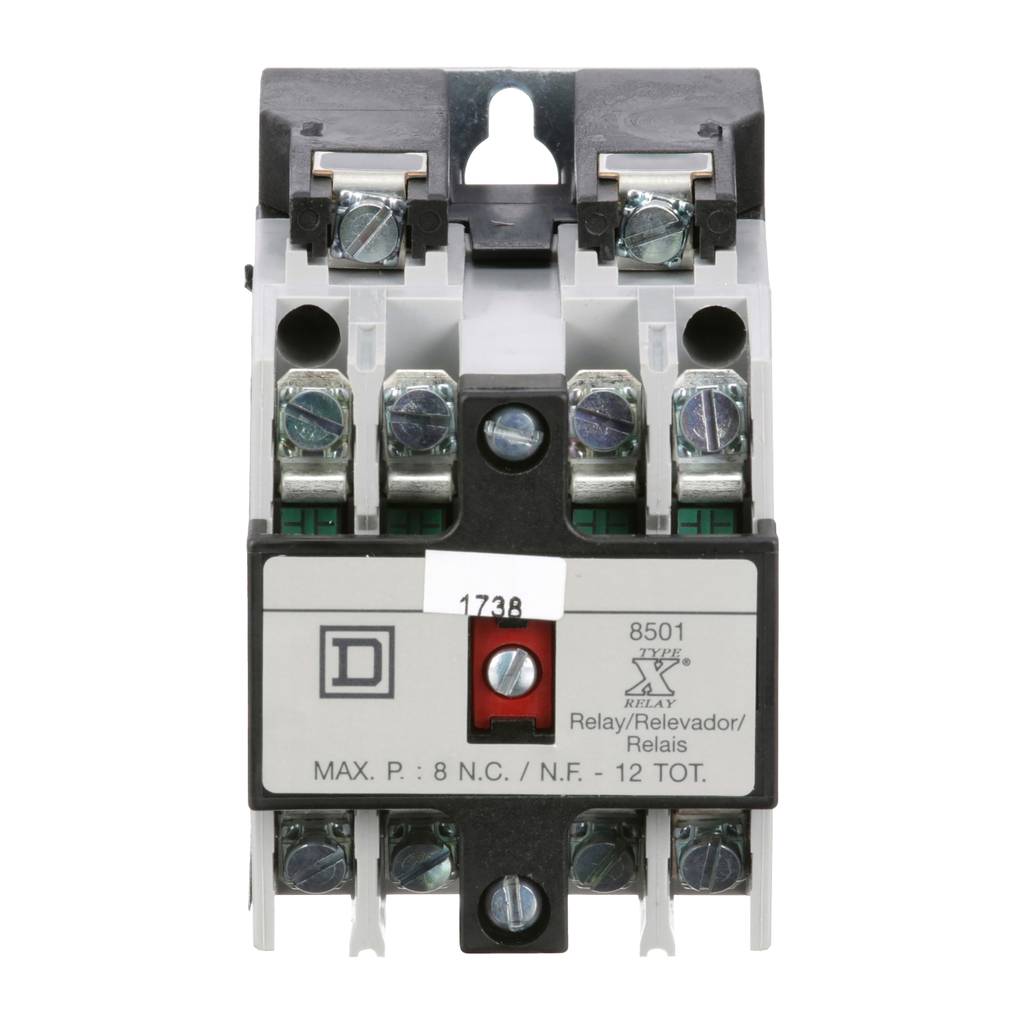

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 220/240 VAC 50/60 Hz coil

RELAY 600VAC 10AMP NEMA +OPTIO

SQD8501XO40V03 8501XO40V03 785901536758
228.53 / EACH
http://schema.org/OutOfStock
NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 220/240 VAC 50/60 Hz coil
  • Depth: 3.95 in
  • Warranty Length: 18 mth
Square D® 8501 Type X relays combine a rugged, heavy-duty design with modular construction for greater design flexibility.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL listed file E78403 CCN NKCR, CSA LR60905 class 3211 03
  • Complementary Attributes
    • Line Rated Current : 10 A AC, 5 A DC
    • Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
    • Icm Rated Short Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
    • Uc Control Circuit Voltage : 220 V AC 50 Hz, 240 V AC 60 Hz
    • Control Circuit Voltage Limits : operational 0.85...1.1 Uc AC 50/60 Hz
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Hold In Power Consumption In Va : 23-23 VA 60 Hz, 25-25 VA 50 Hz
    • Inrush Power In Va : 148-148 VA 60 Hz, 143-143 VA 50 Hz
    • Operating Time : 15 ms - pick-up, 16 ms - drop-out
    • Icm Rated Short Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
    • Carbon Footprint Of The Distribution Phase A4 : 0.12749608184687708, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.711908768838146
    • Carbon Footprint Of The Installation Phase A5 : 0.24883704495634654, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 6 kg CO2 eq., 5.995740450100738
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 169 kg CO2 eq., 168.55882352941177
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409020EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Awg Gauge : AWG 18...AWG 12 copper
    • Contacts Type And Composition : 4 NO 4 standard contact cartridges
    • Electrical Connection : screw clamp terminals
    • Mounting Support : panel
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : relay
    • Range Of Product : 8501X
    • Relay Type : control
    • Returnability : Yes
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Tightening Torque : control circuit 1.02-1.36 N.m screw terminals
    • Total Lifecycle Carbon Footprint : 177 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP1310013EN
    • Database Version : 2022-01
    • Pep Verification Date : 2024-06-02
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Product Weight In G2 : 974.997
    • Reference Lifetime In Y2 : 10
    • Energy Consumption On Product Lifetime In Kwh : 315.36
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; MX
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US
    • Offer Owner Code : 190786
    • Height Nominal : 3.5 in
    • Width Nominal : 2.23 in
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 176.6428058751539
    • Ambient Air Temperature For Operation : -40-160 °F
    • Circularity Profile : ENVEOLI1409020EN
    • Environmental Disclosure : ENVPEP1310013EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1310013EN
    • Pep Verification Date : 2024-06-02
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : relay
    • Range Of Product : 8501X
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 3.95 in
