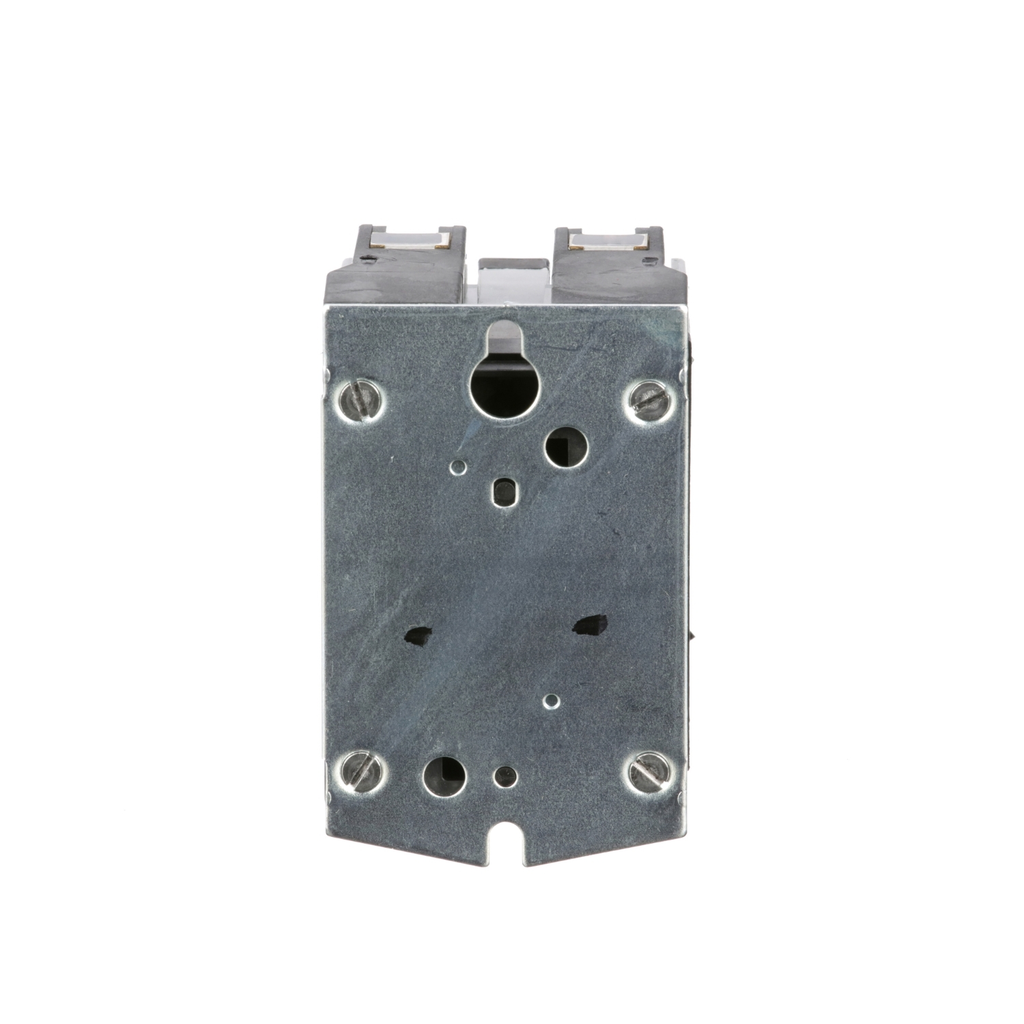

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 2 normally open contacts, 220/240 VAC 50/60 Hz coil

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 2 normally open contacts, 220/240 VAC 50/60 Hz coil

SQD8501XO20V03 8501XO20V03 785901536987
145.98 / EACH
  • Certifications: CSA LR60905 Class 3211 03, UL Listed File E78403 CCN NKCR
  • Depth: 3.95 in
  • Height: 3.5 in
  • Line Rated Current: 10 A, 5 A
  • Warranty Length: 18 mth
  • Width: 2.23 in
Square D® 8501 Type X relays combine a rugged, heavy-duty design with modular construction for greater design flexibility.
  • Specifications
  • Relay Type : control
  • Rated Breaking Capacity : 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
  • Tightening Torque : control circuit 1.02-1.36 N.m screw terminals
  • [Uc] Control Circuit Voltage : 220 V AC 50 Hz || 240 V AC 60 Hz
  • Awg Gauge : AWG 18...AWG 12 copper
  • Hold-In Power Consumption In Va : 23-23 VA 60 Hz || 25-25 VA 50 Hz
  • Product Or Component Type : relay
  • Line Rated Current : 10 A AC || 5 A DC
  • Product Certifications : CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
  • Maximum Depth : 3.95 in
  • Mounting Support : panel
  • Maximum Width : 2.23 in
  • Control Circuit Voltage Limits : operational 0.85...1.1 Uc AC 50/60 Hz
  • Electrical Connection : screw clamp terminals
  • Ambient Air Temperature For Operation : -40-160 °F
  • Operating Time : 15 ms - pick-up || 16 ms - drop-out
  • Range Of Product : 8501X
  • [Icm] Rated Short-Circuit Making Capacity : 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
  • Warranty : 18 months
  • Inrush Power In Va : 148-148 VA 60 Hz || 143-143 VA 50 Hz
  • Maximum Height : 3.5 in
  • Contacts Type And Composition : 2 NO 2 standard contact cartridges
