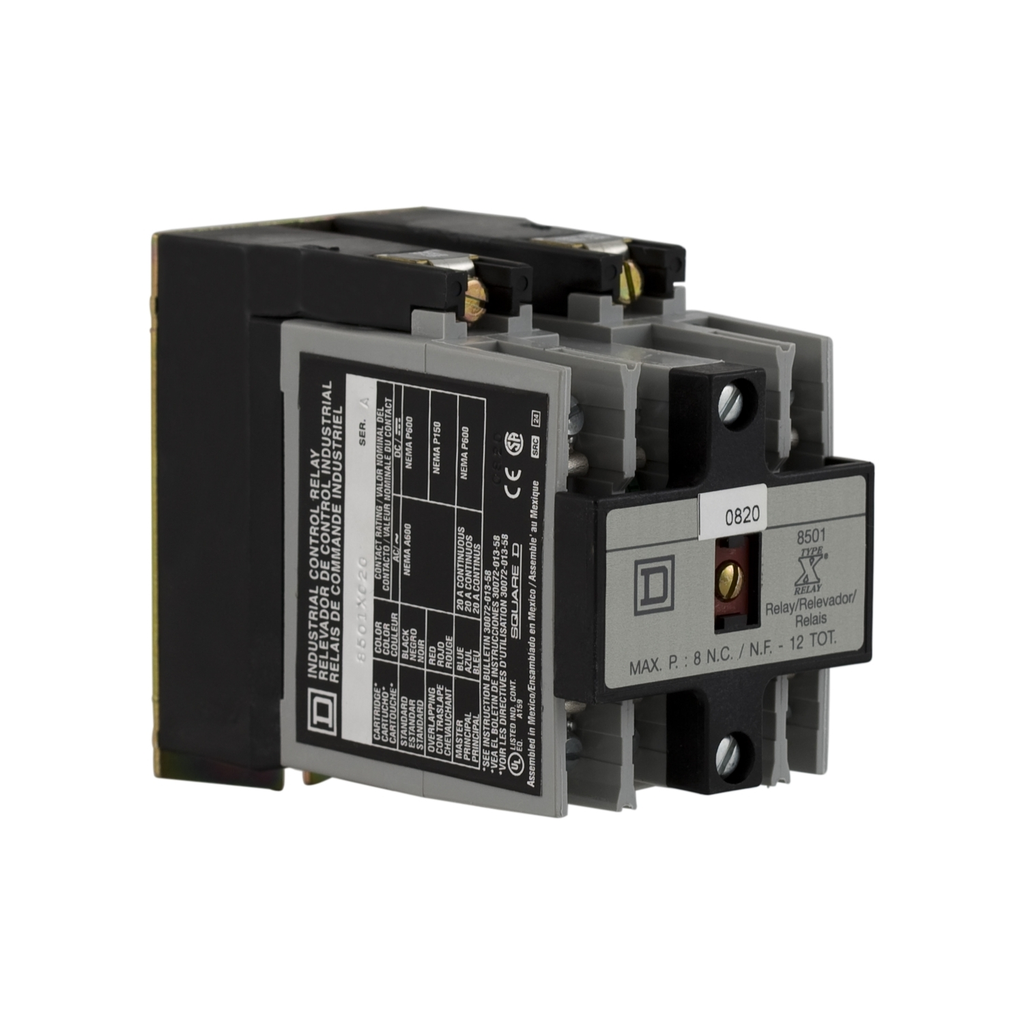

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliabli

• Uc Control Circuit Voltage
• 110 V AC 50 Hz
• 120 V AC 60 Hz
• Contacts Type And Composition
• 2 NO 2 standard contact cartridges
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Operating Time
• 15 ms - pick-up
• 16 ms - drop-out
• Icm Rated Short Circuit Making Capacity
• 60 A 120 V AC inductive control circuit UL 508
• 60 A 120 V AC induc
• Line Rated Current
• 10 A AC
• 5 A DC
• Tightening Torque
• control circuit 1.02-1.36 N.m screw terminals
• AWG Gauge
• AWG 18...AWG 12 copper
• Control Circuit Voltage Limits
• operational 0.85...1.1 Uc AC 50/60 Hz
• Hold In Power Consumption In Va
• 23-23 VA 60 Hz
• 25-25 VA 50 Hz
• Inrush Power In Va
• 148-148 VA 60 Hz
• 143-143 VA 50 Hz
• Rated Breaking Capacity
• 6 A 120 V AC inductive control circuit UL 508
• 6 A 120 V AC inductive c
• Product Certifications
• CSA LR60905 class 3211 03
• UL listed file E78403 CCN NKCR

• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : 8501 Type X relays combine a rugged, heavy-duty design with modular construction for great flexibility.
• B2B Bullet Point 2 : Replaceable, convertible, color coded contacts.
• B2B Bullet Point 3 : Basic 4 pole relay can be expanded to 6 or 8 poles by installing an adder deck
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-23
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1310013EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Electrical Connection : ring tongue
• Mounting Support : panel
• Package Weight Lbs : 961.616 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : relay
• Range Of Product : 8501X
• Relay Type : control
• Returnability : No
• Sustainable Packaging : No
• General Attributes
• Product Or Component Type : relay
• Range Of Product : 8501X
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=368661&lang=en-us
• China ROHS Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-160 °F
• Circularity Profile : ENVEOLI1310013EN
• Environmental Disclosure : ENVPEP1310013EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 3.5 in
• Width : 2.23 in
• Depth : 3.95 in
