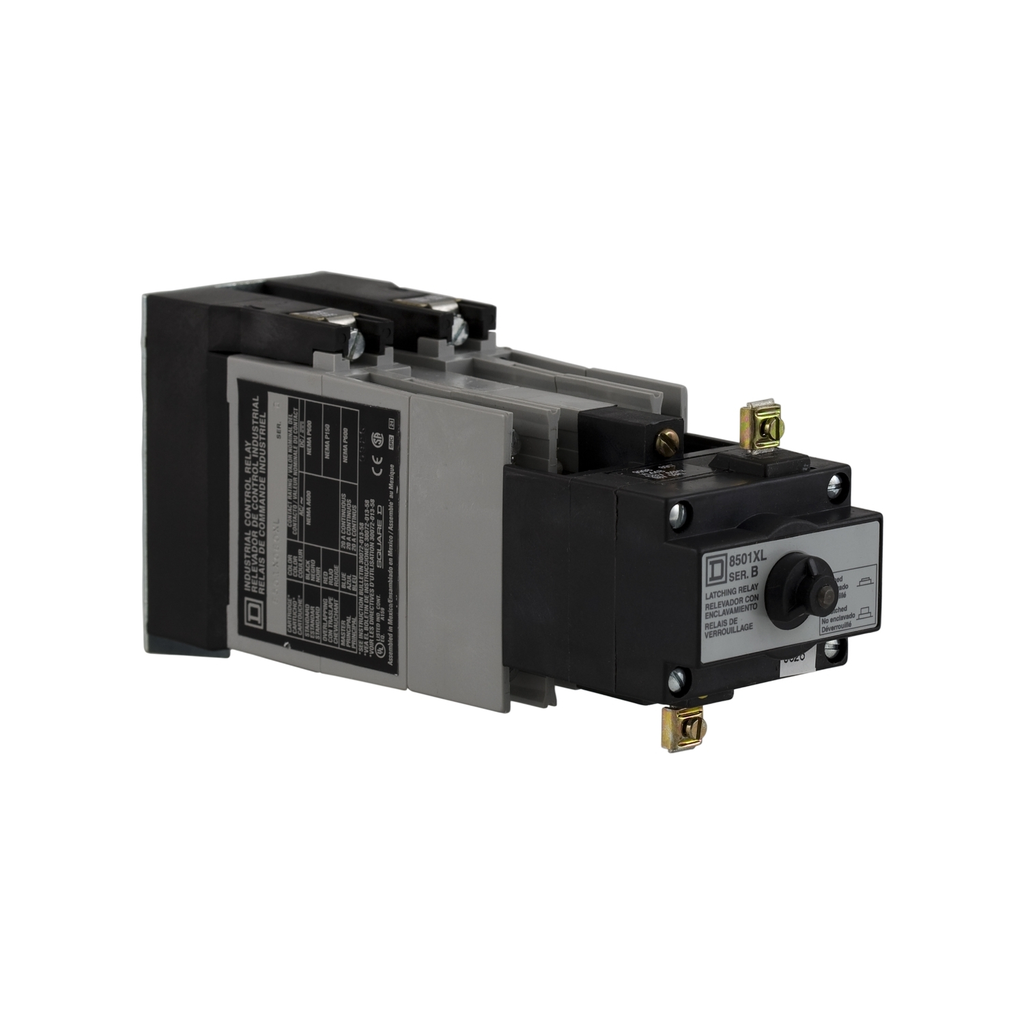

NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 8 normally open contacts, 110/120 VAC 50/60 Hz coil

RELAY 600VAC 10AMP NEMA +OPTIO

SQD8501XO80XLV02 8501XO80XLV02 785901028529
519.10 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 8 normally open contacts, 110/120 VAC 50/60 Hz coil-1
  • Depth: 7.74 in
  • Height: 3.50 in
  • Warranty Length: 18 mth
  • Width: 2.23 in
QTY
  • Features
  • Specifications
  • Uc Control Circuit Voltage
    • 110 V AC 50 Hz
    • 120 V AC 60 Hz
  • Contacts Type And Composition
    • 8 NO 8 standard contact cartridges
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Operating Time
    • 15 ms - pick-up
    • 13 ms - drop-out
  • Maximum Switching Voltage
    • 600 V AC
  • Accessories
    • 8501XC1
    • 8501XS1
    • 8501XLV02
    • 9998X44
  • Line Rated Current
    • 10 A AC
    • 5 A DC
  • Product Certifications
    • UL Listed
    • CSA
    • CE
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : 8501 Type X relays combine a rugged, heavy-duty design with modular construction for great flexibility.
    • B2B Bullet Point 2 : Replaceable, convertible, color coded contacts.
    • B2B Bullet Point 3 : Basic 4 pole relay can be expanded to 6 or 8 poles by installing an adder deck
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-23
    • Html Descr : 8501 Industrial Latching RelayRated Current: 10A AC, 5A DCContacts Type and Composition: 8 NO 8 standard contact cartridgesPoles Description: 8-PolesControl Circuit Voltage: 110V AC 50 Hz, 120V AC 60 HzMounting Support: Pan
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1310013EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Electrical Connection : screw clamp terminals
    • Mounting Support : panel
    • Package Weight Lbs : 1.361 kg
    • Poles Description : 8P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : relay
    • Range Of Product : 8501X
    • Relay Type : latching
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : relay
    • Range Of Product : 8501X
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=369225&lang=en-us
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-160 °F
    • Circularity Profile : ENVEOLI1310013EN
    • Environmental Disclosure : ENVPEP1310013EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Height : 3.50 in
    • Width : 2.23 in
    • Depth : 7.74 in
