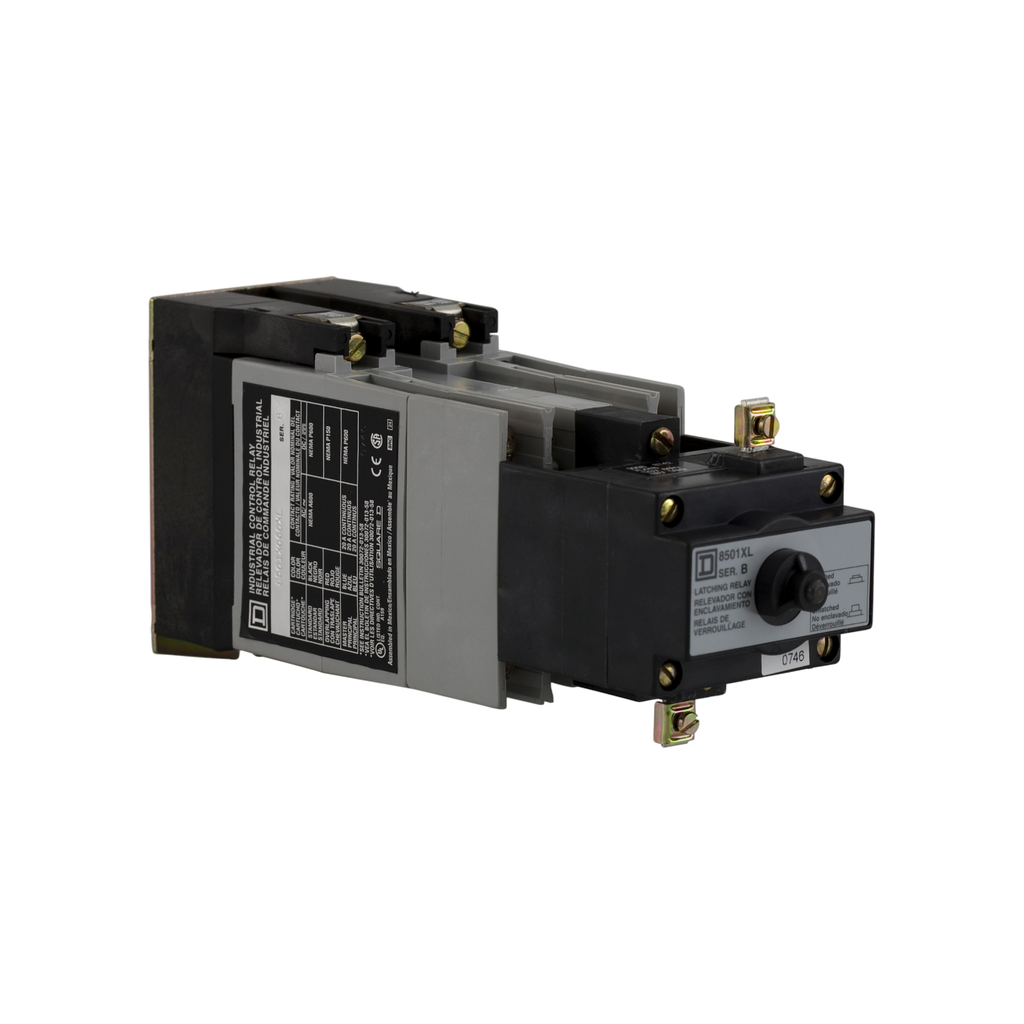

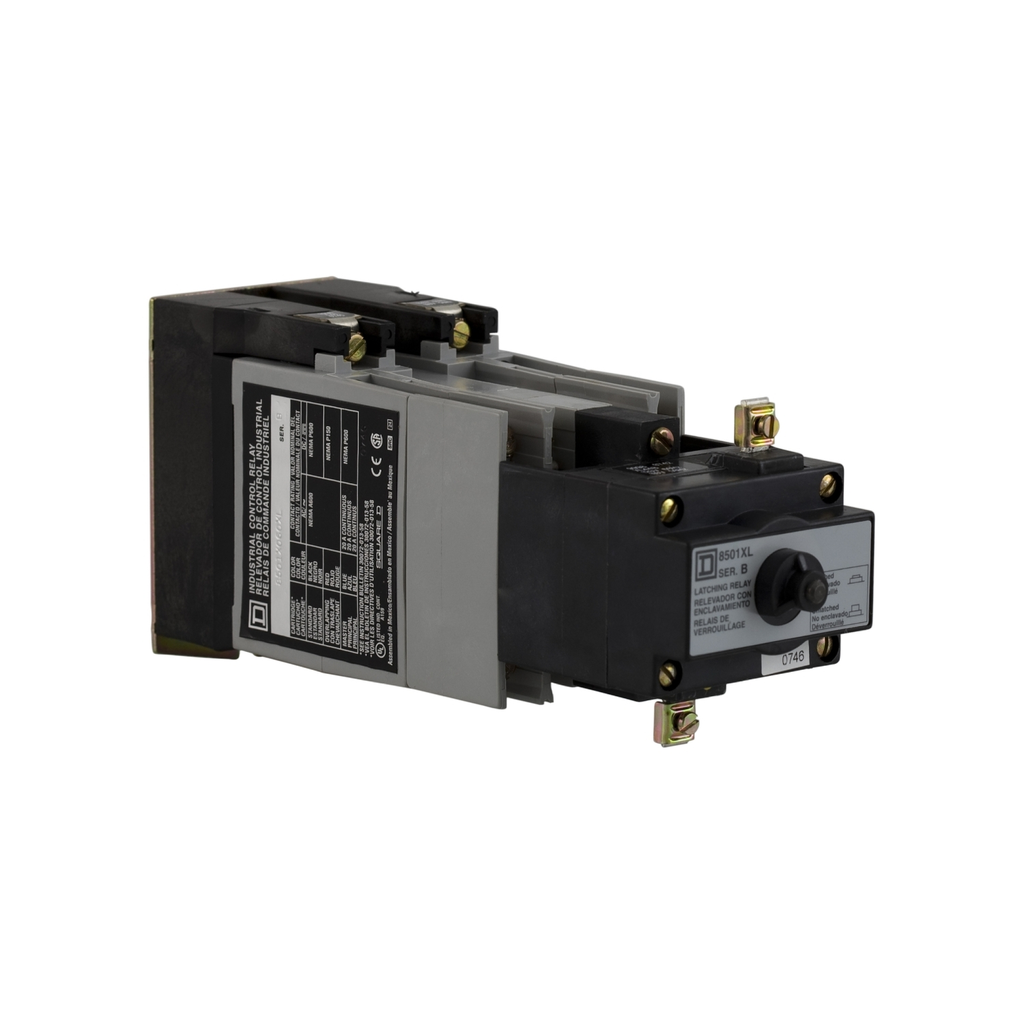

NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 6 normally open contacts, 110/120 VAC 50/60 Hz coil

NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 6 normally open contacts, 110/120 VAC 50/60 Hz coil

SQD8501XO60XLV02 8501XO60XLV02 785901028512
413.62 / EACH
  • Certifications: CE, CSA, UL Listed
  • Depth: 7.74 in
  • Height: 3.5 in
  • Line Rated Current: 10 A, 5 A
  • Warranty Length: 18 mth
  • Width: 2.23 in
  • Specifications
  • Operating Time : 15 ms - pick-up || 13 ms - drop-out
  • Maximum Height : 3.5 in
  • Product Certifications : CE || CSA || UL Listed
  • Ambient Air Temperature For Operation : -40-160 °F
  • Product Or Component Type : relay
  • Mounting Support : panel
  • Relay Type : latching
  • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
  • Maximum Switching Voltage : 600 V AC
  • Line Rated Current : 10 A AC || 5 A DC
  • Maximum Depth : 7.74 in
  • Range Of Product : 8501X
  • Poles Description : 6P
  • Warranty : 18 months
  • Contacts Type And Composition : 6 NO 6 standard contact cartridges
  • Maximum Width : 2.23 in
  • Electrical Connection : screw clamp terminals
