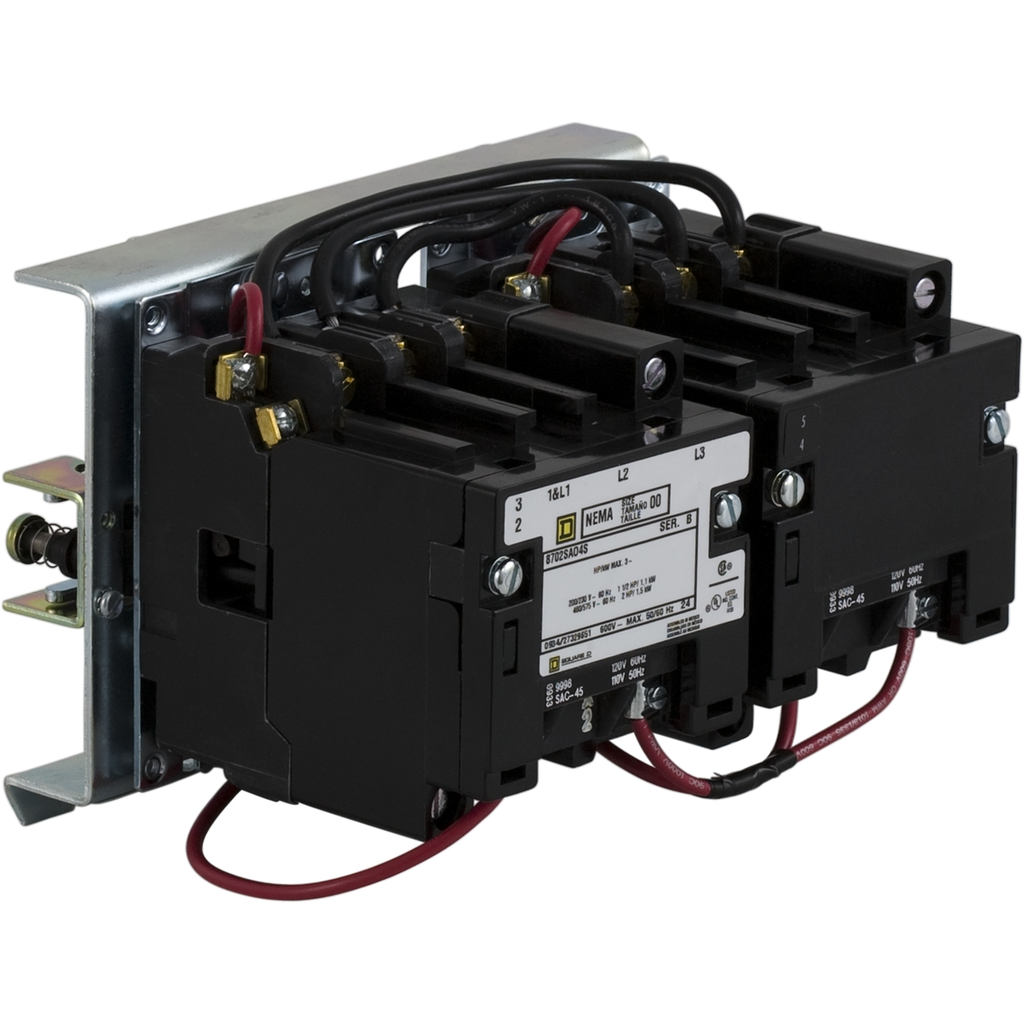

Type S NEMA reversing magnetic contactors are used for starting, stopping, and reversing AC motors where overload protection is separately provided. NEMA 8702 reversing contactors are available in NEMA Sizes 00-7. This is a Size 1 reversing contactor. NEMA reversing contactors consist of two 8502 NEMA contactors that are mechanically and electrically interlocked Sizes 0-5 revesring contactors are available in either horizontal or vertical arrangements. This reversing contactor is arranged horizontally. Type S reversing contactors have ratings up to 810 amperes. This NEMA 1 reversing contactor has a 27 ampere rating. Type S reversing contactors are available in 1, 2, 3, and 4 pole versions. This is a 3 pole reversing contactor. NEMA Size 1 reversing contatctors have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase. These starters are available with a wide variety of replaceable coil voltages. The coil in this contactor is rated for 110/120 VAC 50/60 Hz which is wired for separate control. This NEMA reversing contactor is not in an enclosure. It is an open device. Reversing contactor is 5.00 inches tall, 7.13 inches wide and 5.31 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA reversing contactors are UL listed and CSA certified for global applications.

• Rated Power In HP
• 7.5 HP 200 V AC
• 7.5 HP 230 V AC
• 10 HP 460 V AC
• 10 HP 575 V AC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• UC Control Circuit Voltage
• 110 V AC 50 Hz
• 120 V AC 60 Hz
• Accessories
• 9999SX6
• 9999SX7
• 9999SX8
• 9999ST1
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 600 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Used to switch where overload protection is separately provided
• B2B Bullet Point 2 : available in NEMA Sizes 00-7
• B2B Bullet Point 3 : Wide variety of enclosures
• B2B Bullet Point 4 : Field installable or factory modified accessories
• B2B Bullet Point 5 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-19
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Will not be Compliant
• ROHS EUR Full Compliance Status : Not compliant
• ROHS EUR Full Compliance Status Id : NOT_COMPLIANT
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Condition Of Use : horizontal
• Contactor Application : reversing
• Energy Efficiency Optimized : False
• Local Signalling : no indicator
• Package Weight Lbs : 3.983 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range Of Product : type S
• Returnability : No
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : type S
• Environment Attributes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=539595&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• EU ROHS Directive : Not compliant
• Nema Degree Of Protection : not rated (open device)
• Nema Size : 1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Compliance : TAA
