NEMA Contactor, Type S, nonreversing, Size 6, 540A, 400HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open [TAA]

CONTACTOR 600VAC 540AMP NEMA +

SQD8502SHO2V02S 8502SHO2V02S 785901152354
21573.61 / EACH
http://schema.org/OutOfStock

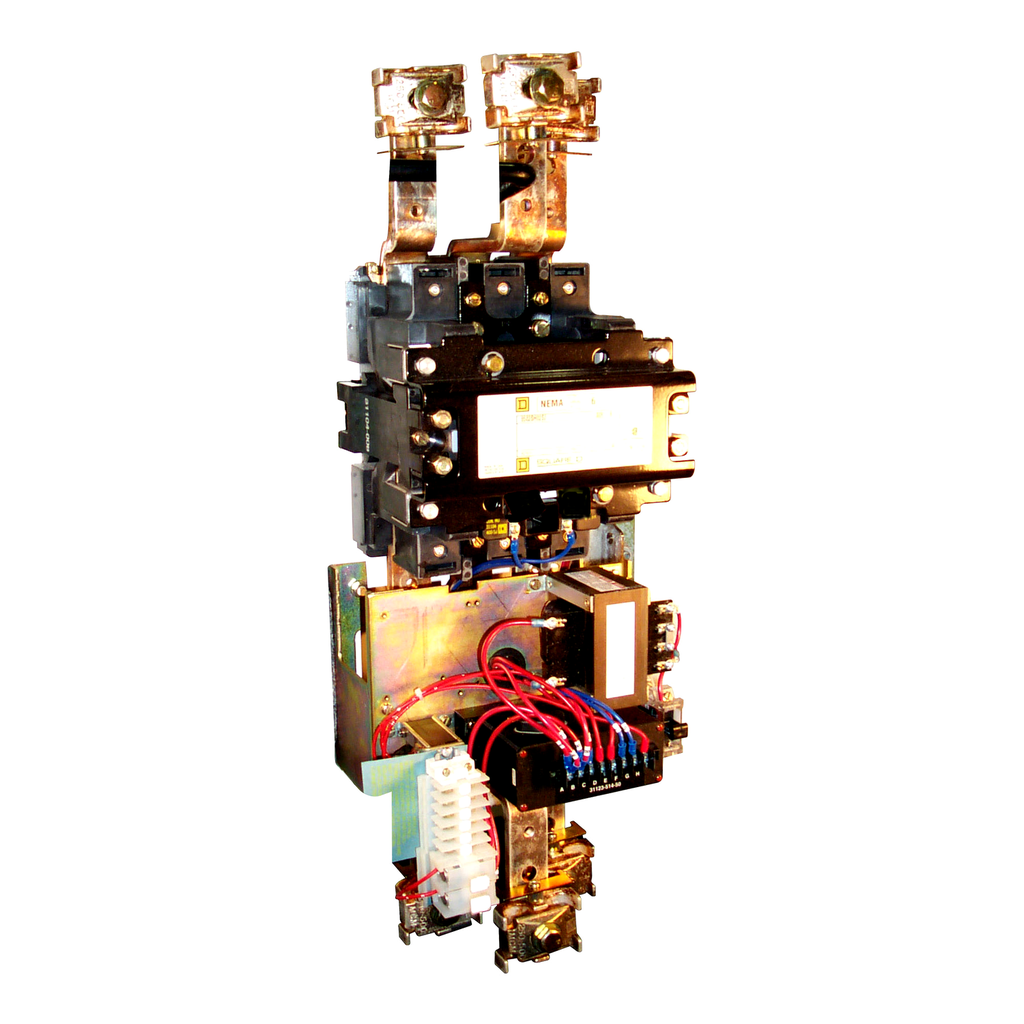

Mayer-DDS-NEMA Contactor, Type S, nonreversing, Size 6, 540A, 400HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open [TAA]-1
  • Country of Origin: USA
  • Depth: 228.60 mm
  • Height: 712.72 mm
  • Warranty Length: 18 mth
  • Width: 267.97 mm
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 6 non-reversing contactor has a 540 ampere rating. Three phase NEMA Size 6 contactors have 150 HP at 200, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 28.06 inches tall, 10.55 inches wide and 9.00 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 6 non-reversing contactor has a 540 ampere rating. Three phase NEMA Size 6 contactors have 150 HP at 200, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 28.06 inches tall, 10.55 inches wide and 9.00 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Contractual warranty
    • Warranty : 18 months
  • Compliance
    • Compliance : TAA
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Eu Rohs Directive : Not compliant
  • Environmental
    • Product Certifications : UL listed file E78351 CCN NLDX || CSA
    • Nema Degree Of Protection : not rated (open device)
  • Complementary
    • Height : 712.72 mm
    • Auxiliary Contact Composition : without
    • Nema Size : 6
    • [Uc] Control Circuit Voltage : 120 V AC 60 Hz || 110 V AC 50 Hz
    • Rated Power In Hp : 150 HP 200 V AC || 200 HP 230 V AC || 400 HP 460 V AC || 400 HP 575 V AC
    • Product Compatibility : circuit-breaker 800 A maximum, SCCR: 65 kA at 480 V AC || fuse J 600 A maximum, SCCR: 100 kA at 600 V AC || fuse T 600 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 600 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 600 A maximum, SCCR: 100 kA at 600 V AC
    • Control Type : no control units
    • Phase : 3 phase
    • Local Signalling : no indicator
    • Poles Description : 3P
    • Electrical Connection : screw clamp terminals
    • Provided Equipment : 2 fuses (primary)
    • Line Rated Current : 540 A
    • Control Circuit : control circuit transformer
    • Width : 267.97 mm
    • Depth : 228.60 mm
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Country of Origin : United States
    • Width : 267.97 mm
    • Height : 712.72 mm
    • Range Of Product : 8502S
    • Contactor Application : non-reversing
    • Product Or Component Type : contactor
