NEMA Contactor, Type S, nonreversing, Size 4, 135A, 100 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 480 VAC coil, open

NEMA Contactor, Type S, nonreversing, Size 4, 135A, 100 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 480 VAC coil, open

SQD8502SFO2V06 8502SFO2V06 785901831235
3176.86 / EACH
  • Certifications: CSA, UL Listed File E78351 CCN NLDX
  • Contact Configuration: Without
  • Depth: 165.1 mm
  • Height: 208.03 mm
  • Line Rated Current: 135 A
  • NEMA: 4
  • Number of Phases: 3
  • Warranty Length: 18 mth
  • Width: 152.4 mm

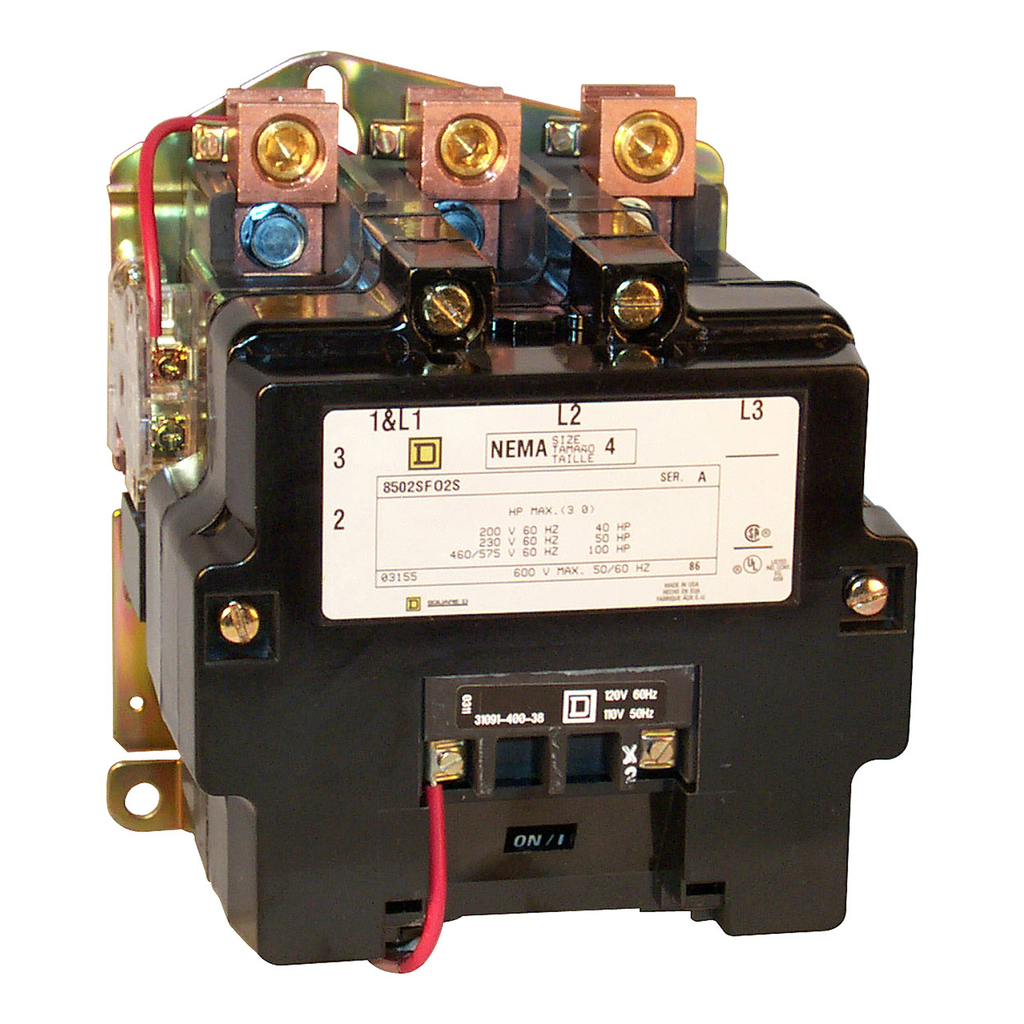

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. Type S NEMA contactors are UL listed and CSA certified for global applications. Type S NEMA contactors are UL listed and CSA certified.
  • Product Description
  • Specifications
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Three phase NEMA Size 4 contactors have 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. Type S NEMA contactors are UL listed and CSA certified for global applications. Type S NEMA contactors are UL listed and CSA certified.
  • [Ue] Rated Operational Voltage : 600 V AC
  • Control Circuit : common control circuit
  • Maximum Width : 152.4 mm
  • Nema Size : 4
  • Poles Description : 3P
  • Maximum Depth : 165.1 mm
  • Product Certifications : UL listed file E78351 CCN NLDX || CSA
  • Maximum Height : 208.03 mm
  • Nema Degree Of Protection : not rated (open device)
  • Rated Power In Hp : 40 HP 200 V AC || 50 HP 230 V AC || 100 HP 460 V AC || 100 HP 575 V AC
  • Range Of Product : 8502S
  • Electrical Connection : screw clamp terminals
  • Product Or Component Type : contactor
  • Line Rated Current : 135 A
  • Local Signalling : no indicator
  • Provided Equipment : fuse not supplied
  • [Uc] Control Circuit Voltage : 480 V AC 60 Hz || 440 V AC 50 Hz
  • Auxiliary Contact Composition : without
  • Control Type : no control units
  • Product Compatibility : circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC || fuse J 200 A maximum, SCCR: 100 kA at 600 V AC || fuse T 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
  • Phase : 3 phase
  • Contactor Application : non-reversing
  • Warranty : 18 months
