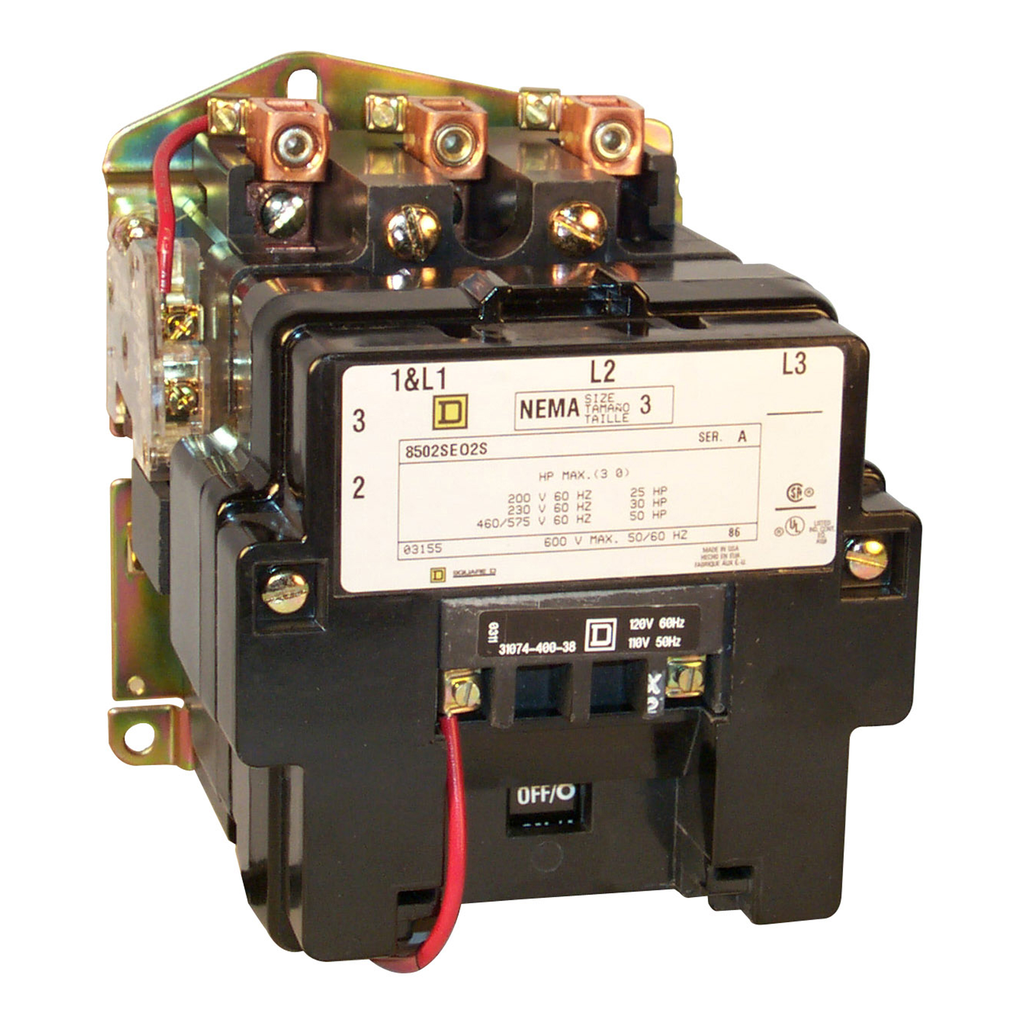

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating. Three phase NEMA Size 3 contactors have 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 7.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Rated Power In HP : 25 HP 200 V AC, 25 HP 200 V AC, 25 HP 200 V AC, 30 HP 230 V AC, 30 HP 230 V AC, 30 HP 230 V AC, 50 HP 460 V AC, 50 HP 460 V AC, 50 HP 460 V AC, 50 HP 575 V AC, 50 HP 575 V AC, 50 HP 575 V AC
• UC Control Circuit Voltage : 480 V AC 60 Hz, 480 V AC 60 Hz, 480 V AC 60 Hz, 440 V AC 50 Hz, 440 V AC 50 Hz, 440 V AC 50 Hz
• UE Rated Operational Voltage : 600 V AC, 600 V AC
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 1.730168717350679, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 10 kg CO2 eq., 10.491878369364473
• Carbon Footprint Of The Installation Phase A5 : 1.1970382340969554, 1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 35 kg CO2 eq., 35.4571288183959
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 564 kg CO2 eq., 2564.3260258694463
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Will not be Compliant
• ROHS EUR Full Compliance Status : Not compliant
• ROHS EUR Full Compliance Status Id : NOT_COMPLIANT
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Contactor Application : non-reversing
• Energy Efficiency Optimized : False
• Local Signalling : no indicator
• Package Weight Lbs : 5.987 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range Of Product : 8502S
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 613 kg CO2 eq.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2506044EN
• Pep Verification Date : 2025-09-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• Product Compatibility : circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC, circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC, circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC, circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC, circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC, circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse J 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse T 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Carbon Footprint : 2613.202240008654
• Environmental Disclosure : ENVPEP2506044EN
• EU ROHS Directive : Not compliant
• Nema Degree Of Protection : not rated (open device)
• Nema Size : 3
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP2506044EN
• Pep Verification Date : 2025-09-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : 8502S
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Compliance : TAA
