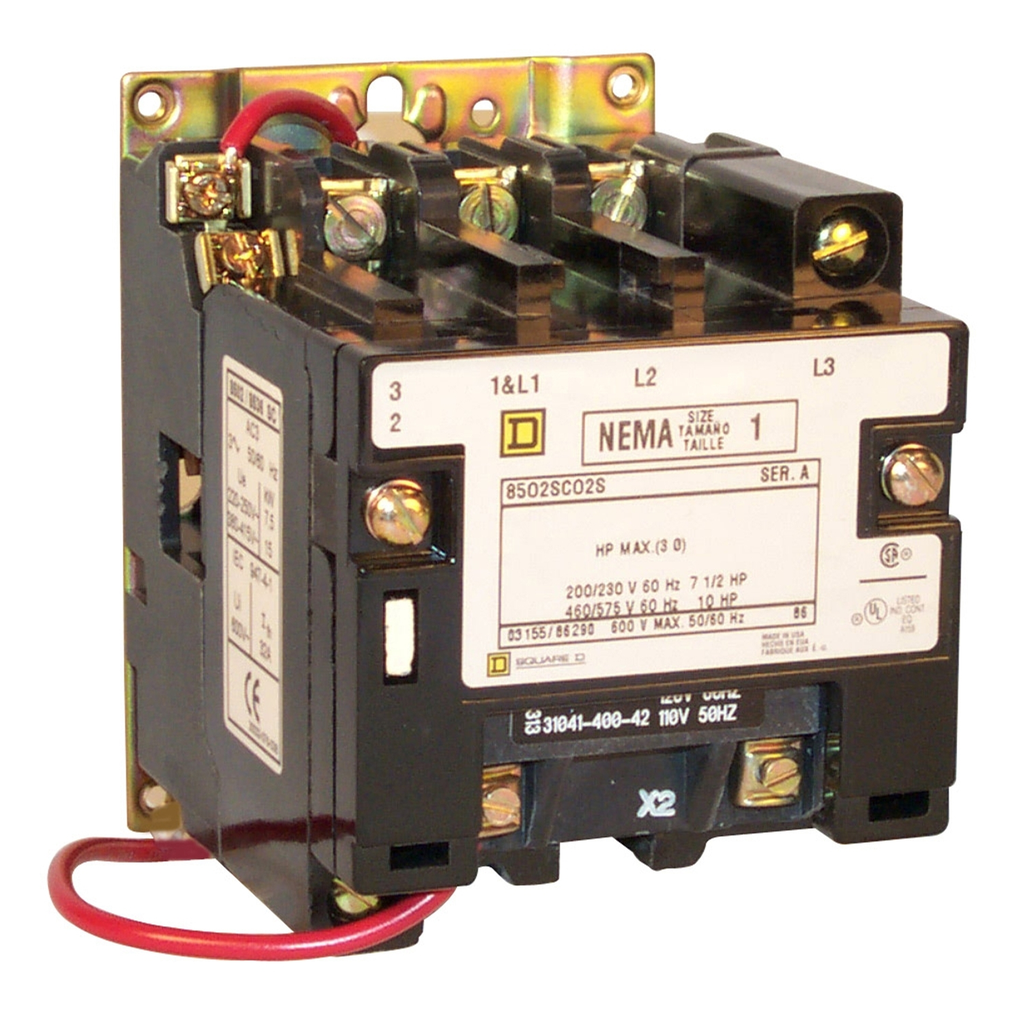

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

• Features
• This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating and 208 VAC coil
• Switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided
• Robust design and reliable build for long mechanical life and electrical endurance
• Serviceable by replacing contacts and coils
• This product is TAA compliant.
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL listed file E78351 CCN NLDX, CSA
• Complementary Attributes
• Rated Power In HP : 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC
• Control Circuit : common control circuit
• Line Rated Current : 27 A
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.42596771160429275, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 2.5831015060035467
• Carbon Footprint Of The Installation Phase A5 : 0.29471093319841524, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 8.729548668501012
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 422 kg CO2 eq., 421.5869519305879
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Will not be Compliant
• ROHS EUR Full Compliance Status : Not compliant
• ROHS EUR Full Compliance Status Id : NOT_COMPLIANT
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Contactor Application : non-reversing
• Control Circuit : common control circuit
• Control Type : no control units
• Electrical Connection : screw clamp terminals
• Energy Efficiency Optimized : False
• Local Signalling : no indicator
• Package Weight Lbs : 1.474 kg
• Phase : 3 phase
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Provided Equipment : fuse not supplied
• Range Of Product : 8502S
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 434 kg CO2 eq.
• Uc Control Circuit Voltage2 : 208 V AC 60 Hz
• Ue Rated Operational Voltage2 : 600 V AC
• Medium Desc : NEMA Contactor, Type S, nonreversing, Size 1, 27A, 10HP at 575VAC, 3 phase, up to 100kA, 3 pole, 208VAC coil, open [TAA]
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2506044EN
• Database Version : 2024-01
• Pep Verification Date : 2025-09-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Uc Control Circuit Voltage5 : 208 V AC 60 Hz
• Ue Rated Operational Voltage5 : 600 V AC
• Environment Attributes Main
• Product Compatibility : circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC, fuse J 60 A maximum, SCCR: 100 kA at 600 V AC, fuse T 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Carbon Footprint : 433.6202807498952
• Environmental Disclosure : ENVPEP2506044EN
• EU ROHS Directive : Not compliant
• Nema Degree Of Protection : not rated (open device)
• Nema Size : 1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506044EN
• Pep Verification Date : 2025-09-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : 3 phase
• Product Or Component Type : contactor
• Provided Equipment : fuse not supplied
• Range Of Product : 8502S
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Compliance : TAA Compliant
• Depth : 107.19 mm
