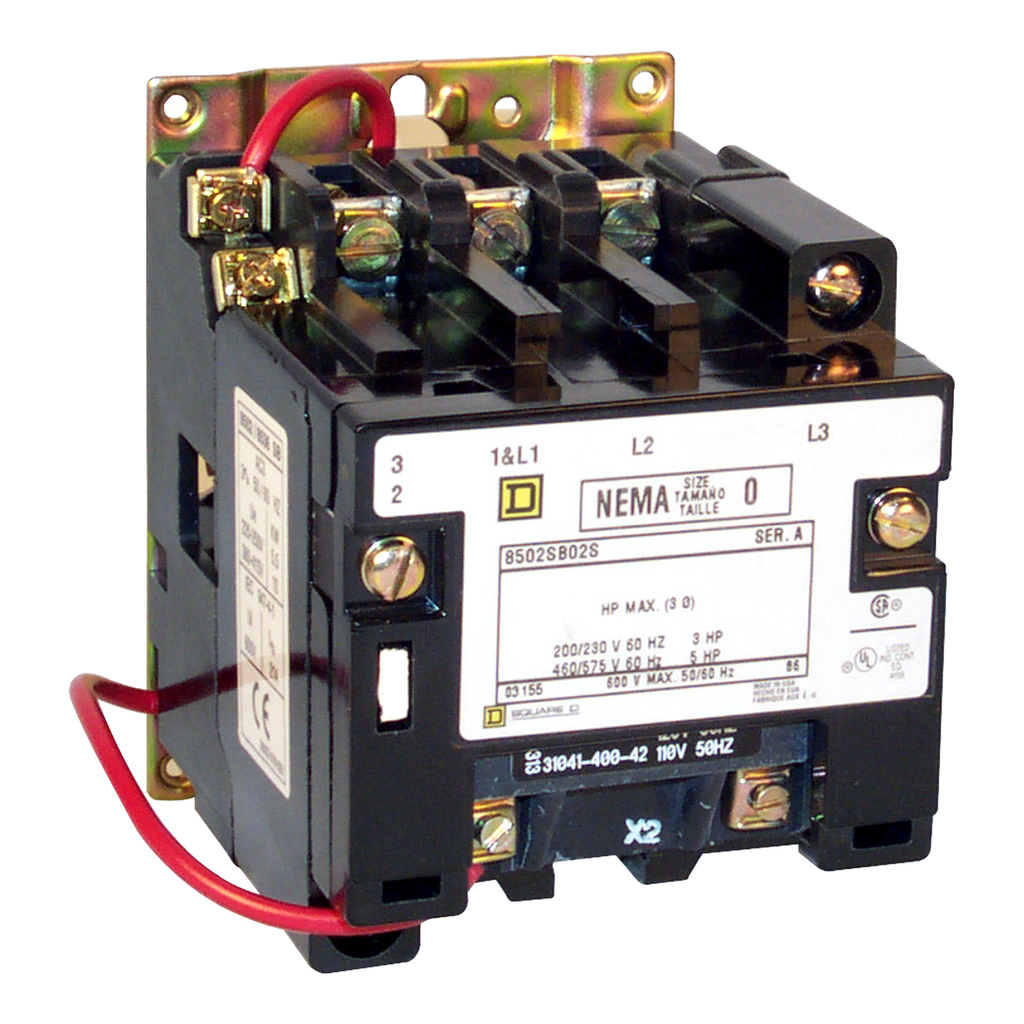

NEMA Contactor, Type S, nonreversing, Size 0, 18A, 5 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 208 VAC coil, open

NEMA Contactor, Type S, nonreversing, Size 0, 18A, 5 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 208 VAC coil, open

SQD8502SBO2V08 8502SBO2V08 785901761532
410.24 / EACH
  • Certifications: CSA, UL Listed File E78351 CCN NLDX
  • Contact Configuration: Without
  • Depth: 107.19 mm
  • Height: 110.24 mm
  • Line Rated Current: 18 A
  • NEMA: 0
  • Number of Phases: 3
  • Warranty Length: 18 mth
  • Width: 81.79 mm
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
  • Product Description
  • Specifications
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
  • Product Or Component Type : contactor
  • Maximum Depth : 107.19 mm
  • Control Type : no control units
  • Range Of Product : 8502S
  • [Ue] Rated Operational Voltage : 600 V AC
  • Maximum Width : 81.79 mm
  • Electrical Connection : screw clamp terminals
  • Product Certifications : UL listed file E78351 CCN NLDX || CSA
  • Nema Degree Of Protection : not rated (open device)
  • Provided Equipment : fuse not supplied
  • Nema Size : 0
  • Contactor Application : non-reversing
  • Poles Description : 3P
  • [Uc] Control Circuit Voltage : 208 V AC 60 Hz
  • Local Signalling : no indicator
  • Rated Power In Hp : 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
  • Auxiliary Contact Composition : without
  • Control Circuit : common control circuit
  • Product Compatibility : circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
  • Warranty : 18 months
  • Maximum Height : 110.24 mm
  • Line Rated Current : 18 A
  • Phase : 3 phase
