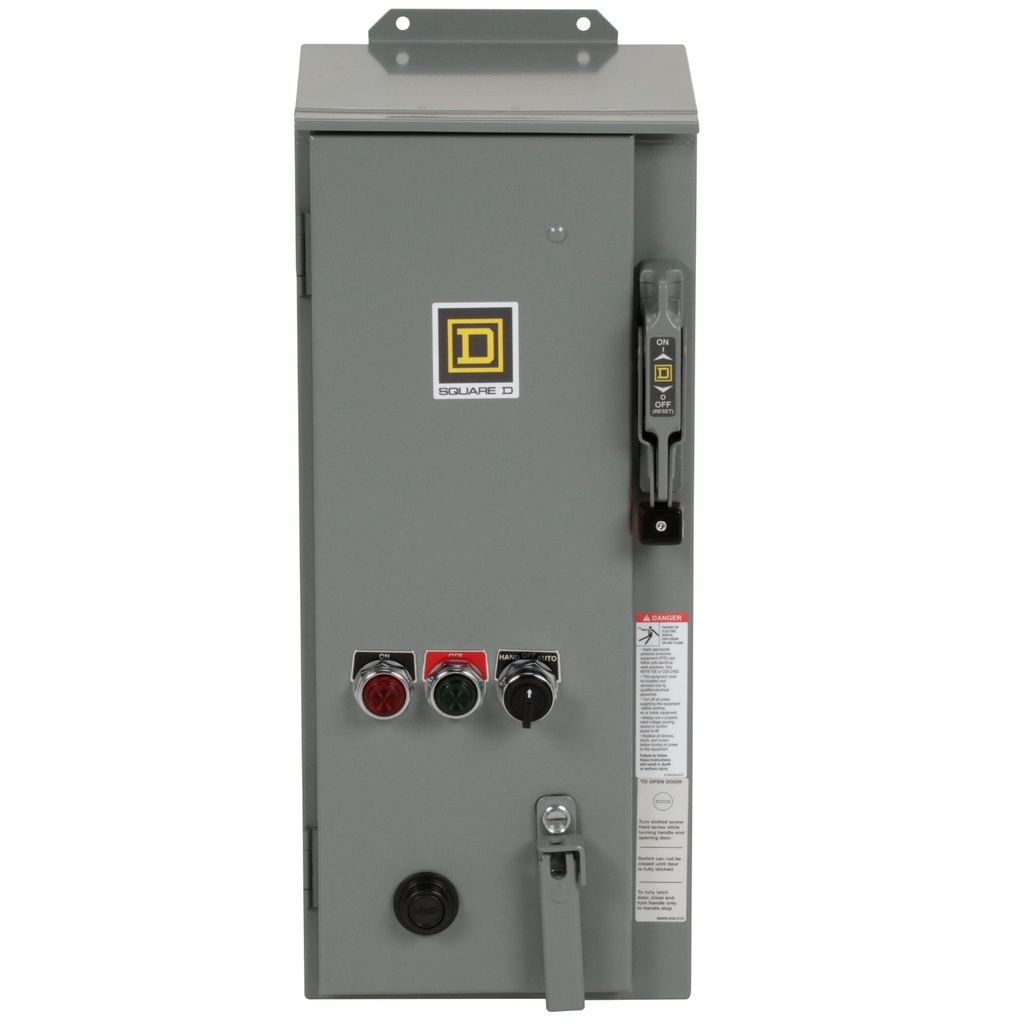

NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120 VAC coil, NEMA 12

NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120 VAC coil, NEMA 12

SQD8539SCASP3 8539SCASP3 785901910602
3470.86 / EACH
  • Certifications: CSA File 584 Class 3211 04, UL Listed File E152395 CCN NKJH, UL Listed File E152395 CCN NKJH7
  • Circuit Breaker Type: EMCP
  • Contact Configuration: 2 NO + 2 NC
  • Depth: 9.84 in
  • Height: 24.24 in
  • Length: 3.25 in
  • Line Rated Current: 27 A
  • NEMA: 1
  • Warranty Length: 18 mth
  • Width: 9.62 in
Type S non-reversing MCP combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 0.25 to 5 HP at 200, 0.25 at 230 VAC and 0.25 to 10 HP at 460 and 575 VAC poly phase. Combination starter has an electronic motor circuit protector (MCP). This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 12/3R dust tight and drip tight enclosure is used to protect this combination starter. Enclosure is 24.00 inches tall, 9.50 inches wide and 9.34 inches deep. A wide variety of accessories are available for Type S starters. This combination starter has a Hand Off Auto selector switch. This combination starter also has a red LED pilot light, a green LED pilot light and two normally open and two normally closed auxiliary contact. Has a SPDT electrical interlock on circuit breaker operating mechanism. It is normally used to disconnect separate control circuit when disconnect is switched to off position. Type S combination starters are UL listed and CSA certified.
  • Product Description
  • Specifications
Type S non-reversing MCP combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 0.25 to 5 HP at 200, 0.25 at 230 VAC and 0.25 to 10 HP at 460 and 575 VAC poly phase. Combination starter has an electronic motor circuit protector (MCP). This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 12/3R dust tight and drip tight enclosure is used to protect this combination starter. Enclosure is 24.00 inches tall, 9.50 inches wide and 9.34 inches deep. A wide variety of accessories are available for Type S starters. This combination starter has a Hand Off Auto selector switch. This combination starter also has a red LED pilot light, a green LED pilot light and two normally open and two normally closed auxiliary contact. Has a SPDT electrical interlock on circuit breaker operating mechanism. It is normally used to disconnect separate control circuit when disconnect is switched to off position. Type S combination starters are UL listed and CSA certified.
  • Nema Degree Of Protection : NEMA 12 painted sheet steel with external reset
  • Disconnector Device Type : circuit breaker, 30 A, electrical SPDT
  • Warranty : 18 months
  • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
  • [Ue] Rated Operational Voltage : 600 V AC
  • Range Of Product : S
  • Maximum Height : 24.24 in
  • Product Certifications : CSA file 584 class 3211 04 || UL listed file E152395 CCN NKJH || UL listed file E152395 CCN NKJH7
  • Breaking Capacity : 100 kA 480 V AC || 35 kA 600 V AC
  • Product Or Component Type : Combination Starter
  • Poles Description : 3P
  • Maximum Depth : 9.84 in
  • Motor Starter Type : non reversing
  • Maximum Horse Power Rating : 0.25-5 hp 200 V AC, 3 phase || 0.25-7.5 hp 230 V AC, 3 phase || 0.25-10 hp 460 V AC, 3 phase || 0.25-10 hp 575 V AC, 3 phase
  • Circuit Breaker Type : eMCP
  • Auxiliary Contact Composition : 2 NO + 2 NC
  • Nema Size : 1
  • Control Circuit : separate control circuit
  • Thermal Overload Type : melting alloy 3
  • Local Signalling : red indicator on LED || green indicator off LED
  • Maximum Width : 9.62 in
  • Length : 3.25 in
  • Control Type : selector switch HAND-OFF-AUTO)
  • Line Rated Current : 27 A
