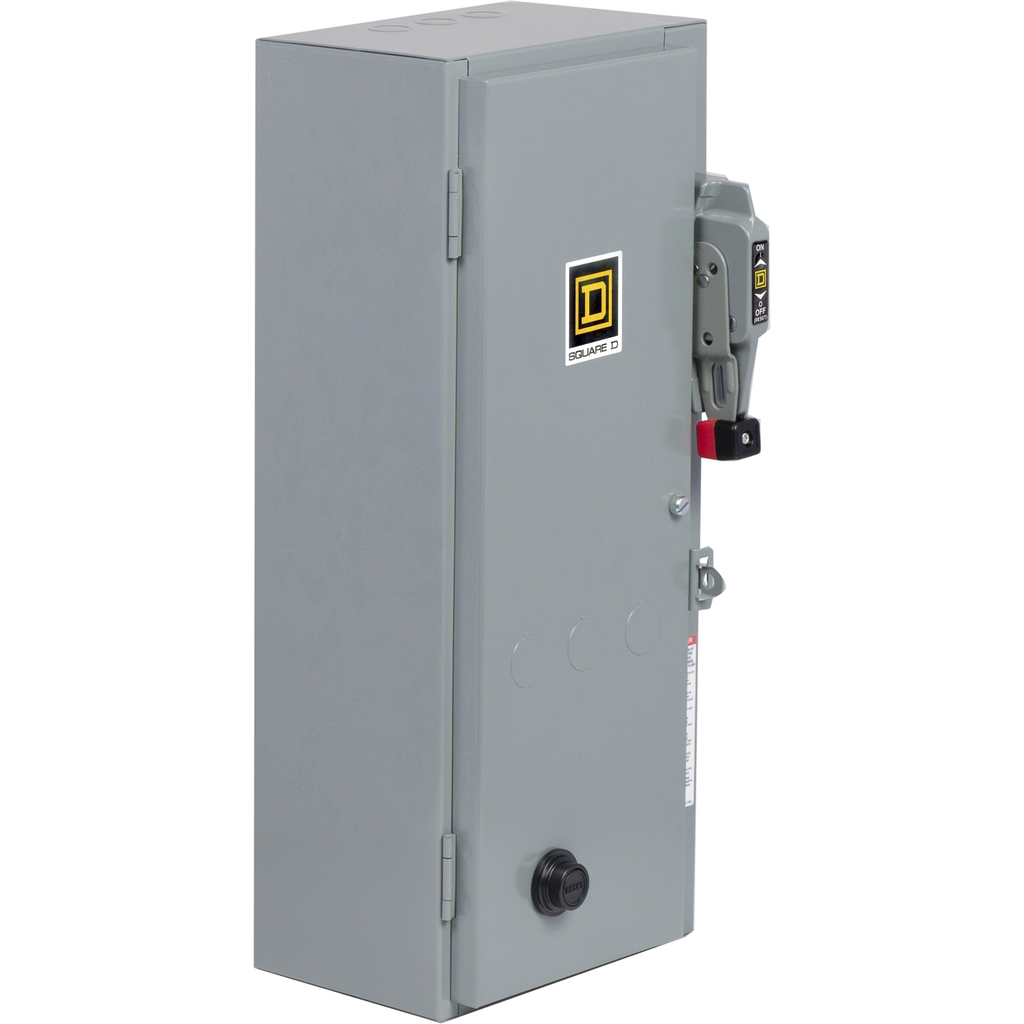

Type S nonreversing circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. This circuit breaker combination starter has a HHL Mag-Gard electronic motor circuit protector. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Horse Power Rating : 0.25-5 hp 200 V AC, 3 phase, 0.25-7.5 hp 230 V AC, 3 phase, 0.25-10 hp 460 V AC, 3 phase, 0.25-10 hp 575 V AC, 3 phase
• Uc Control Circuit Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz
• Control Circuit : separate control circuit
• Ue Rated Operational Voltage : 600 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-19
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Control Circuit : separate control circuit
• Control Type : no control units
• Disconnector Device Type : Mag-Gard circuit breaker
• Energy Efficiency Optimized : False
• Local Signalling : no indicator
• Motor Starter Type : non reversing
• Poles Description : 3P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Combination Starter
• Range Of Product : S
• Returnability : No
• Sustainable Packaging : Yes
• Thermal Overload Type : melting alloy 3
• Warranty In Months : 18
• Offer Owner Code : 190788
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 1 painted sheet steel with external reset
• Nema Size : 1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : Combination Starter
• Range Of Product : S
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States
• Compliance : TAA Compliant
