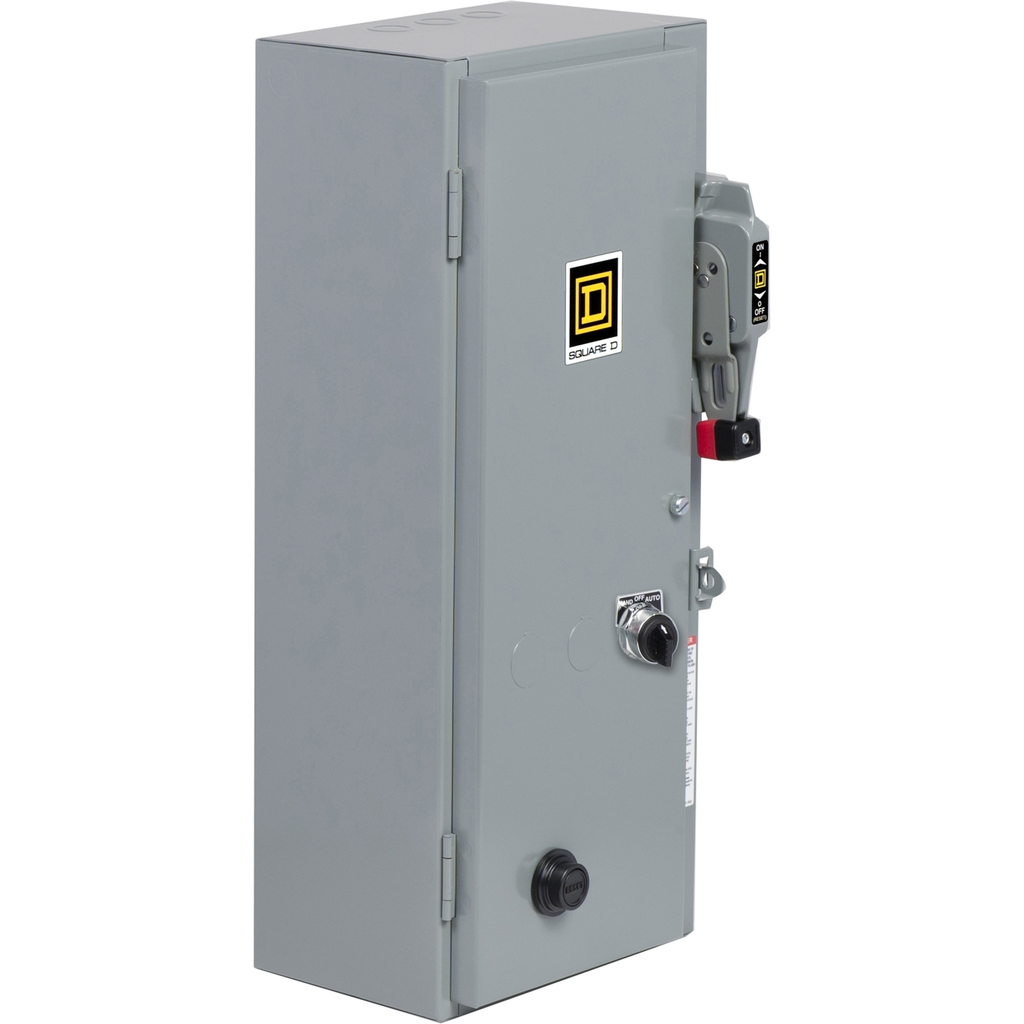

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase. This fusible combination starter has 30 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. This combination starter is supplied with fused transformer. Transformer has a 480 VAC primary and a 120 VAC secondary This device has factory installed HAND-OFF-AUTO selector switch Type S combination starters are UL listed and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Horse Power Rating : 5-5 hp 460 V AC, 3 phase, 5-5 hp 460 V AC, 3 phase, 5-5 hp 460 V AC, 3 phase, 5-5 hp 460 V AC, 3 phase, 5-5 hp 575 V AC, 3 phase, 5-5 hp 575 V AC, 3 phase, 5-5 hp 575 V AC, 3 phase, 5-5 hp 575 V AC, 3 phase
• UC Control Circuit Voltage : 120 V AC 60 Hz secondary circuit, 120 V AC 60 Hz secondary circuit, 120 V AC 60 Hz secondary circuit, 120 V AC 60 Hz secondary circuit, 480 V AC 60 Hz primary circuit, 480 V AC 60 Hz primary circuit, 480 V AC 60 Hz primary circuit, 480 V AC 60 Hz primary circuit
• UE Rated Operational Voltage : 600 V AC, 600 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Control Type : selector switch HAND-OFF-AUTO), selector switch HAND-OFF-AUTO)
• Disconnector Device Type : fusible disconnect switch H, 30 A, fusible disconnect switch H, 30 A, fusible disconnect switch H, 30 A
• Provided Equipment : 2 fuses primary circuit, 2 fuses primary circuit, 1 fuse secondary circuit, 1 fuse secondary circuit
• Thermal Overload Type : melting alloy 3, melting alloy 3
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-19
• HTML Description : STARTER MOTOR CONTROL <1000VAC
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Will not be Compliant
• ROHS EUR Full Compliance Status : Not compliant
• ROHS EUR Full Compliance Status Id : NOT_COMPLIANT
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Local Signalling : no indicator
• Motor Starter Type : non reversing
• Package Weight Lbs : 15.422 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Combination Starter
• Range Of Product : S
• Returnability : Yes
• Sustainable Packaging : Yes
• Product Kit Identifier : N
• Environment Attributes Main
• Nema Degree Of Protection : NEMA 1 painted sheet steel with external reset, NEMA 1 painted sheet steel with external reset, NEMA 1 painted sheet steel with external reset
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• EU ROHS Directive : Not compliant
• Nema Size : 0
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Provided Equipment : 2 fuses primary circuit, 2 fuses primary circuit, 1 fuse secondary circuit, 1 fuse secondary circuit
• Product Or Component Type : Combination Starter
• Range Of Product : S
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Compliance : TAA
