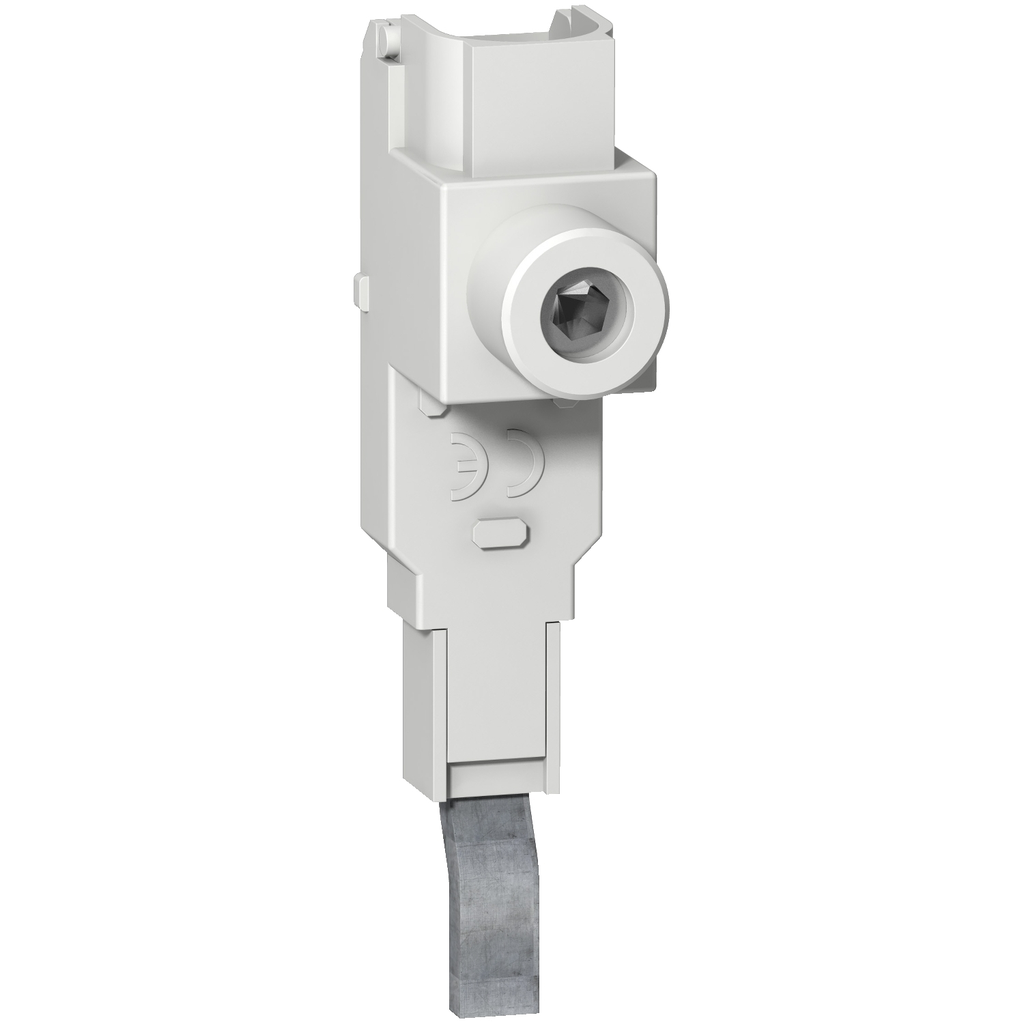

This Multi9 product is a set of 4 cable connectors. It accepts a rigid or flexible cable cross-section from 6mm² to 35mm². It is compatible with C60BP device. The tightening torque is 3.5N.m. The color of the device is white (RAL 9001).

• Prop 65
• WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : White RAL 9001)
• Conformance Attributes
• Product Certifications : cURus, IEC
• Standards : UL 486E, EN/IEC 61439-1
• Complementary Attributes
• Line Rated Current : 63 A
• Ui Rated Insulation Voltage : 1000 V
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Distribution Type : 2 L, 3 L, 1 L
• Connections Terminals : screw terminal top connector 6-35 mm² rigid, screw terminal top connector 6-35 mm² flexible
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : Multi9 COMB BUSBAR
• H And D Enrichment Assignment : no
• H And D Enrichment Function : COMB BUSBAR
• H And D Enrichment Class 3 : Busbars
• H And D Enrichment Class 4 : Busbar accessories
• H And D Offer Quality Leader : System
• H And Dod Responsibility : Multi9
• H And Dod Platform : Enclosures & Acc
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 0844
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Connection Pitch : 18 mm
• Energy Efficiency Optimized : False
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : connector
• Quantity Per Set : set of 4
• Range : Multi9
• Range Of Product : Multi9
• Returnability : Yes
• Sustainable Packaging : No
• Tightening Torque : 3.5-3.5 N.m
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Accessory Separate Part Category : connection accessory
• Warranty In Months : 18
• Offer Owner Code : 190788
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : connector
• Range Of Product : Multi9
• ETIM
• ETIM 8 : EC002498
• ETIM 9 : EC002498
• Specifications
• Country of Origin : United States
