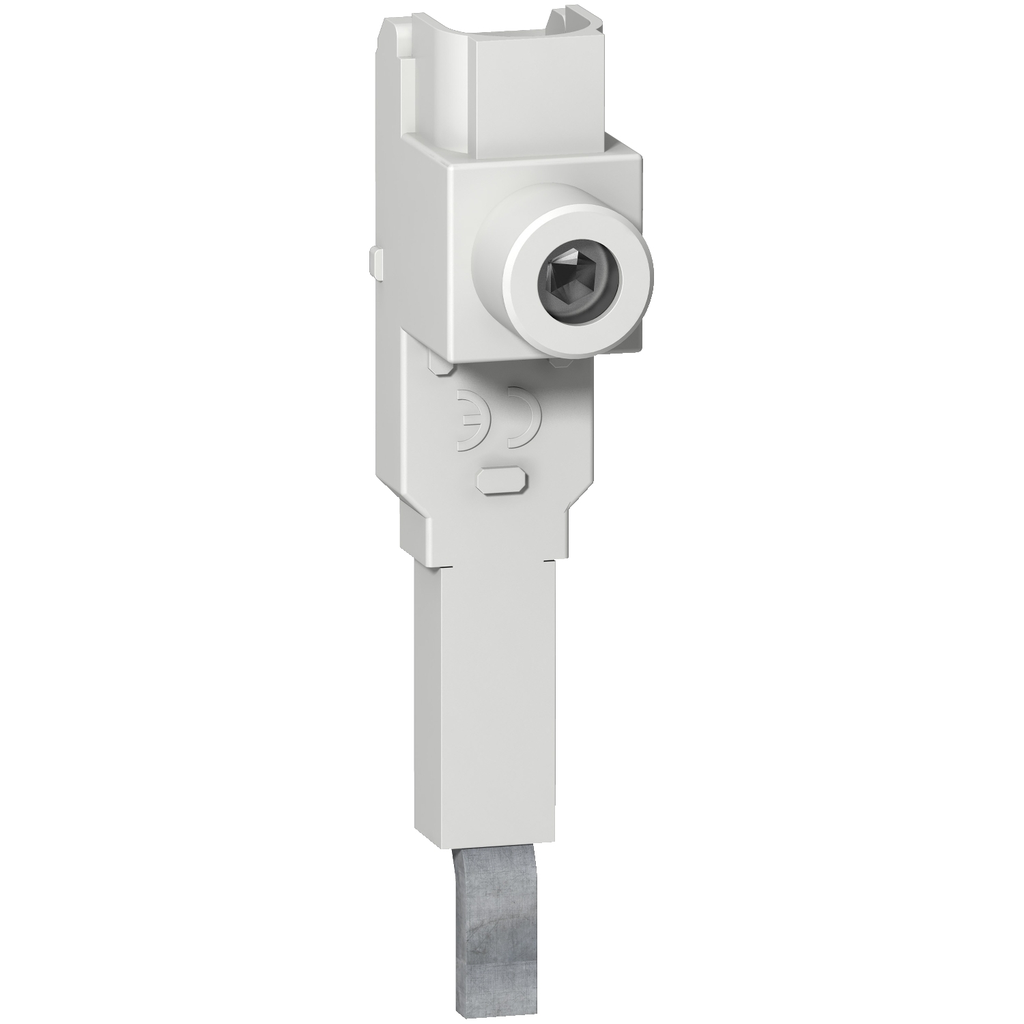

Multi9 - terminals for M9XC comb busbar - set of 4

Multi9 Comb 4 terminals for M9

SQDM9XCPC04 M9XCPC04 3606481192936
209.11 / EA
http://schema.org/OutOfStock
Mayer-DDS-Multi9 - terminals for M9XC comb busbar - set of 4-1
Discover the modern Multi9 connector for comb busbar, designed for safety and seamless integration. Dedicated to (Line) installations, the connector ensures a reliable distribution type (L1), (L2), (L3), (L1 + auxiliary), (L3 + auxiliary). It is a set of 4 connectors and is compatible with Multi9 C60BP comb busbar. Its current rating is 63A, and the rated insulation voltage is 1000V. Additionally, the connector is IEC and cURus certified, ensuring compliance with safety standards. Its colour is white (RAL 9001). This connector complies with EN/IEC 61439-1 and UL 486E standards. The Multi9 protection range provides security and simplicity with devices easy to install as well as to dismount. Composed of robust and stylish products, they answer all the needs for efficiency and reliability.
QTY
  • Product Description
  • Features
  • Specifications
Discover the modern Multi9 connector for comb busbar, designed for safety and seamless integration. Dedicated to (Line) installations, the connector ensures a reliable distribution type (L1), (L2), (L3), (L1 + auxiliary), (L3 + auxiliary). It is a set of 4 connectors and is compatible with Multi9 C60BP comb busbar. Its current rating is 63A, and the rated insulation voltage is 1000V. Additionally, the connector is IEC and cURus certified, ensuring compliance with safety standards. Its colour is white (RAL 9001). This connector complies with EN/IEC 61439-1 and UL 486E standards. The Multi9 protection range provides security and simplicity with devices easy to install as well as to dismount. Composed of robust and stylish products, they answer all the needs for efficiency and reliability.
  • Connections Terminals
    • screw terminal top connector 6-35 mm² rigid
    • screw terminal top connector 6-35 mm² flexible
  • Range Compatibility
    • Multi9 C60BP comb busbar
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • UL 486E
    • EN/IEC 61439-1
  • Distribution Type
    • 2 L
    • 1 L
    • 1 L + auxiliary
    • 3 L + auxiliary
    • 3 L
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Color
    • White RAL 9001)
  • Product Certifications
    • cURus
    • IEC
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0002526_3D-CAD
  • Complementary Attributes
    • Line Rated Current : 63 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 0844
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : Multi9 COMB BUSBAR
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : COMB BUSBAR
    • H And D Enrichment Class 3 : Busbars
    • H And D Enrichment Class 4 : Busbar accessories
    • H And D Offer Quality Leader : System
    • H And Dod Responsibility : Multi9
    • H And Dod Platform : Enclosures & Acc
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 150.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : connector
    • Range : Multi9
    • Range Of Product : Multi9
    • Returnability : Yes
    • Sustainable Packaging : No
    • Tightening Torque : 3.5-3.5 N.m
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : connector
    • Range Of Product : Multi9
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=459718387&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : North Macedonia
