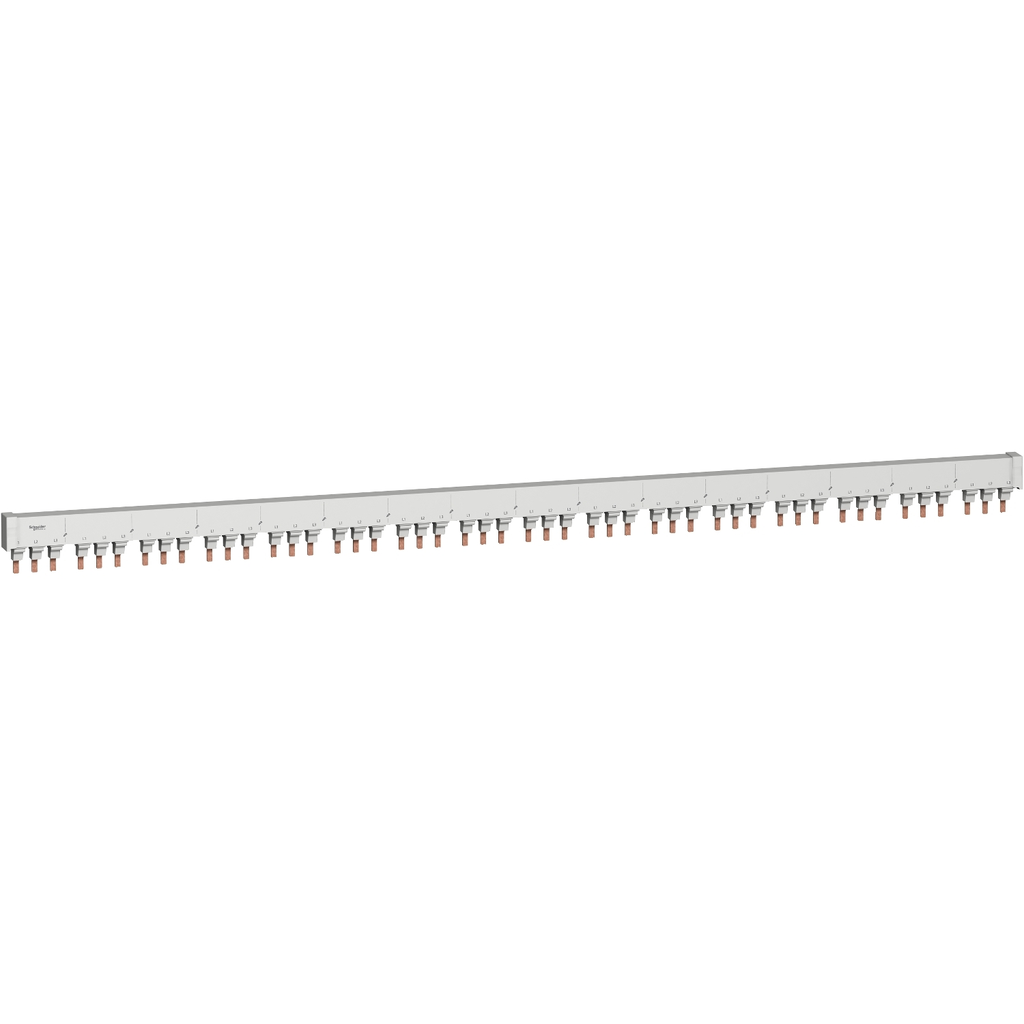

Multi9 - comb busbar - 3L with Aux - 18 mm pitch - 48 modules - 80A

Multi9 - comb busbar - 3L with Aux - 18 mm pitch - 48 modules - 80A

SQDM9XCA348 M9XCA348 785901975878
758.17 / EA
  • Mounting Type: Horizontal
  • Standard: UL 508
  • Voltage: 277 V, 480 V
  • Width: 34.02 in, 864 mm
  • Specifications
  • Main
    • Range : Multi 9
    • Accessory / Separate Part Cate : Connection accessory
    • Length In 18 mm Modules : 48
    • Product Or Component Type : Comb busbar
    • Lines Description : 3L
  • Ordering And Shipping Details
    • GTIN : 00785901975878
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • Category : 00949 - M9 GEN 2 CB UL489
    • Discount Schedule : DE2
  • Environment
    • IP Degree Of Protection : IP20 with end-pieces and tooth covers
    • Pollution Degree : 3
    • Standards : UL 508
    • Fire Resistance : 1760 °F (960 °C) 30 s ) IEC 60695-2-1
  • Complementary
    • Poles Configuration For 1 Way : 1 x 3P
    • Width : 34.02 in (864 mm)
    • Distance Between Way : 2.48 in (63 mm)
    • Ue Rated Operational Voltage : 480 V AC 50/60 Hz Ph/Ph || 277 V AC 50/60 Hz Ph/N
    • Connector Type : Tooth
    • 9 mm Pitches : 96
    • Mounting Location : Top on tunnel type terminals
    • Number Of Ways : 13 ways Aux + 3 L
    • Insulation : Insulated
    • Connection Pitch : 0.71 in (18 mm)
    • Range Compatibility : Multi 9 C60BP
    • Ui Rated Insulation Voltage : 1000 V AC 50/60 Hz UL 508
    • Ie Rated Operational Current : 80 A 104 °F (40 °C)
    • Device Presentation : Cuttable
    • Colour : Light gray RAL 7035)
    • Mounting Mode : Horizontal
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
