Multi9 - comb busbar - 3L - 18 mm pitch - 57 modules - 80A

MULTI9 COMB 3P57 MOD CUT FOR C

SQDM9XCP357 M9XCP357 3606481192899
1355.21 / EA
http://schema.org/OutOfStock

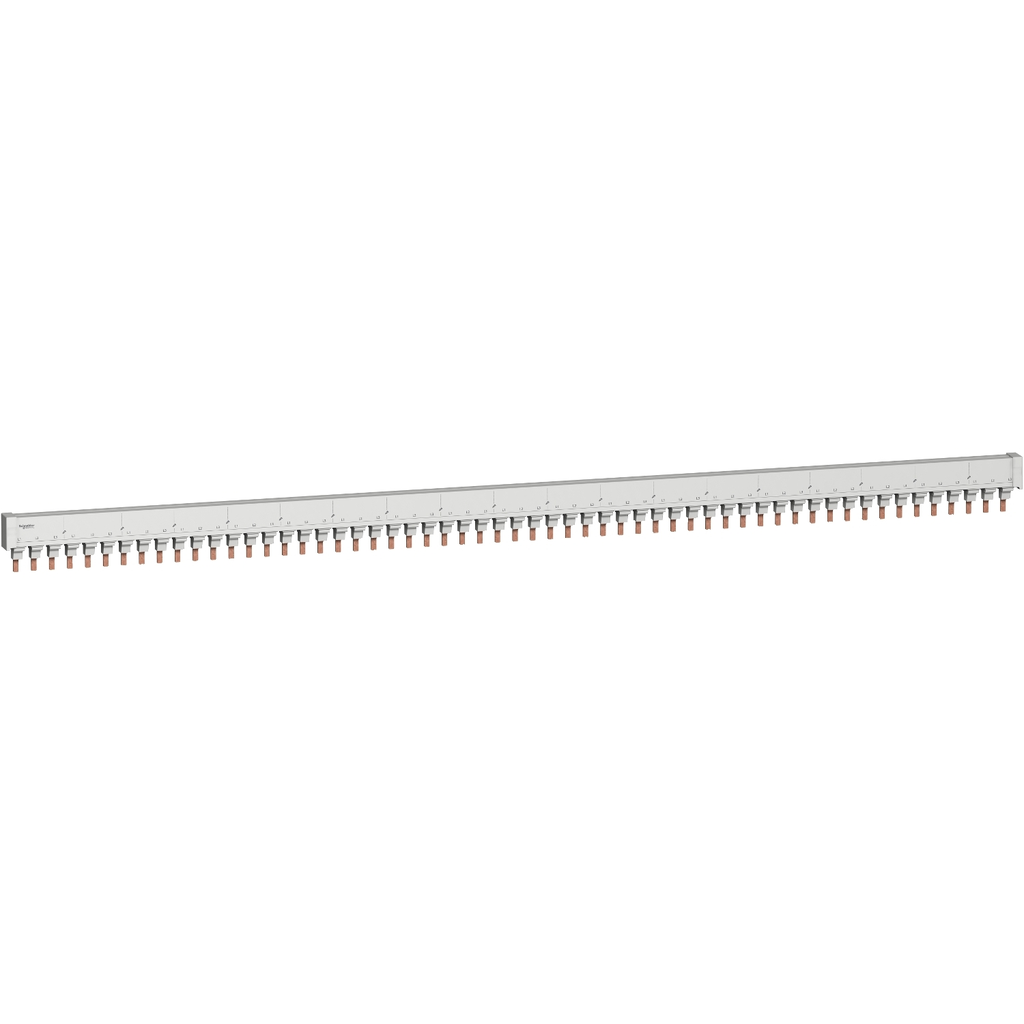

Mayer-DDS-Multi9 - comb busbar - 3L - 18 mm pitch - 57 modules - 80A-1
  • Connection Type: Tooth
Experience the efficient and safe power distribution with the Multi9 comb busbar, featuring a horizontal, insulated, cuttable design for customized installations. Dedicated to (Line) installations, the comb busbar ensures a reliable distribution type (L1, L2, L3). It has a width of 57 modules of 18mm, ensuring compatibility with various installations. The comb busbar is suitable for 19 devices of 3P and features a 54mm distance between ways, ensuring optimal compatibility and efficiency. It is compatible with Multi9 C60BP. Its current rating is 80A at 40°C, and the rated operational voltage is 480VAC (phase and phase) and 277 VAC (phase and neutral). The rated insulation voltage is 1000VAC, conforming to UL 508 standard. Additionally, the pollution degree 3 ensures reliable performance in challenging environments. Its colour is light grey (RAL 7035). The resistance to flames and abnormal heat is rated at 960°C within 30 seconds, in accordance with IEC 60695-2-1 standard, ensuring superior safety and durability. This comb busbar complies with EN/IEC 61439-1, UL 508, and UL 489 standards. The Multi9 protection range provides security and simplicity with devices easy to install as well as to dismount. Composed of robust and stylish products, they answer all the needs for efficiency and reliability.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0002525_3D-CAD
  • Physical Attributes
    • Color : Light gray RAL 7035)
  • Conformance Attributes
    • Standards : UL 508, UL 489, EN/IEC 61439-1
  • Complementary Attributes
    • Ue Rated Operational Voltage : 480 V AC 50/60 Hz Ph/Ph, 277 V AC 50/60 Hz Ph/N
    • Ie Rated Operational Current : 80 A 40 °C
    • Ui Rated Insulation Voltage : 1000 V AC 50/60 Hz UL 508
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Carbon Footprint Of The Distribution Phase A4 : 0.21171444056372246, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 2.291513024701662
    • Carbon Footprint Of The Installation Phase A5 : 0.014691220570199967, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 5.311424585677274
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 5 kg CO2 eq., 4.679872620562106
    • Medium Desc : Multi9 - comb busbar - 3L - 18 mm pitch - 57 modules - 80A
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • H And D Domain : Safety
    • H And D Subrange : Multi9 COMB BUSBAR
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : COMB BUSBAR
    • H And D Enrichment Class 3 : Busbars
    • H And D Enrichment Class 4 : Comb busbar 3P
    • H And Dod Responsibility : Multi9
    • H And Dod Platform : Enclosures & Acc
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Connection Pitch : 18 mm
    • Connector Type : tooth
    • Distance Between Way : 54 mm
    • Energy Efficiency Optimized : False
    • Fire Resistance : 960 °C 30 s ) IEC 60695-2-1
    • Insulation : insulated
    • Lines Description : 3L
    • Mounting Location : top tunnel type terminals
    • Mounting Mode : horizontal
    • Number Of Ways : 19 ways 3 L
    • Poles Configuration For 1 Way : 1 x 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : comb busbar
    • Range : Multi9
    • Returnability : Yes
    • Software Version : v6.2.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 13 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category : connection accessory
    • Ie Rated Operational Current : 80 A 40 °C
    • Pep Code : ENVPEP2503006EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-04-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Poland, PL
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Width Nominal : 1026 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 12.509215892074966
    • 9 Mm Pitches : 114
    • Environmental Disclosure : ENVPEP2503006EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20 with end-pieces and tooth covers
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503006EN
    • Pep Verification Date : 2025-04-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : comb busbar
  • ETIM
    • ETIM 8 : EC000215
    • ETIM 9 : EC000215
  • Overview Attributes
    • Device Presentation : cuttable
