Multi9 - comb busbar - 2L - 18 mm pitch - 12 modules - 115A

Multi9 Comb 2P12 mod for C60BP

SQDM9XUP212 M9XUP212 3606481192820
142.96 / EA
http://schema.org/OutOfStock

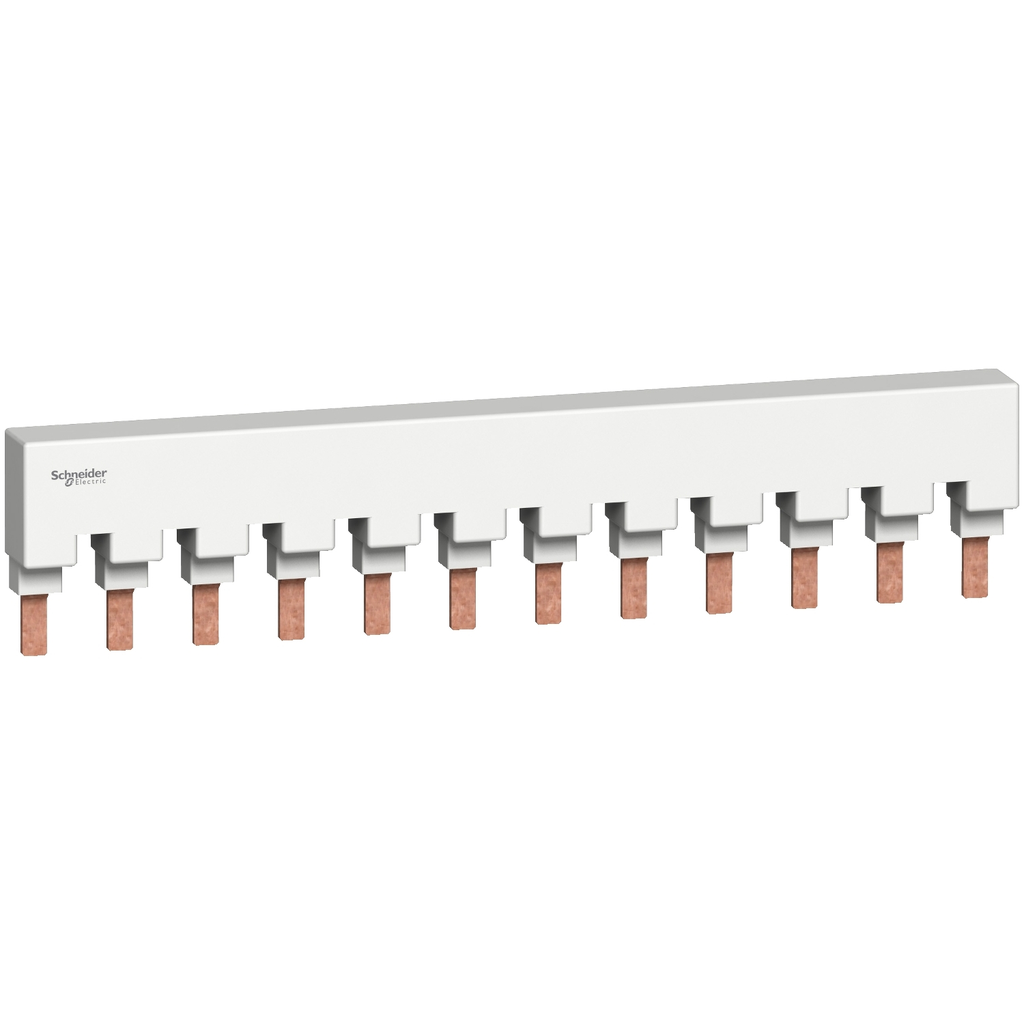

Mayer-DDS-Multi9 - comb busbar - 2L - 18 mm pitch - 12 modules - 115A-1
  • Connection Type: Tooth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0002528_3D-CAD
  • Physical Attributes
    • Color : Light gray RAL 7035)
  • Conformance Attributes
    • Standards : UL 508, UL 489, EN/IEC 61439-1
  • Complementary Attributes
    • Ue Rated Operational Voltage : 480 V AC 50/60 Hz Ph/Ph, 277 V AC 50/60 Hz Ph/N
    • Ie Rated Operational Current : 115 A 40 °C
    • Ui Rated Insulation Voltage : 1000 V AC 50/60 Hz UL 508
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Carbon Footprint Of The Distribution Phase A4 : 0.028578533299235265, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.30932269479443925
    • Carbon Footprint Of The Installation Phase A5 : 0.0019831124185669376, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.7169691589481719
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 kg CO2 eq., 1.749877384889777
    • Medium Desc : Multi9 - comb busbar - 2L - 18 mm pitch - 12 modules - 115A
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • H And D Domain : Safety
    • H And D Subrange : Multi9 COMB BUSBAR
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : COMB BUSBAR
    • H And D Enrichment Class 3 : Busbars
    • H And D Enrichment Class 4 : Comb busbar 2P
    • H And Dod Responsibility : Multi9
    • H And Dod Platform : Enclosures & Acc
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Connection Pitch : 18 mm
    • Connector Type : tooth
    • Distance Between Way : 36 mm
    • Energy Efficiency Optimized : False
    • Fire Resistance : 960 °C 30 s ) IEC 60695-2-1
    • Insulation : insulated
    • Lines Description : 2L
    • Mounting Location : top tunnel type terminals
    • Mounting Mode : horizontal
    • Number Of Ways : 6 ways 2 L
    • Poles Configuration For 1 Way : 1 x 2P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : comb busbar
    • Range : Multi9
    • Returnability : Yes
    • Software Version : v6.2.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category : connection accessory
    • Ie Rated Operational Current : 115 A 40 °C
    • Pep Code : ENVPEP2503006EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-04-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Poland, PL
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Width Nominal : 216 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2.8067308843501904
    • 9 Mm Pitches : 24
    • Environmental Disclosure : ENVPEP2503006EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20 with end-pieces and tooth covers
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503006EN
    • Pep Verification Date : 2025-04-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : comb busbar
  • ETIM
    • ETIM 8 : EC000215
    • ETIM 9 : EC000215
  • Overview Attributes
    • Device Presentation : uncuttable
