SQUARE D

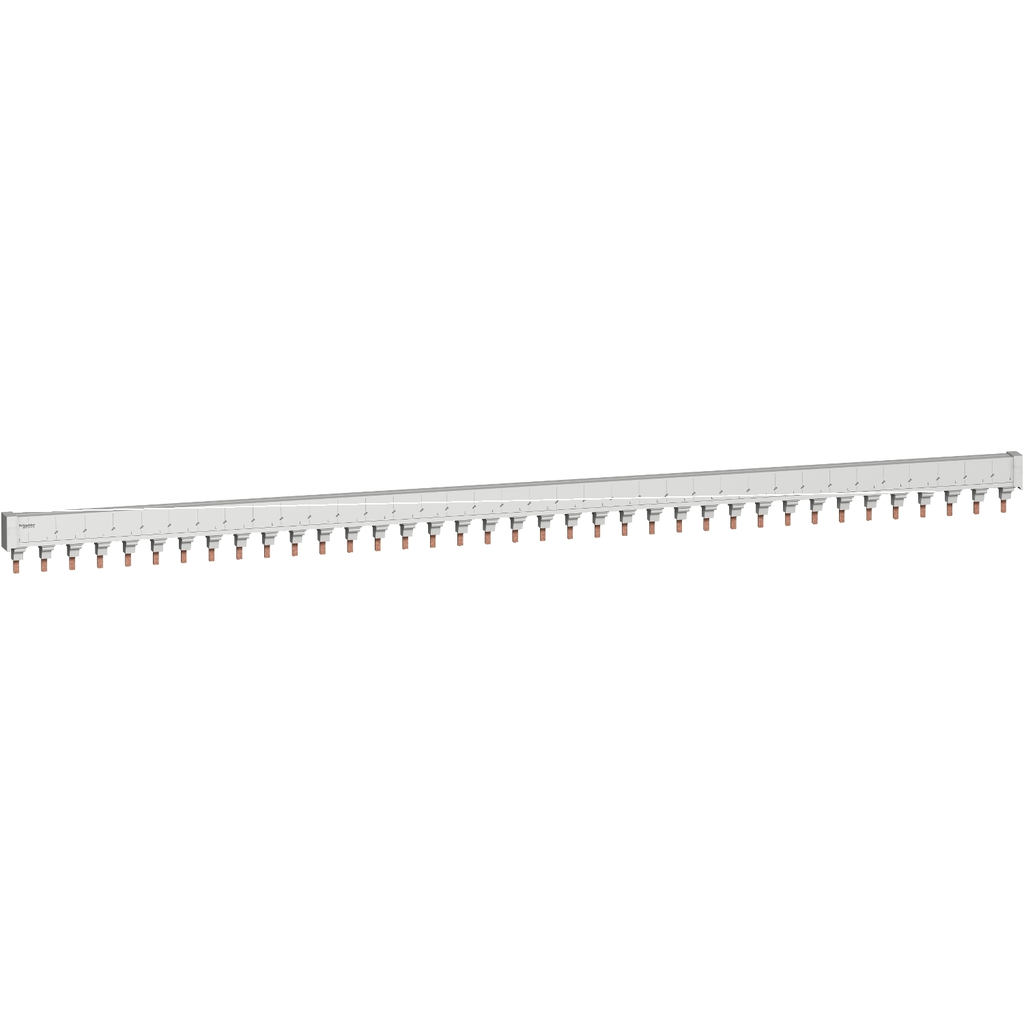

Multi9 - comb busbar - 1L with Aux - 18 mm pitch - 37 modules - 80A

Multi9 Comb Aux1P37 mod cut fo

SQDM9XCA137 M9XCA137 3606481192905
726.07 / EA
http://schema.org/OutOfStock
Multi9 - comb busbar - 1L with Aux - 18 mm pitch - 37 modules - 80A
Experience the efficient and safe power distribution with the Multi9 comb busbar, featuring a horizontal, insulated, cuttable design for customized installations. Dedicated to (Line) installations, the comb busbar ensures a reliable distribution type (L1). It has a width of 37 modules of 18mm, ensuring compatibility with various installations. The comb busbar is suitable for 24 devices of 1P with an auxiliary and features a 27mm distance between ways, ensuring optimal compatibility and efficiency. It is compatible with Multi9 C60BP. Its current rating is 80A at 40°C, and the rated operational voltage is 480VAC (phase and phase) and 277 VAC (phase and neutral). The rated insulation voltage is 1000VAC, conforming to UL 508 standard. Additionally, the pollution degree 3 ensures reliable performance in challenging environments. Its colour is light grey (RAL 7035). The resistance to flames and abnormal heat is rated at 960°C within 30 seconds, in accordance with IEC 60695-2-1 standard, ensuring superior safety and durability. This comb busbar complies with EN/IEC 61439-1 and UL 489 standards. The Multi9 protection range provides security and simplicity with devices easy to install as well as to dismount. Composed of robust and stylish products, they answer all the needs for efficiency and reliability.
QTY
  • Product Description
  • Features
  • Specifications
Experience the efficient and safe power distribution with the Multi9 comb busbar, featuring a horizontal, insulated, cuttable design for customized installations. Dedicated to (Line) installations, the comb busbar ensures a reliable distribution type (L1). It has a width of 37 modules of 18mm, ensuring compatibility with various installations. The comb busbar is suitable for 24 devices of 1P with an auxiliary and features a 27mm distance between ways, ensuring optimal compatibility and efficiency. It is compatible with Multi9 C60BP. Its current rating is 80A at 40°C, and the rated operational voltage is 480VAC (phase and phase) and 277 VAC (phase and neutral). The rated insulation voltage is 1000VAC, conforming to UL 508 standard. Additionally, the pollution degree 3 ensures reliable performance in challenging environments. Its colour is light grey (RAL 7035). The resistance to flames and abnormal heat is rated at 960°C within 30 seconds, in accordance with IEC 60695-2-1 standard, ensuring superior safety and durability. This comb busbar complies with EN/IEC 61439-1 and UL 489 standards. The Multi9 protection range provides security and simplicity with devices easy to install as well as to dismount. Composed of robust and stylish products, they answer all the needs for efficiency and reliability.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : Light gray RAL 7035), Light gray RAL 7035)
  • Conformance Attributes
    • Standards : UL 489, EN/IEC 61439-1
  • Complementary Attributes
    • IE Rated Operational Current : 80 A 40 °C, 80 A 40 °C
    • UE Rated Operational Voltage : 480 V AC 50/60 Hz Ph/Ph, 480 V AC 50/60 Hz Ph/Ph, 480 V AC 50/60 Hz Ph/Ph, 480 V AC 50/60 Hz Ph/Ph, 277 V AC 50/60 Hz Ph/N, 277 V AC 50/60 Hz Ph/N, 277 V AC 50/60 Hz Ph/N, 277 V AC 50/60 Hz Ph/N
    • UI Rated Insulation Voltage : 1000 V AC 50/60 Hz UL 508, 1000 V AC 50/60 Hz UL 508, 1000 V AC 50/60 Hz UL 508, 1000 V AC 50/60 Hz UL 508
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Fire Resistance : 960 °C 30 s ) IEC 60695-2-1, 960 °C 30 s ) IEC 60695-2-1, 960 °C 30 s ) IEC 60695-2-1
    • Mounting Location : top tunnel type terminals, top tunnel type terminals
    • Number Of Ways : 24 ways Aux + 1 L, 24 ways Aux + 1 L
    • Poles Configuration For 1 Way : 1 x 1P, 1 x 1P
    • Range Compatibility : Multi9 Multi9 C60BP, Multi9 Multi9 C60BP
    • IE Rated Operational Current : 80 A 40 °C, 80 A 40 °C
    • Carbon Footprint Of The Distribution Phase A4 : 0.136671489179336, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.479277921363883
    • Carbon Footprint Of The Installation Phase A5 : 0.00948386415137794, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 3.4287708757861557
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 kg CO2 eq., 1.0164488720692633
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : Multi9 COMB BUSBAR
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : COMB BUSBAR
    • H And D Enrichment Class 3 : Busbars
    • H And D Enrichment Class 4 : Comb busbar 1P
    • H And Dod Responsibility : Multi9
    • H And Dod Platform : Enclosures & Acc
    • Connection Pitch : 18 mm
    • Connector Type : tooth
    • Distance Between Way : 27 mm
    • Energy Efficiency Optimized : False
    • Lines Description : 1L
    • Package Weight Lbs : 703.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : comb busbar
    • Range : Multi9
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2503006EN
    • Pep Verification Date : 2025-04-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Distribute electrical power to devices installed on a row of a final distribution board for 20 years.Distribute electrical power to devices installed on a row of a final distribution board for 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • IP Degree Of Protection : IP20 with end-pieces and tooth covers, IP20 with end-pieces and tooth covers
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 6.070653022550015
    • 9 MM Pitches : 74
    • Environmental Disclosure : ENVPEP2503006EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2503006EN
    • Pep Verification Date : 2025-04-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : comb busbar
  • Overview Attributes
    • Device Presentation : cuttable
