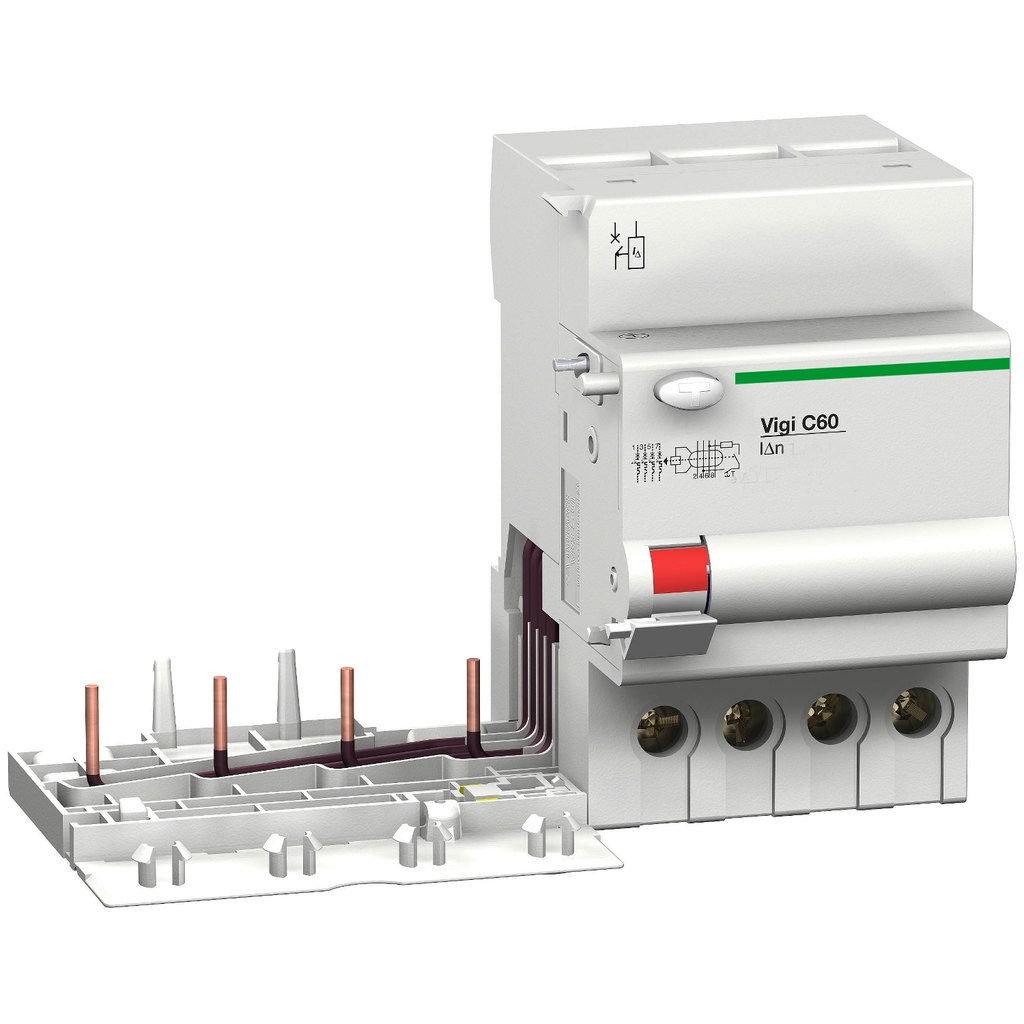

Add-on residual current device, Multi9 Vigi C60, 4P, 63A, AC type, instantaneous, 300mA, 400/415VAC

CB ACCESSORY, GROUND FAULT MO

SQDM9V14463 M9V14463 3606480684593
700.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-Add-on residual current device, Multi9 Vigi C60, 4P, 63A, AC type, instantaneous, 300mA, 400/415VAC-1
  • Warranty Length: 18 mth
This Vigi C60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 400VAC or 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The product color is light grey (RAL7035). The dimensions are (W) 63mm x (H) 87mm x (D) 74mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
QTY
  • Product Description
  • Specifications
This Vigi C60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 400VAC or 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The product color is light grey (RAL7035). The dimensions are (W) 63mm x (H) 87mm x (D) 74mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
  • Physical Attributes
    • Color : Gray
    • Wire Stripping Length : 14 mm for bottom connection
  • Conformance Attributes
    • Standards : EN/IEC 61009-1, EN/IEC 61009-2-1
  • Complementary Attributes
    • Line Rated Current : 63 A EN/IEC 61009-1
    • UE Rated Operational Voltage : 400/415 V AC 50 Hz
    • UI Rated Insulation Voltage : 500 V AC 50 Hz EN/IEC 61009-1
    • UIMP Rated Impulse Withstand Voltage : 4 kVEN/IEC 61009-1
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Range Compatibility : Multi9 Multi9 C60 C60N, Multi9 Multi9 C60 C60L, Multi9 Multi9 C60 C60H, Multi9 Multi9 C60 C60CTRL
    • Carbon Footprint Of The Distribution Phase A4 : 0.014582963340621827, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.016159786303129812
    • Carbon Footprint Of The Installation Phase A5 : 0.0013430999557131997, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.6881507700058839
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 120 kg CO2 eq., 120.26785714285714
    • Connections Terminals : tunnel type terminal bottom) 1-35 mm² - rigid, tunnel type terminal bottom) 1-25 mm² - flexible, tunnel type terminal bottom) 1-25 mm² - flexible with ferrule
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : Multi9 C60 XM Vigi
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : VIGI
    • H And D Enrichment Class 3 : Earth leakage protection devices
    • H And D Enrichment Class 4 : RCD add-on block
    • H And Dod Responsibility : Multi9
    • H And Dod Platform : RCD&Switches
    • Device Short Name : Vigi C60
    • Earth Leakage Protection Class : type AC
    • Earth Leakage Protection Time Delay : instantaneous
    • Earth Leakage Sensitivity : 300 mA EN/IEC 61009-1
    • Electrical Connection To MCB : by screws
    • Electromagnetic Compatibility : 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
    • Energy Efficiency Optimized : False
    • Network Type : AC
    • Package Weight Lbs : 255 g
    • Power Losses Per Pole : 3 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : add-on residual current device
    • Range : Multi9
    • Range Of Product : Multi9
    • Residual Current Tripping Technology : voltage independent
    • Returnability : No
    • Sustainable Packaging : No
    • Tightening Torque : 3.5-3.5 N.m bottom
    • Total Lifecycle Carbon Footprint : 121 kg CO2 eq.
    • Total Power Losses : 9 W
    • Tropicalisation : 2 IEC 60068-1
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1409017EN
    • Pep Verification Date : 2019-09-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 415V and rated current 25A ensuring isolation characterized by rated voltage 4kV. This function is provided for 20 years.
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • IP Degree Of Protection : IP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 120.9880937624625
    • 9 MM Pitches : 7
    • Ambient Air Temperature For Operation : -5-60 °C
    • Environmental Disclosure : ENVPEP1409017EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % 55-55 °C
    • Pep Code : ENVPEP1409017EN
    • Pep Verification Date : 2019-09-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : add-on residual current device
    • Range Of Product : Multi9
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
