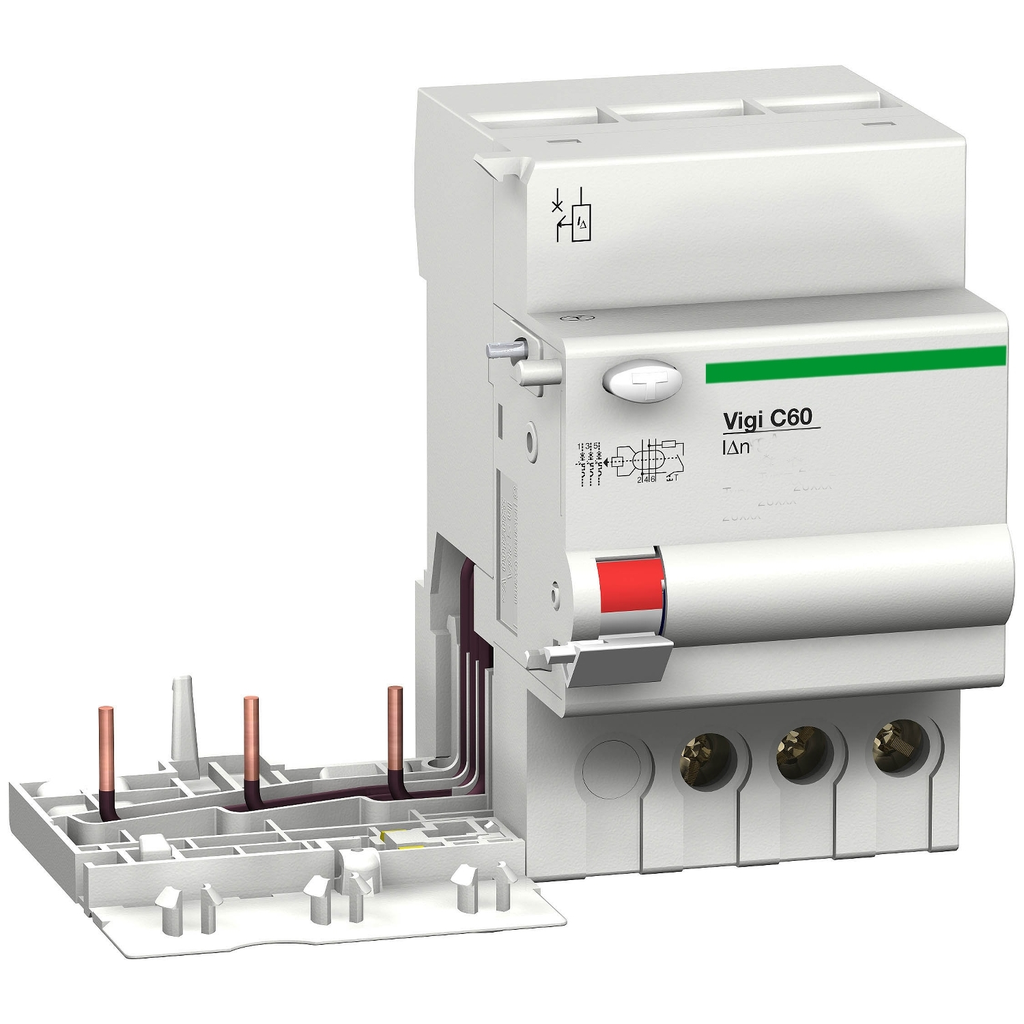

Multi9 - Vigi C60 - 3P - 63A - class AC - 230/400 V - 300mA

Multi9 - Vigi C60 - 3P - 63A - class AC - 230/400 V - 300mA

SQDM9V14363 M9V14363 360648068458
0.00 / EA
  • Amperage: 63 A
  • Country of Origin: France
  • Depth: 2.91 in, 74 mm
  • Height: 3.43 in, 87 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 61009-1, EN/IEC 61009-2-1
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 400/415 V
  • Warranty Length: 18 mth
  • Weight: 210 g, 7.41 oz
  • Width: 2.48 in, 63 mm
This Vigi C60 is a modular add-on residual current devices. It is a 3P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 400VAC or 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The product color is light grey (RAL7035). The dimensions are (W) 63mm x (H) 87mm x (D) 74mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
  • Product Description
  • Specifications
This Vigi C60 is a modular add-on residual current devices. It is a 3P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 400VAC or 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The product color is light grey (RAL7035). The dimensions are (W) 63mm x (H) 87mm x (D) 74mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
  • Ordering And Shipping Details
    • Country Of Origin : FR
    • Returnability : No
    • Discount Schedule : DE2
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 03606480684586
  • Main
    • Earth-Leakage Sensitivity : 300 mA EN/IEC 61009-1
    • Device Short Name : Vigi C60
    • Product Or Component Type : Add-on residual current devices
    • 9 mm Pitches : 7
    • Range Compatibility : Multi 9 C60 C60N || Multi 9 C60 C60L || Multi 9 C60 C60H || Multi 9 C60 C60CTRL
    • In Rated Current : 63 A EN/IEC 61009-1
    • Network Frequency : 50 Hz
    • Network Type : AC
    • Range : Multi 9
    • Poles Description : 3P
    • Earth-Leak Protect Time Delay : Instantaneous
    • Earth-Leakage Protection Class : Type AC
    • Ue Rated Operational Voltage : 400/415 V AC 50 Hz
  • Complementary
    • Local Signalling : Fault indication
    • Colour : Gray
    • Ui Rated Insulation Voltage : 500 V AC 50 Hz EN/IEC 61009-1
    • Tightening Torque : 30.98 lbf.in (3.5 N.m) bottom
    • Wire Stripping Length : 0.55 in (14 mm) bottom
    • Mounting Support : DIN rail
    • Product Weight : 7.41 oz (210 g)
    • Resid Current Tripping Techno : Voltage independent
    • Mounting Mode : Clip-on
    • Depth : 2.91 in (74 mm)
    • Uimp Rated Imp Wstd Voltage : 4 kVEN/IEC 61009-1
    • Connections - Terminals : Tunnel type terminal bottom) 0.00…0.05 in² (1…35 mm²) - rigid || Tunnel type terminal bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • Electrical Connection To Mcb : By screws
    • Height : 3.43 in (87 mm)
    • Width : 2.48 in (63 mm)
  • Environment
    • Pollution Degree : 3 IEC 61009
    • Tropicalisation : 2 IEC 60068-1
    • Ambient Air Temp For Op : 23…140 °F (-5…60 °C)
    • Electromagnetic Compatibility : 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
    • Ambient Air Temp For Storage : -40…140 °F (-40…60 °C)
    • Standards : EN/IEC 61009-1 || EN/IEC 61009-2-1
    • IP Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
    • Relative Humidity : 95 % 131 °F (55 °C)
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • Halogen Content Performance : Halogen free plastic parts product
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
  • Contractual Warranty
    • Warranty : 18 months
