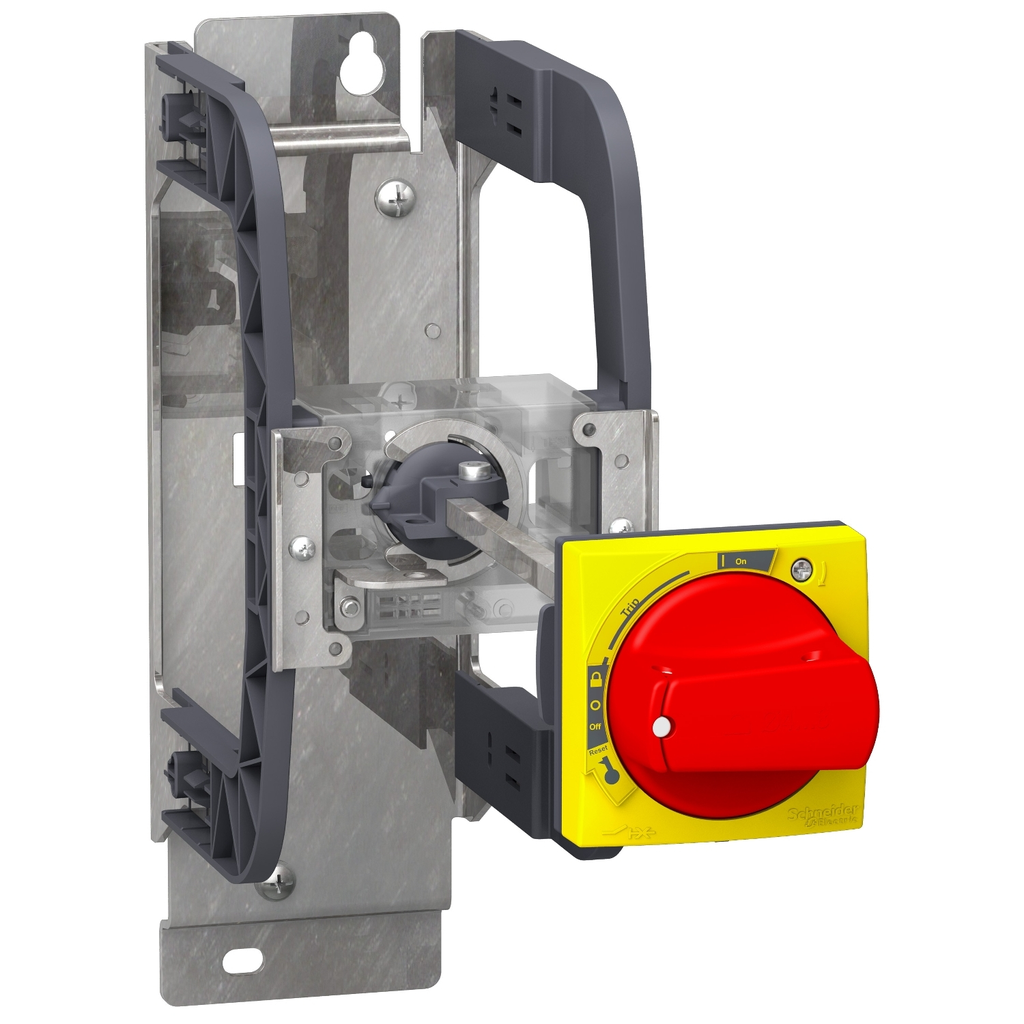

Mounting bracket kit with extended rotary handle, TeSys Ultra, IP54, red handle, with trip indication, for LUB

IP54 RED/YELLOW THRU DOOR OP-M

SQDLU9APN22 LU9APN22 3606480160981
185.68 / EA
http://schema.org/OutOfStock
  • Country of Origin: Czechia
  • Warranty Length: 18 mth
Mounting bracket kit designed for use with the TeSys Ultra. Mounting bracket kit with extended rotary handle. Compatible with uitable for use with LUB and Designed for applications requiring trip indication. IP54, providing protection against dust and wa
QTY
  • Product Description
  • Specifications
Mounting bracket kit designed for use with the TeSys Ultra. Mounting bracket kit with extended rotary handle. Compatible with uitable for use with LUB and Designed for applications requiring trip indication. IP54, providing protection against dust and wa
  • Physical Attributes
    • Handle Color : red
    • Handle Front Plate Color : yellow
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • ETIM 10 : EC000229
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • WEEE Applicability : Finished product
    • WEEE Scope : Out
    • Legacy WEEE Scope : Out
    • WEEE Exclusion Rationale : Product/component not in scope – not electric/electronic device
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2023
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : LU9
    • Device Short Name : LU9A
    • Energy Efficiency Optimized : False
    • Handle Color : red
    • Handle Front Plate Color : yellow
    • Locking Options Description : 1 to 3 padlocks
    • Package Weight Lbs : 917 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mounting bracket kit
    • Range : TeSys
    • Range Of Product : TeSys Ultra
    • Returnability : Yes
    • Rotary Handle Mounting Style : extended
    • Rotary Handle Padlocking : padlock in OFF position
    • Sustainable Packaging : No
    • Accessory Separate Part Category : control accessory
    • Relationshiptype : Compatible relationship
    • Accessories : GVAPL01
  • General Attributes
    • Product Or Component Type : mounting bracket kit
    • Range Of Product : TeSys Ultra
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61609077&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP54
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : LUB
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
