SQUARE D

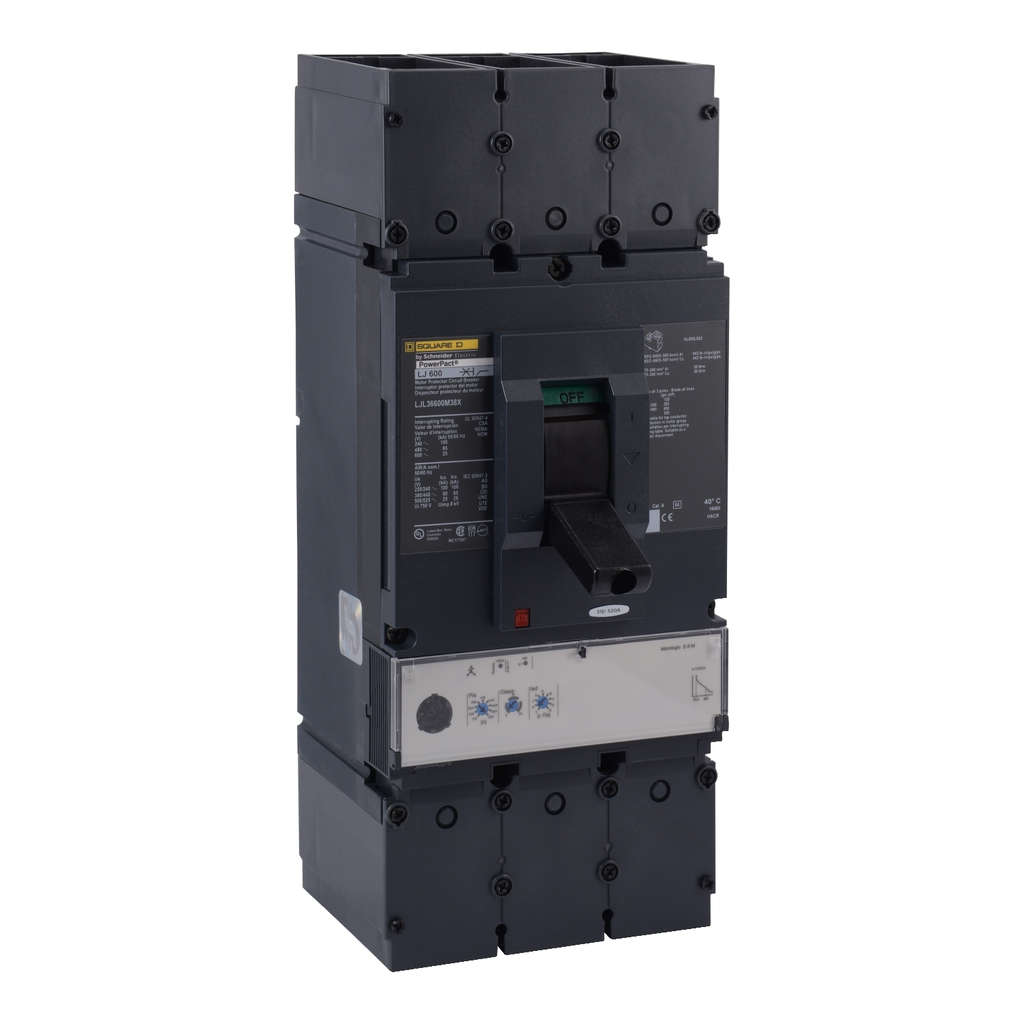

Motor curcuit protector, PowerPact L, unit mount, Micrologic 2.2M, 600A, 3 pole, 600 VAC, 25 kA

MOTOR CIRCUIT PROTECTOR 600V 6

SQDLJL36600M38X LJL36600M38X 785901853602
7460.90 / EA
  • Certifications: CCC, CE, CSA 22-2, IEC, NEMA, UL 508
  • Country of Origin: USA
  • Depth: 167.89 mm, 6.61 in
  • Height: 11.3 in, 287.02 mm
  • Line Rated Current: 600 A
  • Mounting Type: Unit Mount
  • Number of Poles: 3
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Width: 139.70 mm, 5.5 in
  • Specifications
  • Environment
    • Product Certifications : CSA 22-2 || CCC || IEC || CE || UL 508 || NEMA
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • Pvc Free : Yes
  • Main
    • Product Or Component Type : Motor Circuit Protector
    • Range Of Product : PowerPact L
    • Trip Unit Type : Electronic, standard, Micrologic 2.3 M,
    • Interrupt Code : J
  • Ordering And Shipping Details
    • GTIN : 00785901853602
    • Discount Schedule : DE2
    • Returnability : Yes
    • Country Of Origin : US
    • Category : 01116-L ELEC TRIP UNIT MOUNT BREAKER/SW
  • Complementary
    • Width : 5.5 in (139.70 mm)
    • Electrical Connection : Lugs load || Lugs line
    • Depth : 6.61 in (167.89 mm)
    • Protection Technology : Current limiter
    • Terminal Type : AL600LS52K3
    • Interrupt Rating : 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC
    • Line Rated Current : 600 A
    • Tightening Torque : 442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) AWG 2/0...500 kcmil)
    • Height : 11.3 in (287.02 mm)
    • Number Of Poles : 3P
    • Voltage Rating : 600 V AC
    • Wire Size : AWG 2/0...500 kcmil aluminium/copper)2
    • Mounting Mode : Unit mount
