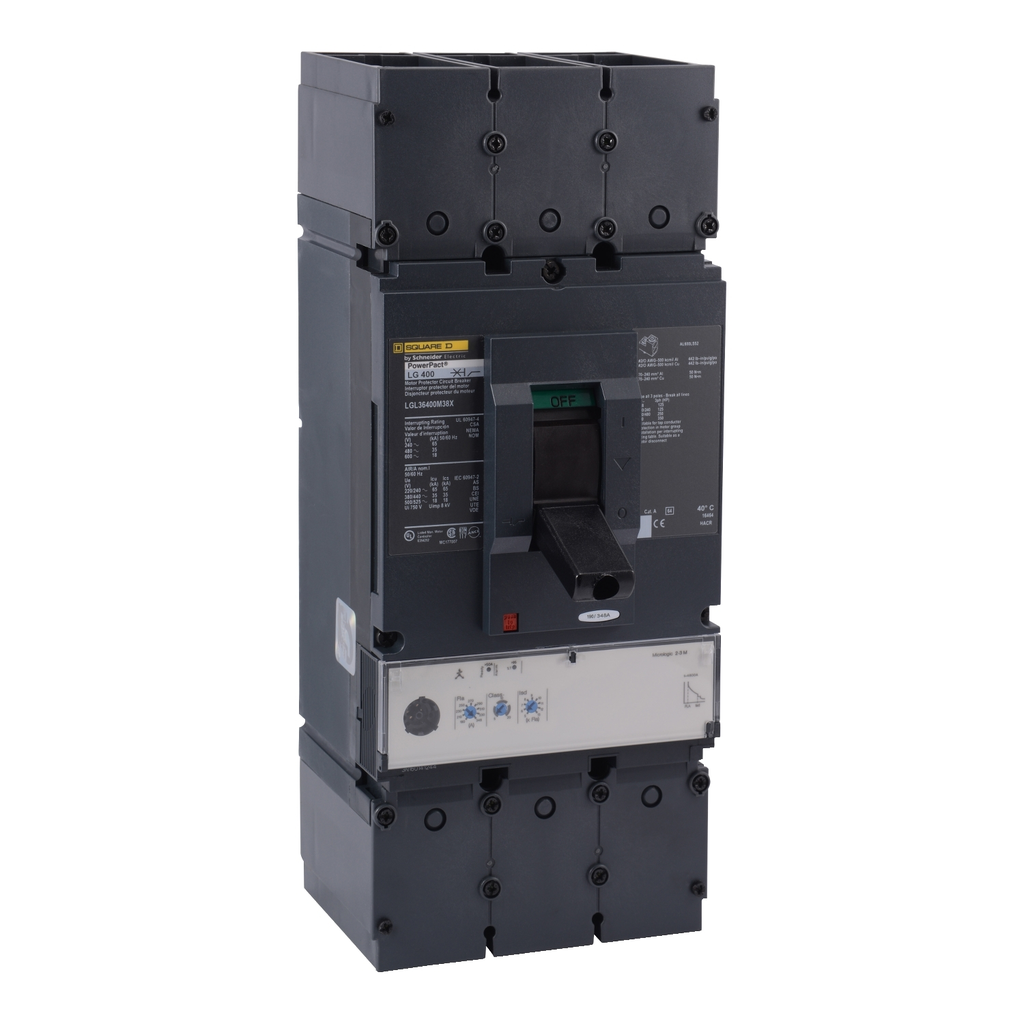

Motor curcuit protector, PowerPact L, unit mount, Micrologic 2.2M, 600A, 3 pole, 18 kA, 600 VAC,

Motor curcuit protector, PowerPact L, unit mount, Micrologic 2.2M, 600A, 3 pole, 18 kA, 600 VAC,

SQDLGL36600M38X LGL36600M38X 785901942849
7309.14 / EA
  • Certifications: CCC, CE, CSA 22-2, IEC, NEMA, UL 508
  • Country of Origin: USA
  • Depth: 167.89 mm, 6.61 in
  • Height: 11.3 in, 287.02 mm
  • Line Rated Current: 600 A
  • Mounting Type: Unit Mount
  • Number of Poles: 3
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Width: 139.70 mm, 5.5 in
The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only.
  • Specifications
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • Pvc Free : Yes
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
  • Ordering And Shipping Details
    • Returnability : Yes
    • GTIN : 00785901942849
    • Country Of Origin : US
    • Category : 01116-L ELEC TRIP UNIT MOUNT BREAKER/SW
    • Discount Schedule : DE2
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Wire Size : AWG 2/0...500 kcmil aluminium/copper)2
    • Width : 5.5 in (139.70 mm)
    • Electrical Connection : Lugs load || Lugs line
    • Voltage Rating : 600 V AC
    • Mounting Mode : Unit mount
    • Height : 11.3 in (287.02 mm)
    • Number Of Poles : 3P
    • Tightening Torque : 442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) AWG 2/0...500 kcmil)
    • Interrupt Rating : 65 kA 240 V AC || 35 kA 480 V AC || 18 kA 600 V AC
    • Line Rated Current : 600 A
    • Terminal Type : AL600LS52K3
    • Protection Technology : Current limiter
    • Depth : 6.61 in (167.89 mm)
  • Environment
    • Product Certifications : CSA 22-2 || CCC || IEC || CE || UL 508 || NEMA
  • Main
    • Product Or Component Type : Motor Circuit Protector
    • Range Of Product : PowerPact L
    • Trip Unit Type : Electronic, standard, Micrologic 2.3 M,
    • Options : Shunt trip 120 V AC
    • Interrupt Code : G
