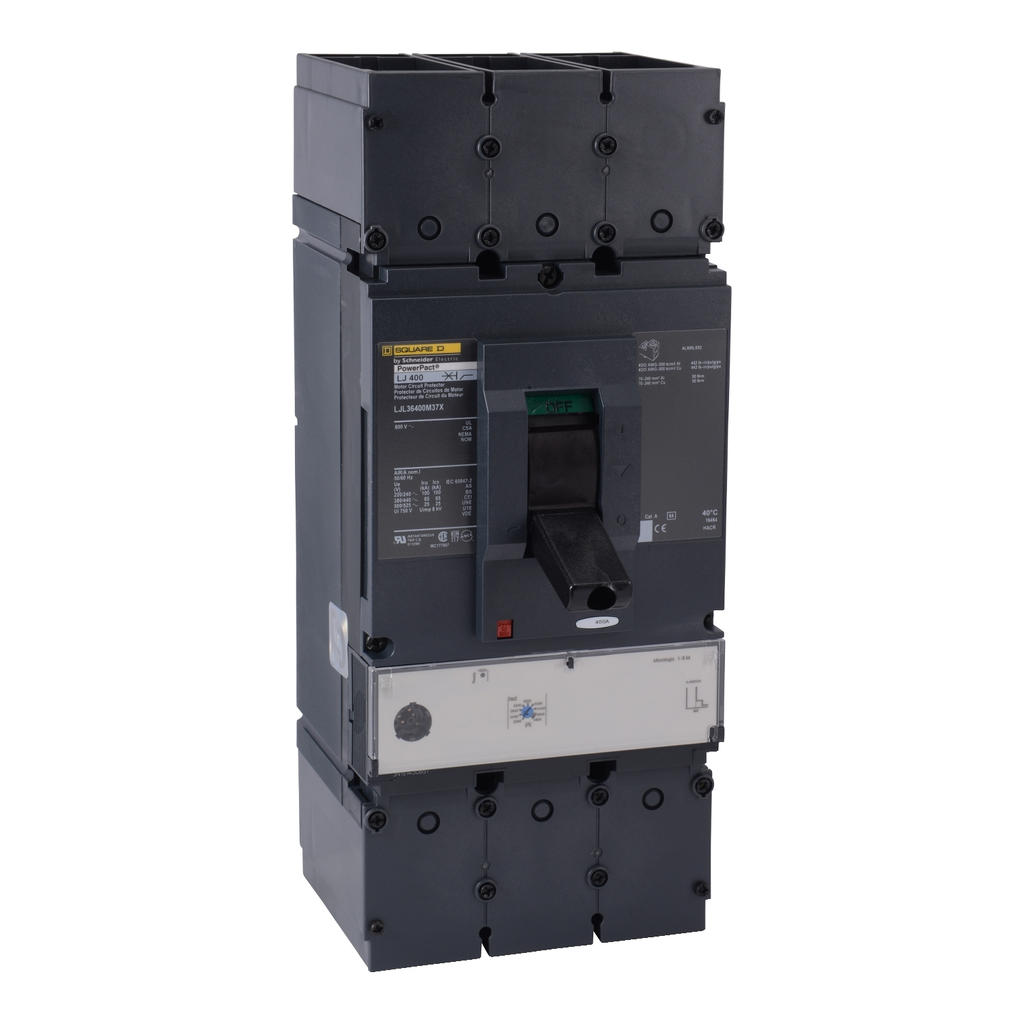

Motor circuit protector, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, lugs, MicroLogic 1.3M, 80%

MOTOR CIRCUIT PROTECTOR 600V 4

SQDLJL36400M37X LJL36400M37X 785901555285
5959.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-Motor circuit protector, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, lugs, MicroLogic 1.3M, 80%-1
  • Warranty Length: 18 mth
PowerPacT L-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. PowerPacT L-Frame motor circuit protectors are available with electronic trip units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the equivalent PowerPacT L circuit breaker. PowerPacT L protectors are available in 3 pole unit mount, I-Line, and plug in constructions. This PowerPacT L, 400A, 3 pole, MCP has an interrupting rating of 25kA at 600VAC. This protector provides MicroLogic with a 1.3M trip unit. This unit has lugs on both the line and load sides. This motor circuit protector has a continuous current rating of 80%. PowerPacT L motor circuit protectors comply to UL, CSA, and IEC standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT L-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. PowerPacT L-Frame motor circuit protectors are available with electronic trip units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the equivalent PowerPacT L circuit breaker. PowerPacT L protectors are available in 3 pole unit mount, I-Line, and plug in constructions. This PowerPacT L, 400A, 3 pole, MCP has an interrupting rating of 25kA at 600VAC. This protector provides MicroLogic with a 1.3M trip unit. This unit has lugs on both the line and load sides. This motor circuit protector has a continuous current rating of 80%. PowerPacT L motor circuit protectors comply to UL, CSA, and IEC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : Black
  • Conformance Attributes
    • Product Certifications : UL, CSA, NOM
  • Complementary Attributes
    • ICS Rated Service Breaking Capacity : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
    • UE Rated Operational Voltage : 600 V AC 50/60 Hz IEC 60947-3, 600 V AC 50/60 Hz IEC 60947-3, 600 V AC 50/60 Hz IEC 60947-3, 600 V AC 50/60 Hz IEC 60947-3
    • UI Rated Insulation Voltage : 750 V IEC 60947-2, 750 V IEC 60947-2
    • UIMP Rated Impulse Withstand Voltage : 8 kV IEC 60947-2, 8 kV IEC 60947-2
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : 2 x AWG 2/0...500 kcmil aluminium/copper, 2 x AWG 2/0...500 kcmil aluminium/copper
    • Electrical Connection : lugs, line, lugs, line, lugs, load, lugs, load
    • Local Signalling : ready 1 LED green), ready 1 LED green), ready 1 LED green), ready 1 LED green), switched off (OFF) 1 trip indicator green), switched off (OFF) 1 trip indicator green), switched off (OFF) 1 trip indicator green), switched off (OFF) 1 trip indicator green)
    • Mounting Mode : unit mount lug), unit mount lug)
    • Suitability For Isolation : yes IEC 60947-2, yes IEC 60947-2
    • Tightening Torque : 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil), 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil), 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
    • Trip Unit Technology : electronic, standard, MicroLogic 1.3 M, I, electronic, standard, MicroLogic 1.3 M, I, electronic, standard, MicroLogic 1.3 M, I, electronic, standard, MicroLogic 1.3 M, I
    • ICS Rated Service Breaking Capacity : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
    • Carbon Footprint Of The Distribution Phase A4 : 2.2569930987988642, 2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 12 kg CO2 eq., 11.826308742413065
    • Carbon Footprint Of The Installation Phase A5 : 2.177238913264462, 2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 50 kg CO2 eq., 50.309078639215976
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 740 kg CO2 eq., 739.5408504205822
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2206029_V2
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Short Name : L-Frame
    • Energy Efficiency Optimized : False
    • Magnetic Tripping Current : 500-1200 A
    • Package Weight Lbs : 7.81 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Motor Circuit Protector
    • Range : PowerPact
    • Returnability : Yes
    • Sustainable Packaging : No
    • Terminal Identifier : AL600LS52K3
    • Total Lifecycle Carbon Footprint : 806 kg CO2 eq.
    • Trip Unit Name : MicroLogic 1.3 M
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2206029EN
    • Pep Verification Date : 2027-02-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • IP Degree Of Protection : front cover IP40, front cover IP40
    • Operating Altitude : < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating, 5000 m with derating
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 806.1104698142746
    • Circularity Profile : ENVEOLI2206029_V2
    • Environmental Disclosure : ENVPEP2206029EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2206029EN
    • Pep Verification Date : 2027-02-25
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Motor Circuit Protector
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
