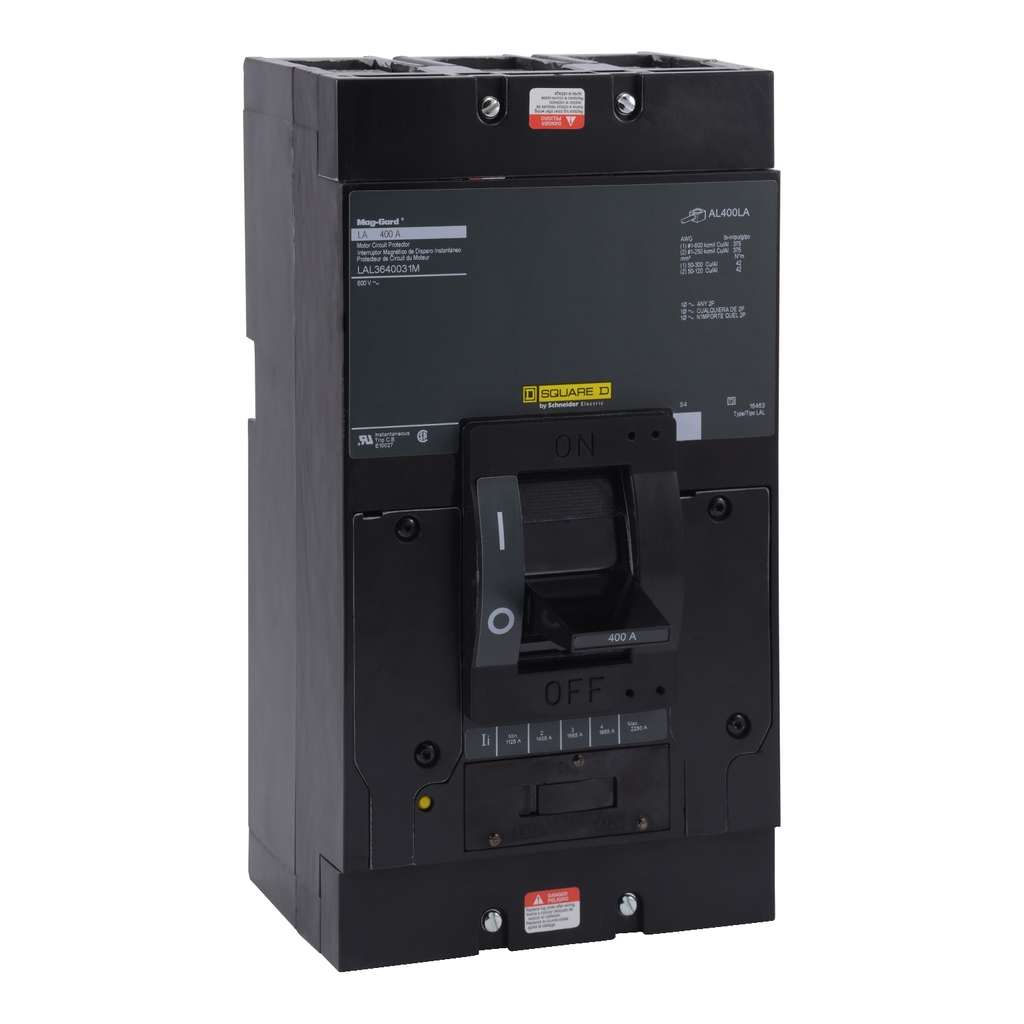

Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 400 A
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : lugs, load, lugs, line
• Tightening Torque : 13-13 N.m 42-304 mm² (AWG 1...600 kcmil), 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
• Certificate Agency : IEC, UL Listed, CSA
• Carbon Footprint Of The Distribution Phase [A4] : 2.228383327123949, 2 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 12 kg CO2 eq., 11.67639778652332
• Carbon Footprint Of The Installation Phase [A5] : 2.1496401101385745, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 50 kg CO2 eq., 49.671357924070975
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 739 kg CO2 eq., 739.3949682892573
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206029_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1906
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Magnetic Hold Current : 1125 A
• Magnetic Tripping Current : 2250-2250 A
• Mounting Mode : unit mount
• Number Of Poles : 3P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Motor Circuit Protector
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : Yes
• Terminal Identifier : AL400LA
• Total Lifecycle Carbon Footprint : 805 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Pep Code : ENVPEP2206029EN
• Database Version : 2024-01
• Pep Verification Date : 2028-05-07
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 58
• Height Nominal : 11 in
• Width Nominal : 6 in
• Halogen-free Status : Halogen free plastic parts product
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 7.480389 kg
• Take-back : No
• Warranty (In Months) : 18
• Environment Attributes Main
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 805.1207474371142
• Circularity Profile : ENVEOLI2206029_V2
• Environmental Disclosure : ENVPEP2206029EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2206029EN
• Pep Verification Date : 2028-05-07
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Motor Circuit Protector
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Depth : 5.84 in
