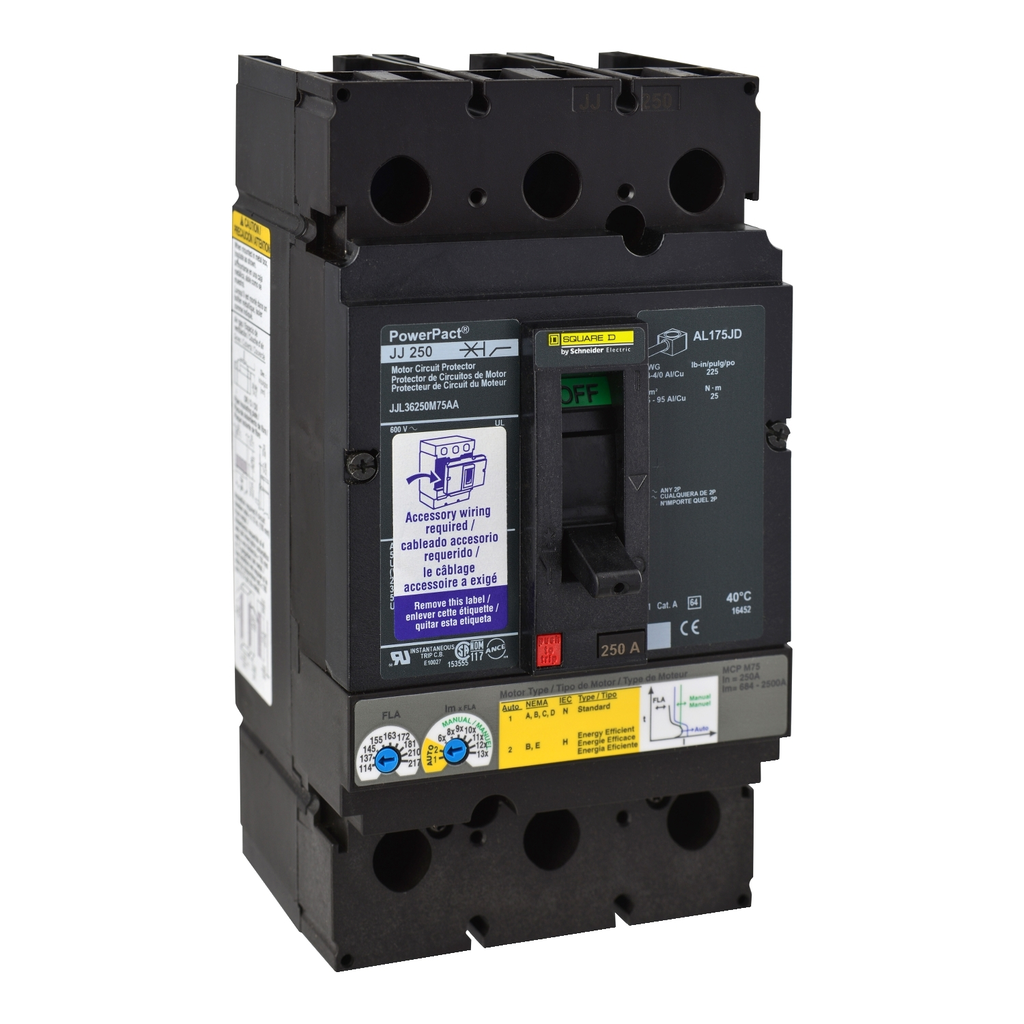

Motor circuit protector, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, magnetic only, aux

MOTOR CIRCUIT PROTECTOR 600V 2

SQDJJL36250M75AA JJL36250M75AA 785901865025
3495.12 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Motor circuit protector, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, magnetic only, aux-1
  • Depth: 86 mm
  • Warranty Length: 18 mth
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 1A/1B auxiliary switch. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 1A/1B auxiliary switch. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
  • Features
    • Available in 2 or 3 pole design
    • Overcurrent protection and switching on AC systems
    • Common accessories across the range
    • Easy to install, extremely versatile, a wide variety of terminal options
    • UL 489 Listed, CSA, NOM, IEC CCC, UKCA, and CE marked
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Interface : Modbus
  • Physical Attributes
    • Wire Stripping Length : 25 mm
  • Conformance Attributes
    • Product Certifications : UL, CSA, NOM
    • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Complementary Attributes
    • Line Rated Current : 250-250 A
    • Long Time Pick Up Adjustment Range : 0.25...1 x In
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Connection : lugs, line, lugs, load
    • Number Of Slots : 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
    • Protection Type : overload protection, short-circuit protection
    • Ics Rated Service Breaking Capacity2 : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
    • Carbon Footprint Of The Distribution Phase A4 : 0.6554238601889661, 0.7 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 3.8687571226078603
    • Carbon Footprint Of The Installation Phase A5 : 0.009651929011281793, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 13 kg CO2 eq., 12.77614809696986
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 533 kg CO2 eq., 533.4081683607691
    • Ics Rated Service Breaking Capacity5 : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2206031_V2
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 3/0...350 kcmil aluminium/copper terminals
    • Continuous Current Rating : 80 %
    • Control Type : toggle
    • Energy Efficiency Optimized : False
    • Local Signalling : switched off (OFF) 1 trip indicator green)
    • Long Time Pick Up Adjustment Range : 0.25...1 x In
    • Magnetic Hold Current : 1250 A
    • Magnetic Tripping Current : 2500-2500 A
    • Mounting Mode : unit mount lug)
    • Mounting Support : lug
    • Network Frequency : 50/60 Hz
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Motor Circuit Protector
    • Quality Labels : CE
    • Returnability : No
    • Suitability For Isolation : yes IEC 60947-2
    • Sustainable Packaging : No
    • Terminal Identifier : AL250JD
    • Tightening Torque : 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
    • Total Lifecycle Carbon Footprint : 551 kg CO2 eq.
    • Trip Unit Technology : thermal-magnetic
    • Utilisation Category : category A
    • Ith Conventional Free Air Thermal Current2 : 117-217 A
    • Ue Rated Operational Voltage2 : 600 V AC 50/60 Hz IEC 60947-3
    • Ui Rated Insulation Voltage2 : 750 V IEC 60947-2
    • Uimp Rated Impulse Withstand Voltage2 : 8 kV IEC 60947-2
    • Accessory Separate Part Type2 : auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
    • Medium Desc : Motor circuit protector, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, magnetic only, aux
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2206031EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-05-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model Installation A5 2 : [A5]
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : [C1 - C4]
    • Global Commercial Status : Commercialised
    • Accessory Separate Part Type3 : auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
    • Ue Rated Operational Voltage5 : 600 V AC 50/60 Hz IEC 60947-3
    • Ui Rated Insulation Voltage5 : 750 V IEC 60947-2
    • Uimp Rated Impulse Withstand Voltage5 : 8 kV IEC 60947-2
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • Operating Altitude : < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 550.7181493695471
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -50-85 °C
    • Circularity Profile : ENVEOLI2206031_V2
    • Environmental Disclosure : ENVPEP2206031EN
    • IP Degree Of Protection : front cover IP40
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2206031EN
    • Pep Verification Date : 2025-05-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Motor Circuit Protector
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 86 mm
